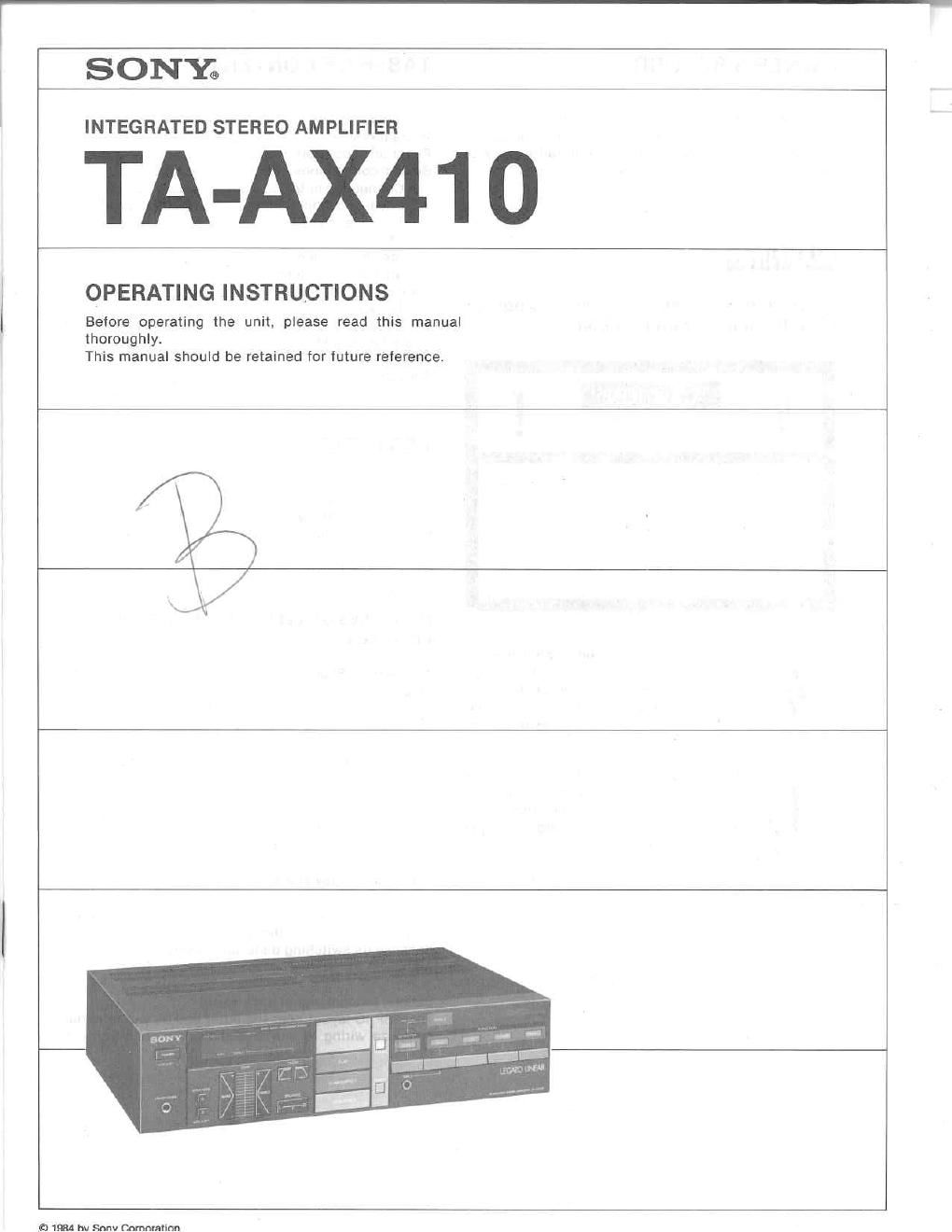

sony ta ax 410 owners manual

Extracted text from sony ta ax 410 owners manual (Ocr-read)


Page 2

OWNERS RECORD

The model and serial numbers are located at the rear.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your
Sony dealer regarding this product.

Model NO. TA-AX410

To prevent fire or shock- hazard, do not ex-
pose the unit to rain or moisture.

Serial No.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION ' TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)
NO USERSERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol is intended to alert the user
to the presence of uninsuiated
dangerous voltage within the products
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.

This symbol is intended to alert the user
to the presence of important operating
and mainteance (servicing) instructions in
the iiterature accompanying the appl-
iance.

TABLE OF CONTENTS

Features ............................................................................
Precautions ............
Function of controls.
System connections.
Connection notes .....
Speaker connection.
Enhanced system-up connections.
AC outlets
To listen to program sources
To listen to a taped program.
Tape recording and tape copy ..
To record...
To copy ......
To set the acoustic settings.
Trouble checks...
Specifications

mmwwmmuawn


FEATURES

The TA-AX410 integrated stereo amplifier incorporates a
number of technical breakthroughs in circuit design to
take full advantage of new digital sources such as the
CD (compact disc), with a power output of 50 + 50 watts
(20 Hz - 20 kHz, 0.008% THD).

MAJOR DESIGN ELEMENTS AND CIRCUIT
FEATURES

ASP (Audio Signal Processor) lC
stage

The Audio Signal Processor IC developed by Sony can
digitally control the tone, filter and volume settings. The
ASP IC also permits electronic program source selec-
tion. Mechanical controls and switches have been prac-
tically eliminated from the front panel. In combination
with a microcomputer and a non-volatile memory IC, the
ASP IC offers greater flexibility - an Acoustic Func-
tion, an ability to store and recall two sets of tonal
adjustments.

in the preamplifier

Legato linear power amplifier stage

The operation of the power amplifier stage is stable
without any observable distortion up through the higher
frequencies. We call this power amp Legato Linear"
because its switching distortion is very low and its out-
put waveform smooth.

Simple, straight signal path layout

The ASP lC layout near the input and output terminals
minimize wiring losses and allow low distortion ope-
ration.
