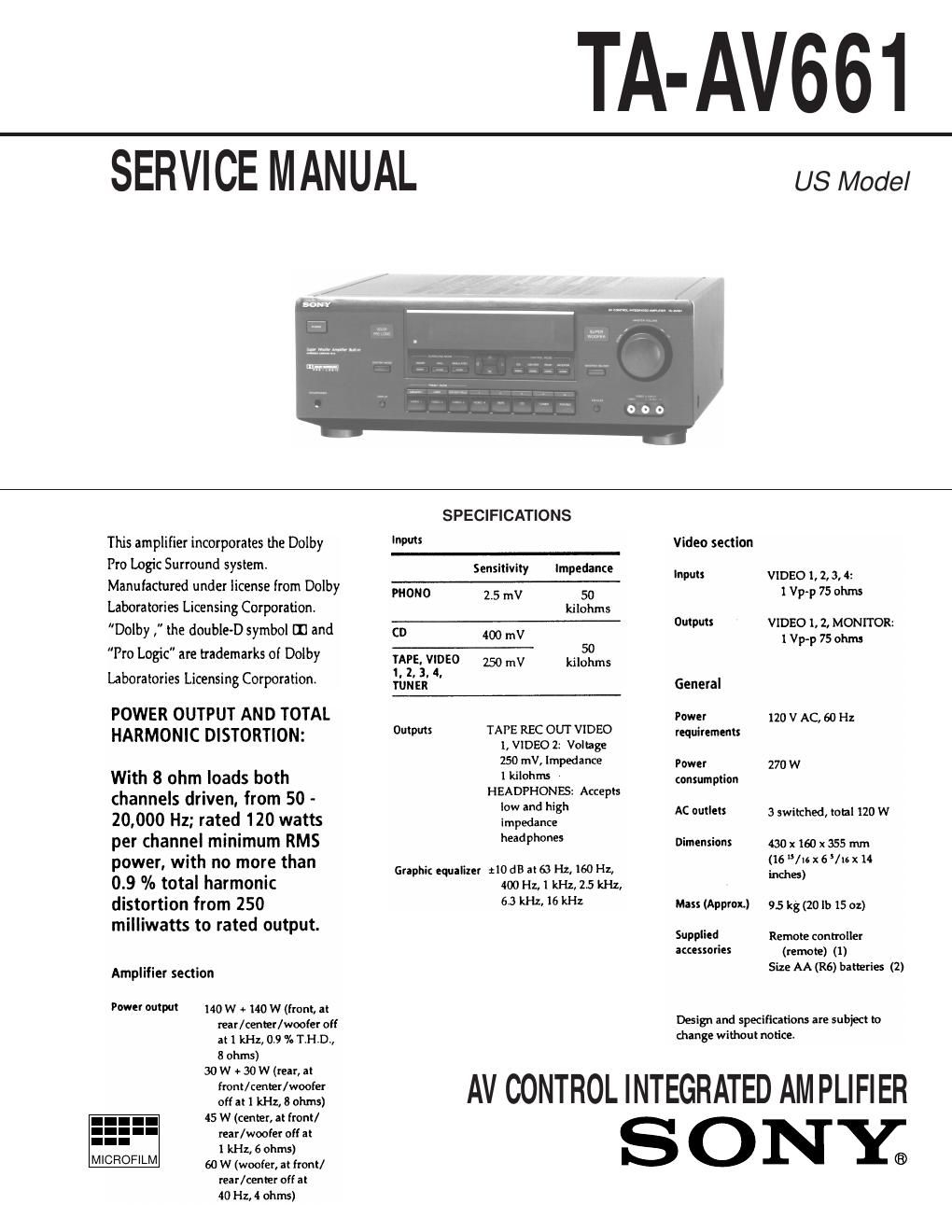

Sony ta av 661 service manual
This is the 22 pages manual for sony ta av 661 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ta av 661 service manual (Ocr-read)
Page 1
Ñ 2 Ñ TABLE OF CONTENTS Section Title Page SECTION 1.GENERAL ...................................................... 3 SECTION 2. DIAGRAMS 2-1. Circuit Boards Location ..................................................... 4 2-2. Printed Wiring Board Ñ Display Section Ñ ..................... 6 2-3. Schematic Diagram Ñ Display Section Ñ ........................ 9 2-4. IC Pin Function ¥ IC401 System Control (µPD78043AGF-033-3B9) ........ 12 2-5. Schematic Diagram Ñ Main Section Ñ .......................... 13 2-6. Printed Wiring Board Ñ Main Section Ñ ....................... 17 SECTION 3. EXPLODED VIEWS 3-1. Front Panel Section .......................................................... 21 3-2. Back Panel Section ........................................................... 22 3-3. Chassis Section ................................................................. 23 SECTION 4. ELECTRICAL PARTS LIST .................. 24 SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. To Exposed MetalParts on Set 0.15µF 1.5kAC voltmeter(0.75V) Earth Ground SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. [Lighting of all FLs and LEDs] While pressing 3 button, connect the power supply plug to the outlet, the FL tubes and LEDs light up. [Key Check] With all the FLs and LEDs lit, when the 3 button and WOOFER ON/OFF button are pressed simultaneously, ÒSET **Ó is displayed. When the 3 button and WOOFER ON/OFF button are pressed simultaneously again, the Key Check mode is set and ÒKEY 0Ó is displayed. Each time a button other than POWER is pressed, the display will count up to ÒKEY 30Ó. A button already pressed will not be counted when pressed again. When the button is pressed for the 31st time, ÒAMPÓ is displayed and the key check mode is ended. Note: The ** of ÒSET **Ó differs according to the version of the microprocessor. To exit the test mode, press the POWER button. ¥ Abbreviation FL : Fluorescent Indicator Tube
Page 2
Ñ 3 Ñ SECTION 2GENERAL FRONT PANEL This section is extracted from instruction manual. REAR PANEL 12345 6 789!¼ !Á !ª !£ !¢ !° !¤ !¦ !¥ !» @¼ @Á @ª @£ @¢ !£PRESET MODE buttons (MEMORY, USER, SOUND FIELD) !¢ VIDEO 1 button !° VIDEO 2 button !¤ VIDEO 3 button !¦ VIDEO 4 button !¥ TAPE button !» CD button @¼ TUNER button @Á PHONO button @ª EQ FLAT button @£ WOOFER ON/OFF button @¢ VIDEO 4 INPUT jack (VIDEO, AUDIO L/R) 1 POWER button 2 CENTER MODE button 3 DOLBY PRO LOGIC indicator 4 SURROUND MODE buttons (DOLBY, HALL, SIMULATED) 5 / /¢ /Ý / button 6 Display Window 7 CONTROL MODE buttons (EQ, CENTER, REAR, WOOFER) 8 Numeric buttons (1-5) 9 SUPER WOOFER indicator !¼ MASTER VOLUME knob !Á HEADPHONES jack !ª DISPLAY button
