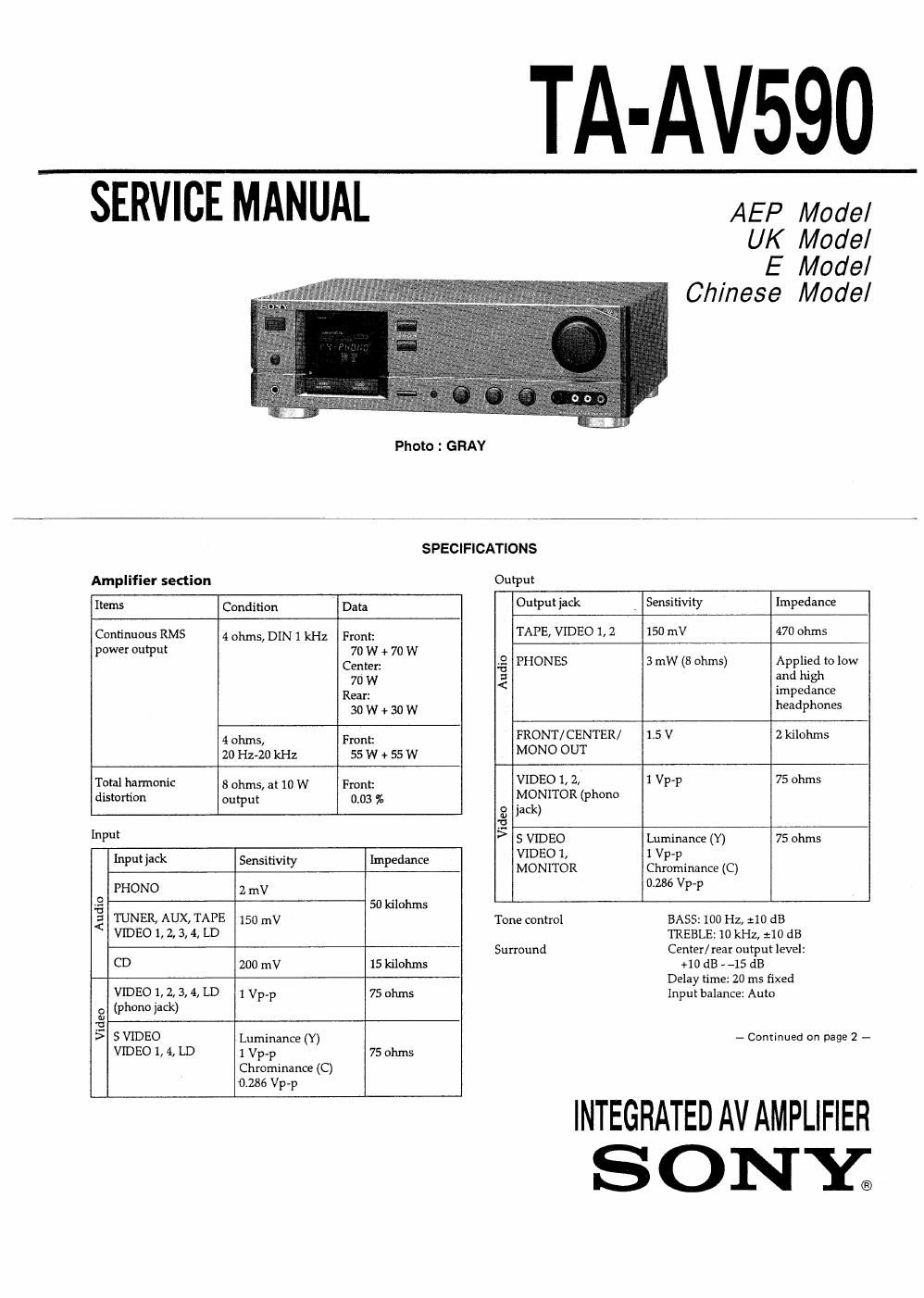

sony ta av 590 service manual

Extracted text from sony ta av 590 service manual (Ocr-read)


Page 2

General

Power requirements
220- 230V AC, 50/60Hz
UK model :
230V AC, 50/60Hz
E model :

AEP, German. Chinese, Singapore model :

120. 220 or 240 V AC adjustable, 50/60Hz

Power consumption 280 W
AC outlet (except for UK model)

One Switched, less than 100 W

Dimensions Approx. 430 x 135 x 360 mm
(w/ h/ cl)
(17 x 5 3/l x 14 l inches)
Mass

Approx 10 kg (22 lb] oz)
Remote commander RM-P590 (1)
Sony batteries SUM-3 (NS) (2)

Supplied accessories
Design and specifications are subject to change wiihout notice

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY MARK A OR DOI'IED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

TABLE OF CONTENTS
Section Title Page
Specifications ............................................................... 1
1. GENERAL ............................................................. 3
2. EXPLANATION OF IC TERMINALS ------------------------- 6
3. DIAGRAMS

MODEL IDENTIFICATION

(Specification Label)

3-1. Circuit Boards Location---
3-2. Printed Wiring Boards-
3-3. Schematic Diagram-1
3-4. Schematic Diagram-2
3-5. Printed Wiring Boards-2 -


. EXPLODED VIEWS
4.1 Front Panel Section ........................................... 27
4.2 Chassis Section ................................................ 23
ELECTRICAL PARTS LIST ................................... 29

SONYo

MODEL NO» TA-AV590

INTEGRATED AV AMPLIFIER

UK model

AEP, German, Chinese,

Singapore model
E model

: AC 230V~50I60HZ

: AC 220~230V~50l60HZ
1 AC 120, 220, 240V~50l60HZ
