sony ta 4300

Extracted text from sony ta 4300 (Ocr-read)

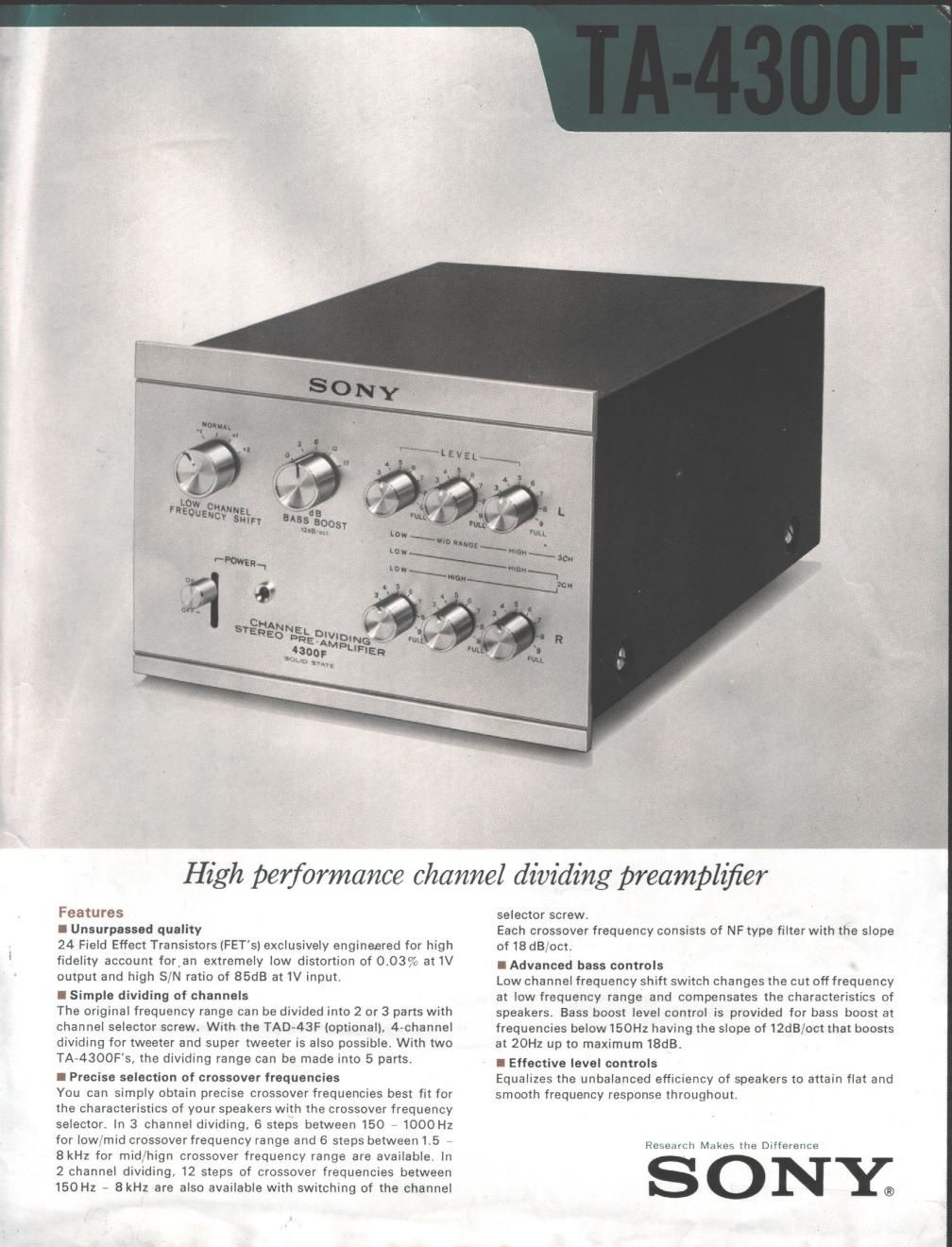

Page 1

High performance channel dividing preamplifier

Features

I Unsurpassed quality

24 Field Effect Transistors (FETs) exclusrvely engineered for high
fidelity account for an extremely low distortion of 0.03:1 at 1V
output and high S/N ratio of 85dB at 1V input

I Simple dividing of channels

The original frequency range can be divided into 2 or 3 parts with
channel selector screw. With the TAD»43F (optional), 4rchanne|
dividing for tweeter and super tweeter is also possible. With two
TA-4300Fs, the dividing range can be made Into 5 parts.

I Precise selection of crossover frequencies

You can simply obtain precise crossover frequencies best fit for
the characteristics of your speakers with the crossover frequency
selector in 3 channel dlvrdlng, 6 steps between 150 lOOOHr
for towfmrd crossover frequency range and 6 steps between 1.5
8kHz for mid hlgn crossover frequency range are available in
2 channel dividing, 12 steps of crossover frequencies between
150 Hz 8 kHz are also available With swttchmg of the channel

selector screw.

Each crossover frequency consrsts of NF type filter with the slope
of 18dBroct,

I Advanced bass controls

Low channel frequency shift switch changes the cut off frequency
at low frequency range and compensates the characteristics of
speakers. Bass boost level control is provided for bass boost at
frequencies below lSOHz having the slope of lZdBoct that boosts
at 20H: up to maximum 18dB.

l Effective level controls

Equalizes the unbalanced efficiency of speakers to attain flat and
smooth frequency response throughout.

Resemrl: Mnsz lhe Urlievexlre

SONY;
