Sony ta 3650 amp service manual

This is the 15 pages manual for sony ta 3650 amp service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 15
sony ta 3650 amp service manual

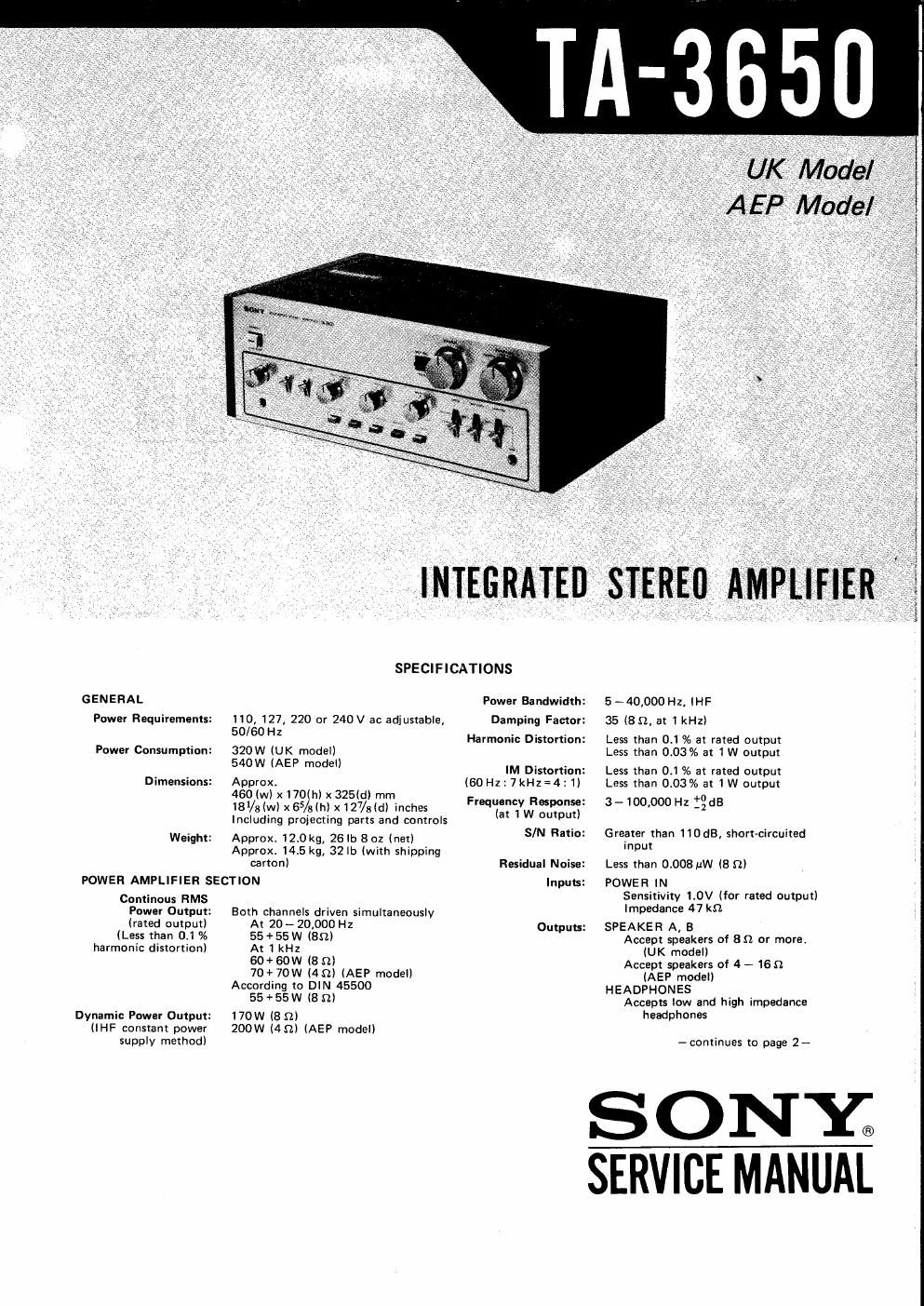

Extracted text from sony ta 3650 amp service manual (Ocr-read)


Page 1

GENERAL

Power Requirements:
Power Consumption:

Dimensions:

Weight:

III-3650

SPECIFICATIONS

110, 127, 220 or 240V ac adjustable,
50/60 Hz

320W iUK model)
540W (AEP model)

Approx.

460 (w) x 170(h) x 325(d) mm

181/3 (w) x65/aih) x 127/aid) inches
Including proiecting parts and controls

Approxt 12.0 kg, 26Ib Soz (net)

Approx. 14.5 kg, 32.) (with shipping
carton)

POWER AMPLIFIER SECTION

Continous RMS

Power Output:

(rated output)
(Less than 0,1 %
harmonic distortion)

Dynamic Power Output:

(IHF constant power
supply method)

Both channels driven simultaneously

At 20 -- 20,000 Hz

55+55W (80)

At 1 kHz

60+60W (8 n)

70+7OW (4 n) (AEP model)
According to DIN 45500

55+55W (B n)

170W (8 9)
200W (4(2) (AEP model)

Power Bandwidth:
Damping Factor:
Harmonic Distortion:

IM Distortion:

(60Hz:7kHz=4:1)

Frequency Response:

(at 1W output)

SIN Ratio:

Residual Noise:
Inputs:

Outputs:

5-40.000Hz, iHF
35 (89. at 1 kHz)

Less than 0.1 % at rated output
Less than 0.03% at 1 W output

Less than 0.1 % at rated output
Less than (103% at 1 W output

3- 100,000 Hz fgda

Greater than 110dB, short-circuited
input

Less than 0.008 51W (3 0)

POWER IN
Sensitivity 1.0V (for rated output)
Impedance 47 km

SPEAKER A, B
Accept speakers of 8!) or more.
(UK model)
Accept speakers of 4 - 16S}
(AEP model)
HEADPHONES
Accepts low and high impedance
headphones

- continues to page 2-

SONY;
SERVICE MANUAL
