Sony sx js 5 service manual
This is the 4 pages manual for sony sx js 5 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony sx js 5 service manual (Ocr-read)

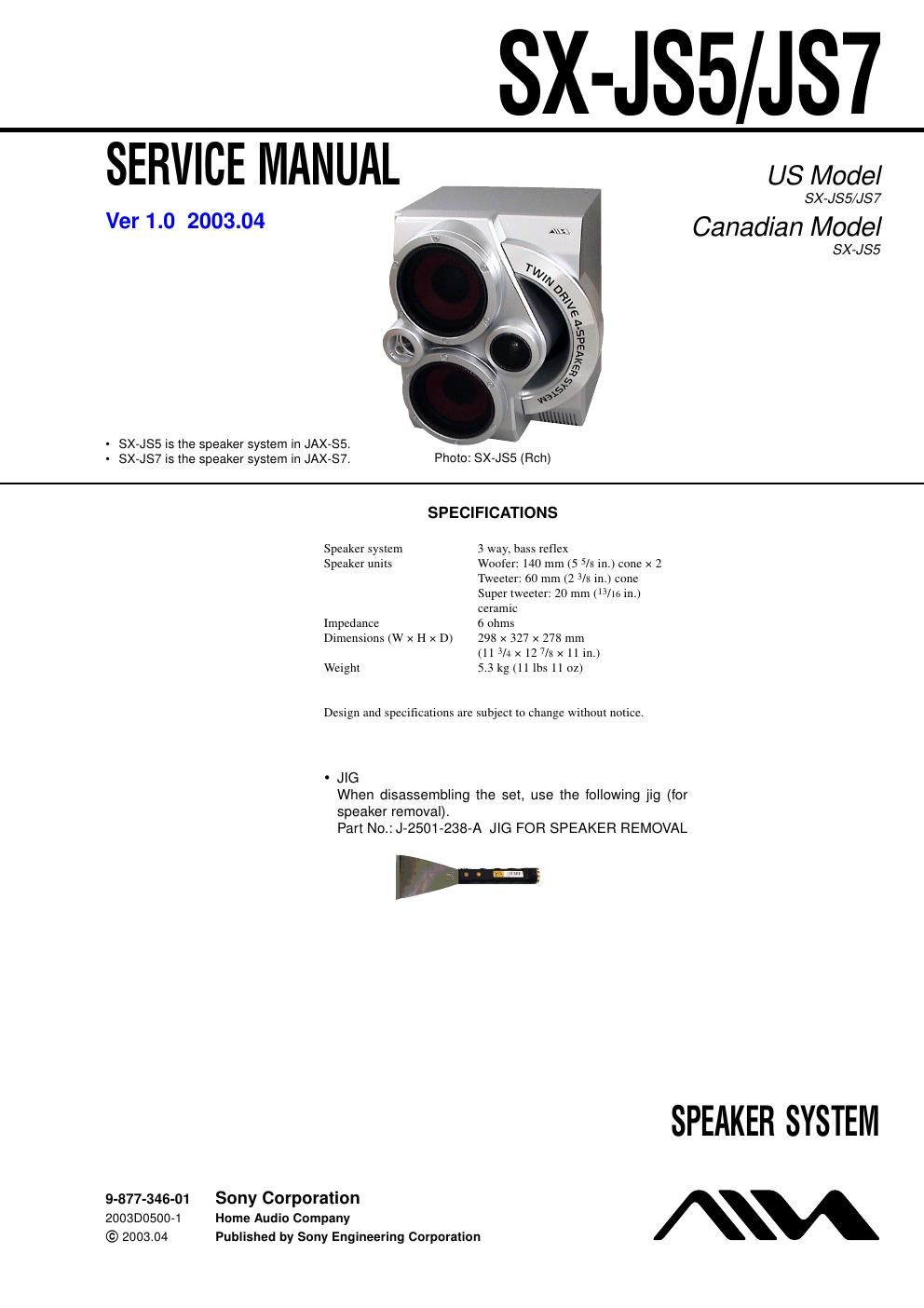

Page 1
2 SX-JS5/JS7 EXPLODED VIEW Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1A-4737-438-A SYSTEM (L) ASSY (Lch) 1A-4737-439-A SYSTEM (R) ASSY (Rch) 24-249-280-01 CAP, CERAMIC SP1 1-825-519-11 SPEAKER (14cm)SP2 1-825-400-11 SPEAKER (CERAMIC) (2cm) SP3 1-825-520-11 SPEAKER (14cm) SP4 1-825-399-11 SPEAKER (6cm) -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. -The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: --XX and -X mean standardized parts, so they may have some difference from the original one. -Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color 2 1 Note: This set is the figure of Rch set. not suppliednot supplied not supplied not suppliednot supplied not supplied SP1 SP2 SP3 SP4
