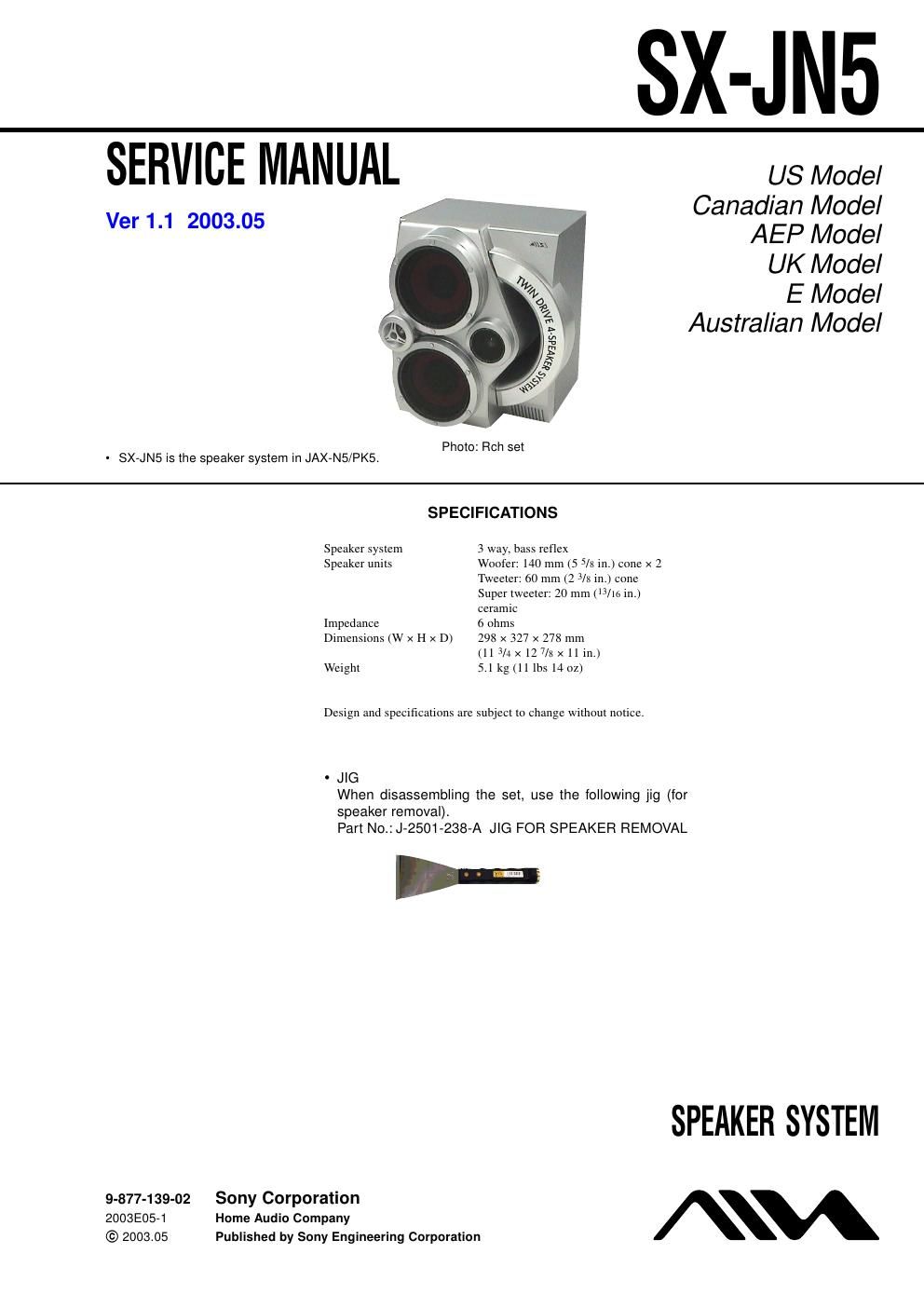

SX-JN5 EXPLODED VIEW Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1A-4737-154-A SYSTEM (L) ASSY (Lch) (EXCEPT AEP, UK, E) 1 A-4737-155-A SYSTEM (R) ASSY (Rch) (EXCEPT AEP, UK, E) 1 A-4740-417-A SYSTEM (L) AASY (Lch) (AEP, UK, E) 1 A-4740-418-A SYSTEM (R) ASSY (Rch) (AEP, UK, E) 2 4-249-280-01 CAP, CERAMIC SP1 1-825-398-11 SPEAKER (14cm) SP2 1-825-400-11 SPEAKER (CERAMIC) (2cm) SP3 1-825-401-11 SPEAKER (14cm) SP4 1-825-399-11 SPEAKER (6cm) - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color 2 1 Note: This set is the figure of Rch set.not supplied not supplied not supplied not supplied not supplied not supplied SP1 SP2 SP3 SP4 Ver 1.1
