Extracted text from sony sx bk 1 service manual (Ocr-read)

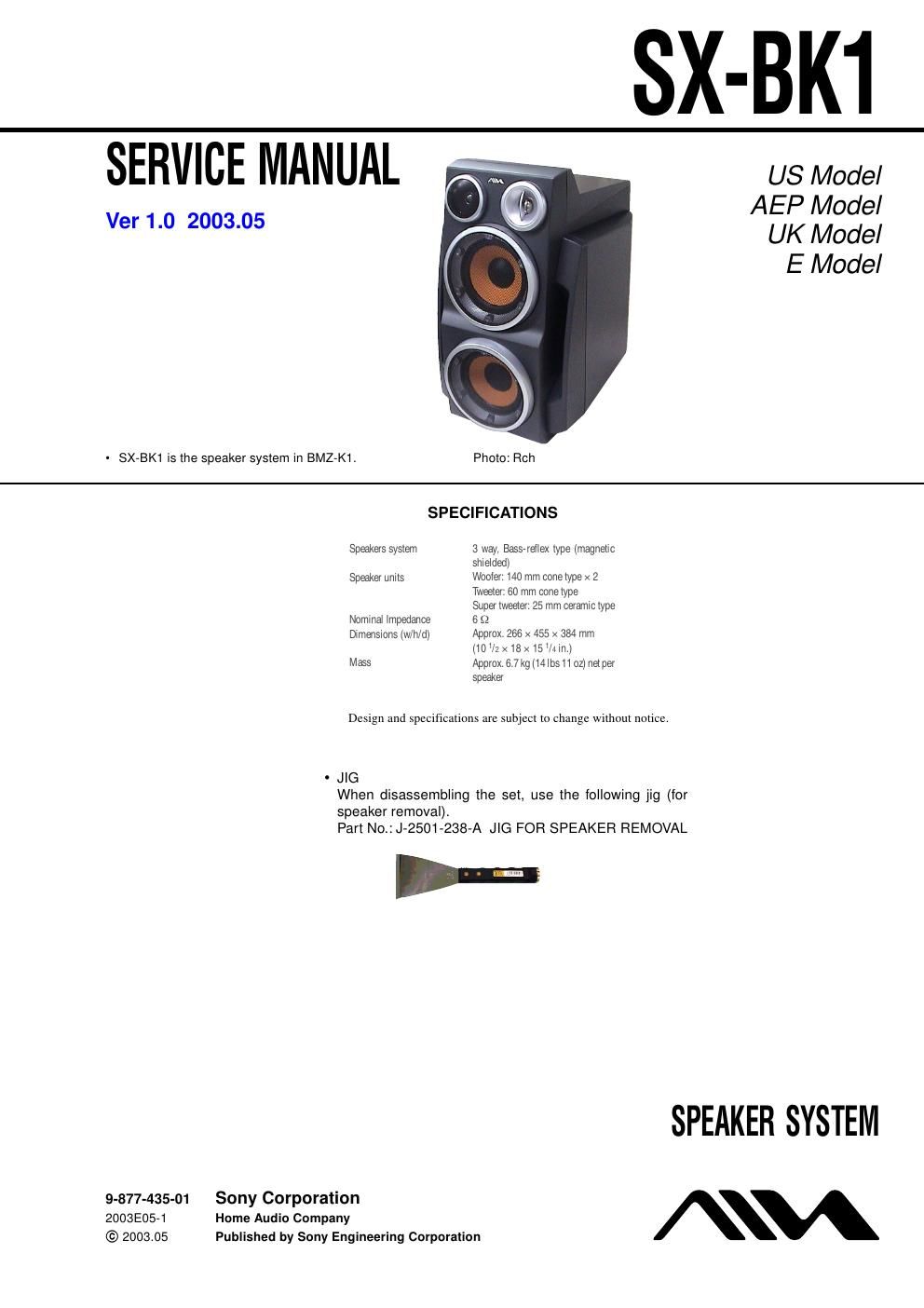

Page 1
2 SX-BK1 not supplied 1 2 3 4 5 5 6 6 7 7 8 9 9 4 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied SP1 SP2 SP3 SP4 EXPLODED VIEW Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 14-245-964-11 EMBLEM (27.5), AIWA 2 4-248-369-01 PANEL, FRONT 3 4-248-371-01 PANEL, TOP 4 4-248-370-01 PANEL, SIDE 5 4-248-377-01 FOOT 6 4-248-381-01 NET (SIDE), DUCT 7 4-248-382-01 COVER, SCREW - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color 8A-4739-631-A PANEL ASSY, TW 9 A-4739-630-A RING ASSY, WF SP1 1-825-551-11 SPEAKER (6cm) SP2 1-825-604-11 SPEAKER (CERAMIC) (2.5cm) SP3 1-825-552-11 SPEAKER (14cm) SP4 1-825-553-11 SPEAKER (14cm) Note: This is the figure of Rch set.
Page 2
3 SX-BK1 MEMO
