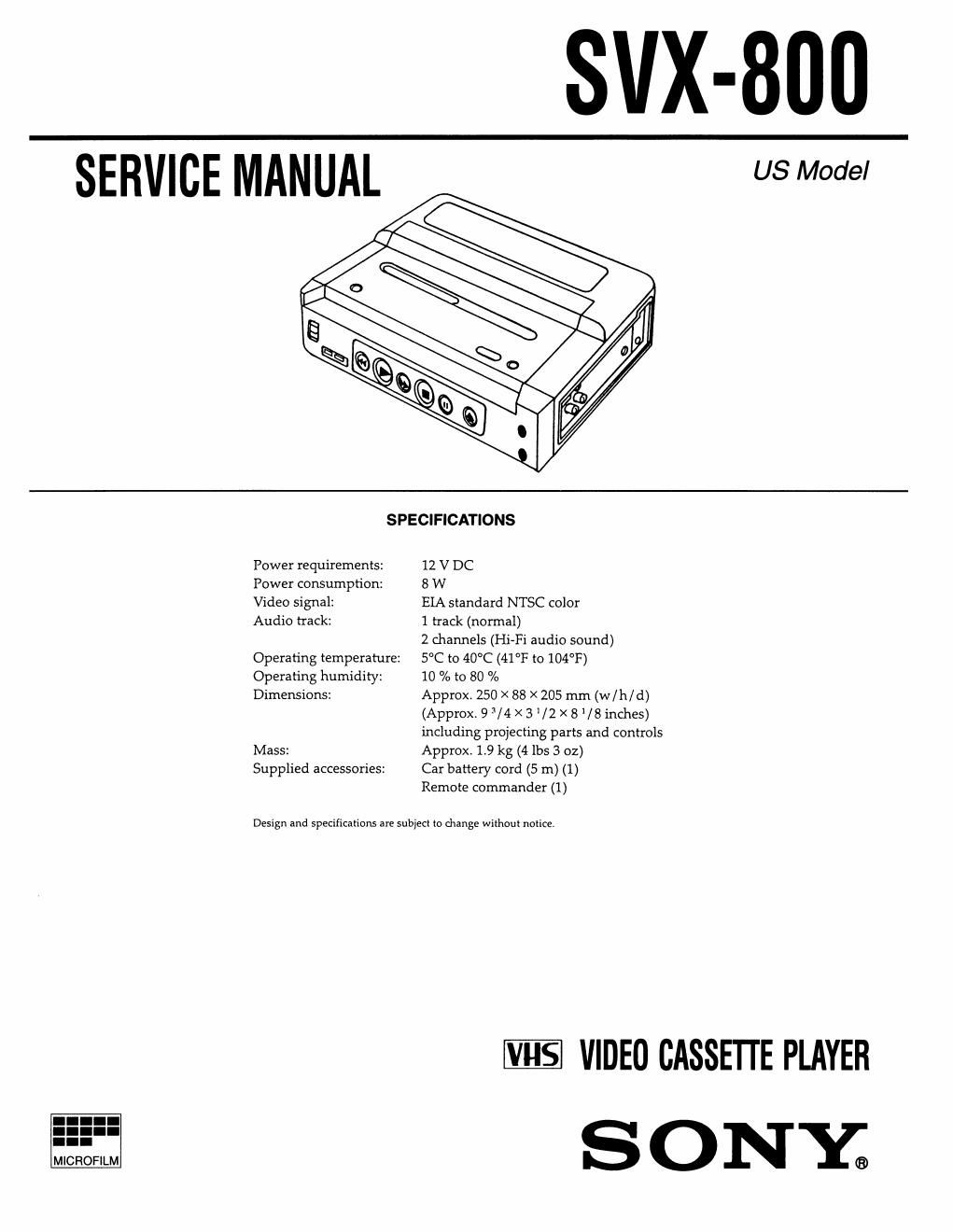

Page 1
SVX-800
SERVICE MANUAL Us Model
SPECIFICATIONS
Power requirements: 12 V DC
Power consumption: 8 W
Video signal: ELA standard NTSC color
Audio track: 1 track (normal)
2 channels (Hi-Fi audio sound)
Operating temperature: 5°C to 40°C (41°F to 104°F)
Operating humidity: 10 "/o to 80 %
Dimensions: Approx. 250 X 88 X 205 mm (w/h/d)
(Approx. 93/4 X 3 1/2 X 8 /8 inches)
including projecting parts and controls
Mass: Approx, 19 kg (4 lbs 3 oz)
Supplied accessories: Car battery cord (5 m) (1)
Remote commander (1)
Design and specifications are subject to change without notice
VHS VIDEO CASSETTE PLAYER
Page 2
CONTENTS
SECTION 1 ...................... Summary
Adjustmemt Procedures
Schematic Diagrams
Circuit Board Layout
Exploded Views
Replacement Parts List
SECTION 2 ...................... Block Diagrams
