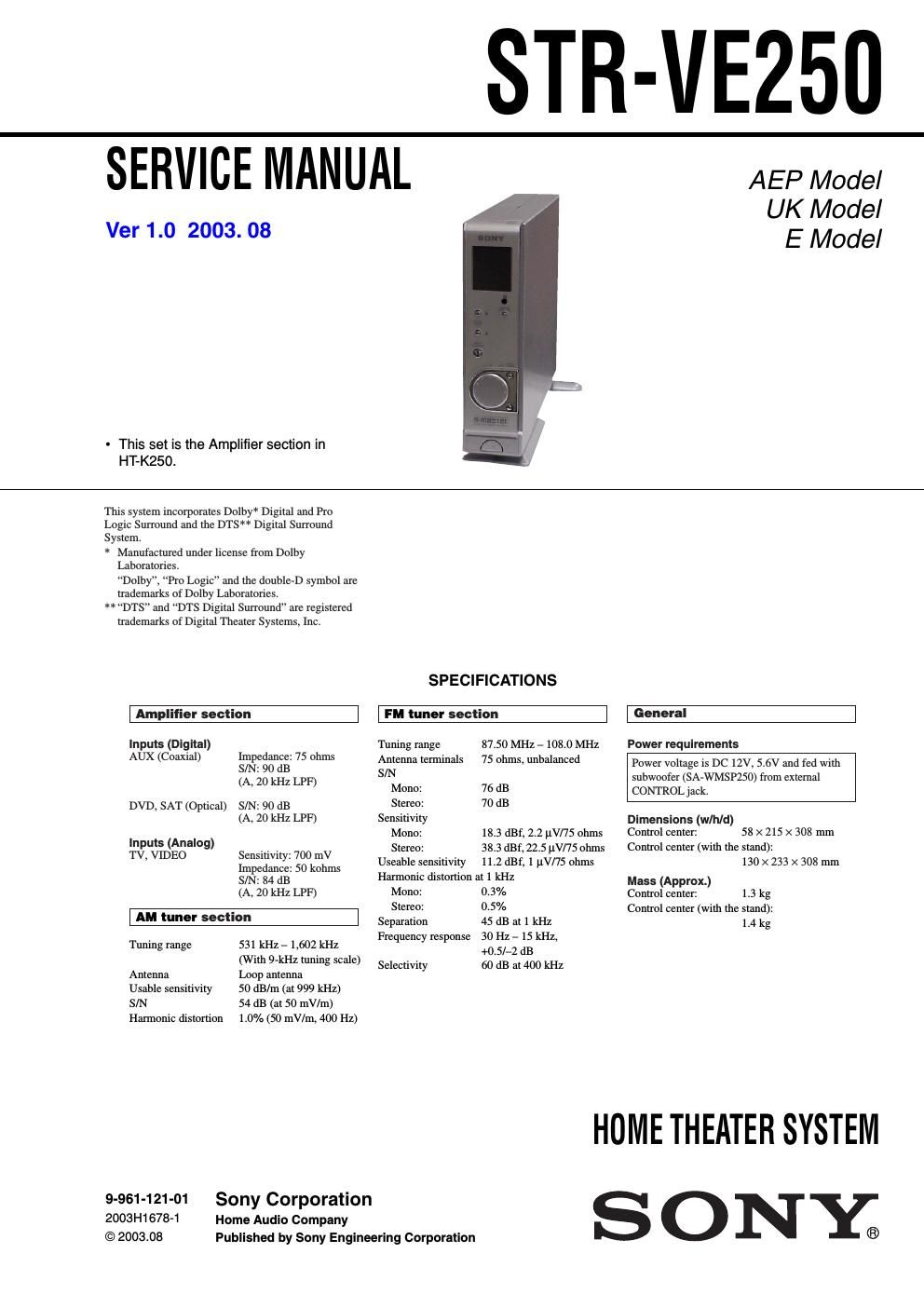

Sony str ve 250 service manual
This is the 20 pages manual for sony str ve 250 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony str ve 250 service manual (Ocr-read)
Page 1
2 STR-VE250 1. GENERAL ········································································· 3 2. TEST MODE ····································································· 5 3. DIAGRAMS ········································································ 7 3-1. PRINTED WIRING BOARD – MAIN SECTION – ····· 8 3-2. SCHEMATIC DIAGRAM – MAIN SECTION – ·········· 9 3-3. PRINTED WIRING BOARD – FRONT PANEL SECTION – ············ 10 3-4. SCHEMATIC DIAGRAM – FRONT PANEL SECTION – ············ 11 3-5. IC PIN FUNCTION DESCRIPTION ··························· 12 3-6. IC BLOCK DIAGRAM ················································ 13 4. EXPLODED VIEWS 4-1. MAIN SECTION ·························································· 14 4-2. FRONT PANEL SECTION ·········································· 15 5. ELECTRICAL PARTS LIST ····································· 16[When bringing in the equipment for service] When bringing the system in for repairs, be sure to bring in the entire system (control center (STR-VE250) and subwoofer (SA- WMSP250) This product is system product, and the entire system is needed to determine the location requiring repair. : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing -Keep the temperature of soldering iron around 270˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. TABLE OF CONTENTS
Page 2
3 STR-VE250 SECTION 1 GENERAL This section is extracted from instruction manual. Control center Display 1 (17) DISPLAY POSITION 3 (18) INPUT SELECTOR 8 (16, 18, 19) MUTING 5 (16, 30) Remote sensor 2 SOUND FIELD f/F 9 VOL/PRESET TUNING 4 (19) VOL/PRESET TUNING control 7 (16, 19, 27) ?/1 (power) 6 ALPHABETICAL ORDER NUMBERS AND SYMBOLS 1 2 3 4 5 6 9 8 7
