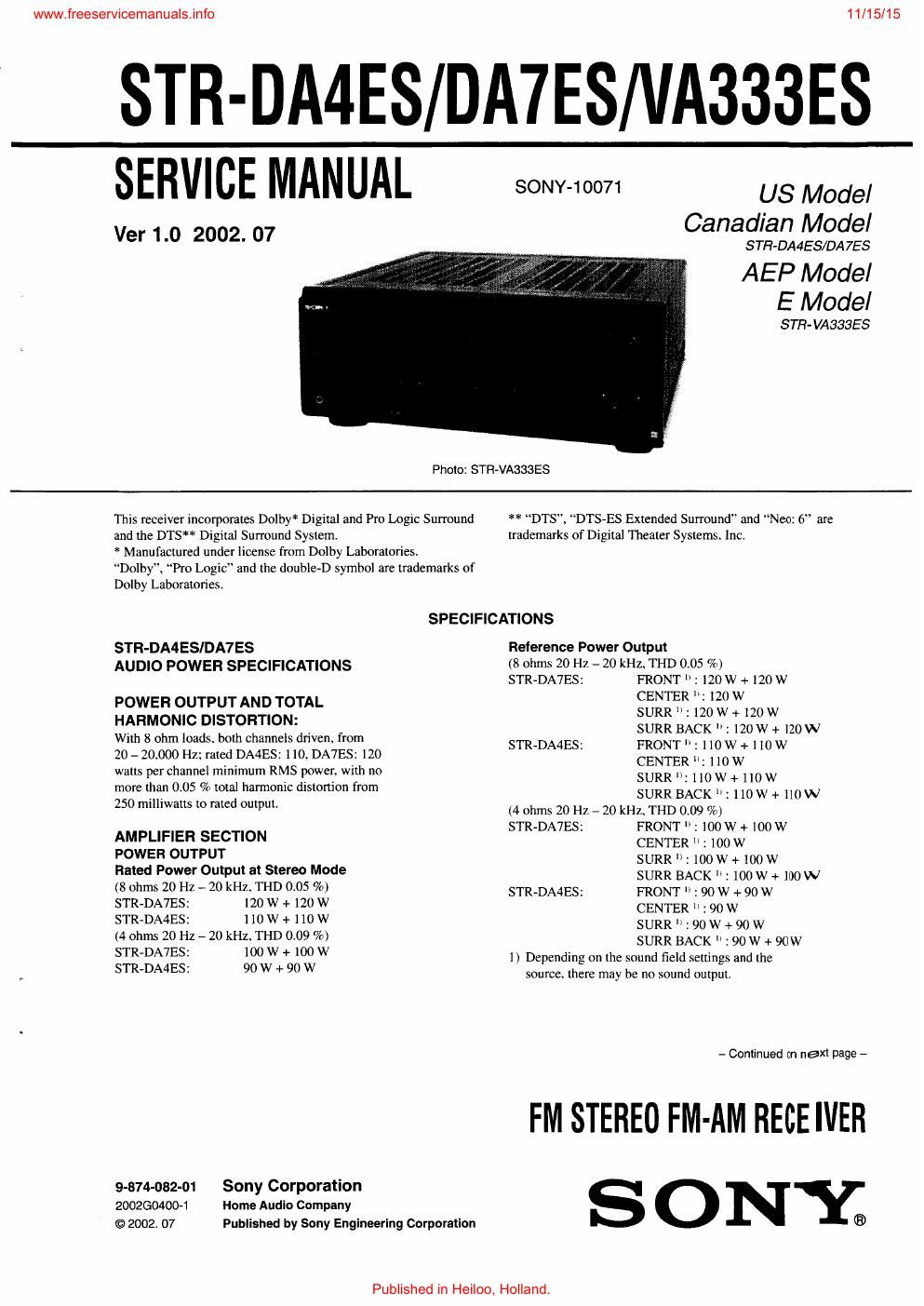

STR-DA4ES/DA7ESNA333ES

'SEHVIcEMANUAL- WM

Canadian Model

STR-DA4ES/DA 7E8

AEP Model
E Model

STR- VA333ES

Ver 1.0 2002. 07

Photo: STR-VA333ES

This receiver incorporates Dolby* Digital and Pro Logic Surround ** DTS, DTS-ES Extended Surround" and Neo: 6 are
and the DTS** Digital Surround System. trademarks of Digital Theater Systems. Inc.

* Manufactured under license from Dolby Laboratories.

Dolby", Pro Logic" and the double~D symbol are trademarks of

Dolby Laboratories.

SPECIFICATIONS

STR-DA4ESIDA7ES
AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:

With 8 ohm loads. both channels driven, from

20 - 20000 Hz; rated DA4ES: 110. DA7ES: 120
watts per channel minimum RMS power, with no
more than 0.05 % total harmonic distortion from
250 milliwatts to rated output.

AMPLIFIER SECTION

POWER OUTPUT

Rated Power Output at Stereo Mode
(8 ohms 20 Hz - 20 kHz. THD 0.05 %)

STR»DA7ES: 120 W + 120 W
STR»DA4ES: llOW+110W
(4 ohms 20 Hz - 20 kHz, THD 0.09 %)
STR-DA7ES: 100 W + 100 W
STR-DA4ES: 90 W + 90 W

9-874-082-01 Sony Corporation
2002604004 Home Audio Company

© 2002. 07 Published by Sony Engineerlng Corporation

Reference Power Output
(8 ohms 20 Hz ~ 20 kHz, THD 0.05 70)
STR-DA7ES: FRONT 1): 120 W + 120 W
CENTER 1: 120 W
SURR 1 120 W +120W
SURR BACK ": 120W +120W
STR-DA4ES: FRONT": llOW+ IIOW
CENTER 2 110 W
SURR : IIOW+ 110W
SURR BACK ": 110W + 110W
(4 ohms 20 Hz - 20 kHz, THD 009 %)
STR-DA7ES: FRONT 2 I00 W + 100 W
CENTER : 100W
SURR:100W + 100W
SURR BACK 1': 100W +100W
STR-DA4ES: FRONT : 90 W + 90 W
CENTER : 90 W
SURR :90 W + 90 W
SURR BACK 'I : 90W 4» 90W
I) Depending on the sound field settings and the
source. there may be no sound output.

- Continued on "ex1 page -
