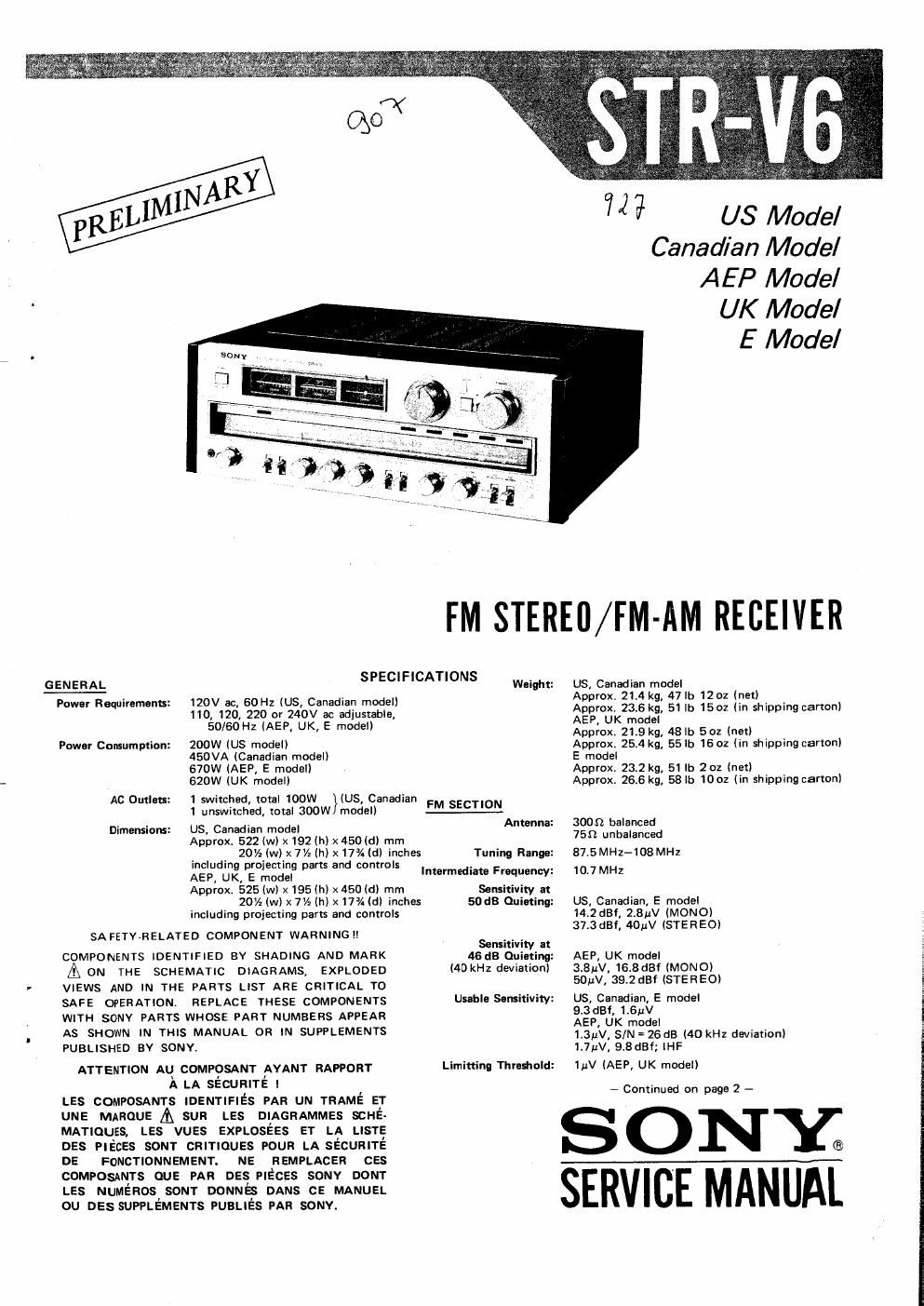

Sony str v 6 service manual

Page 1

GENERAL

Power Requirements: 120V ac, 60 Hz (US, Canadian model)
110, 120, 220 or 240V ac adjustable.

50/60 Hz (AEP, UK, E model)

200W (US model)
ASOVA (Canadian model)
670W (AEP, E model)
620W (UK model)

Power Consumption:

AC Outlets: I switched, total 100W }(US, Canadian
1 unswitched, total 300W model)
Dimensions: US, Canadian model

Approx, 522 (w) x 192 (h) x 450 (d) mm
20% (w) x 7'4 (h) x 17%(d) inches

including proiecting parts and controls

AEP, UK, E model

Approx. 525(wlx195lh) x 450 (d) mm
2072 (w) x 7%(h) x17%(d) inches

including projecting parts and controls

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BV SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONV PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BV SONY.

ATTENTION Au COMPOSANT AYANT RAPPORT
A LA sEcuané I

LES composst IDENTIFIES PAR UN TRAME ET
UNE MARQUE A sun LES DIAGRAMMES SCHE-
MATIOUES, LES VUEs EXPLOSEES ET LA LIsTE
DES PIEcEs SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE HEMPLACER css
COMPOSANTS auE PAR DES PIECES souv DONT
LEs NUMEROS SONT Donna DANS CE MANUEL
ou DES SUPPLEMENTS PUBLIES PAR SONV.

733 US Model

Canadian Model
AEP Model
UK Model

E Model

FM STEREfl/FM-AM RECEIVER

SPECIFICATIONS

Weight:

FM SECTION

Antenna:

Tuning Flange:

Intermediate Frequency:

Sensitivity at
50dB Quieting:

Sensitivity at
46 dB (Mining:
(40 kHz deviation)

Usable Sensitivity:

Limittinu Thradwld:

US, Canadian model

Approx. 21.4 kg, 47 lb 1202 (net)

Approx, 23,6 kg, 51 lb 150: (in shipping carton)
AEP, UK model

Approx, 21.9 kg, 48 lb 502 (net)

Approx. 25.4 kg, 55lb 16 oz (in shipping carton)
E model

Approx, 23.2 kg, 51 lb 20: (net)

Approx. 26.6 kg. 58 lb 1002 (in shipping carton)

3005': balanced
75S] unbalanced

87.5 MHz-108 MHz
107 MHz

US, Canadian, E model
14,2dBf, 2.8uV (MONO)
3113 dBf, 40uV (STEREO)

AEP, UK model

3.8pV, 16.8dBf (MONO)

SOuV, 39.2 dBf (STEREO)

US, Canadian, E modal

9.3dBf, 1.6uV

AEP, UK model

1.3uV, S/N = 26 dB (40 kHz deviation)
1.7;1V, 9.8dBf; IHF

IuV (AEP, UK model)

- Continued on page 2 -
