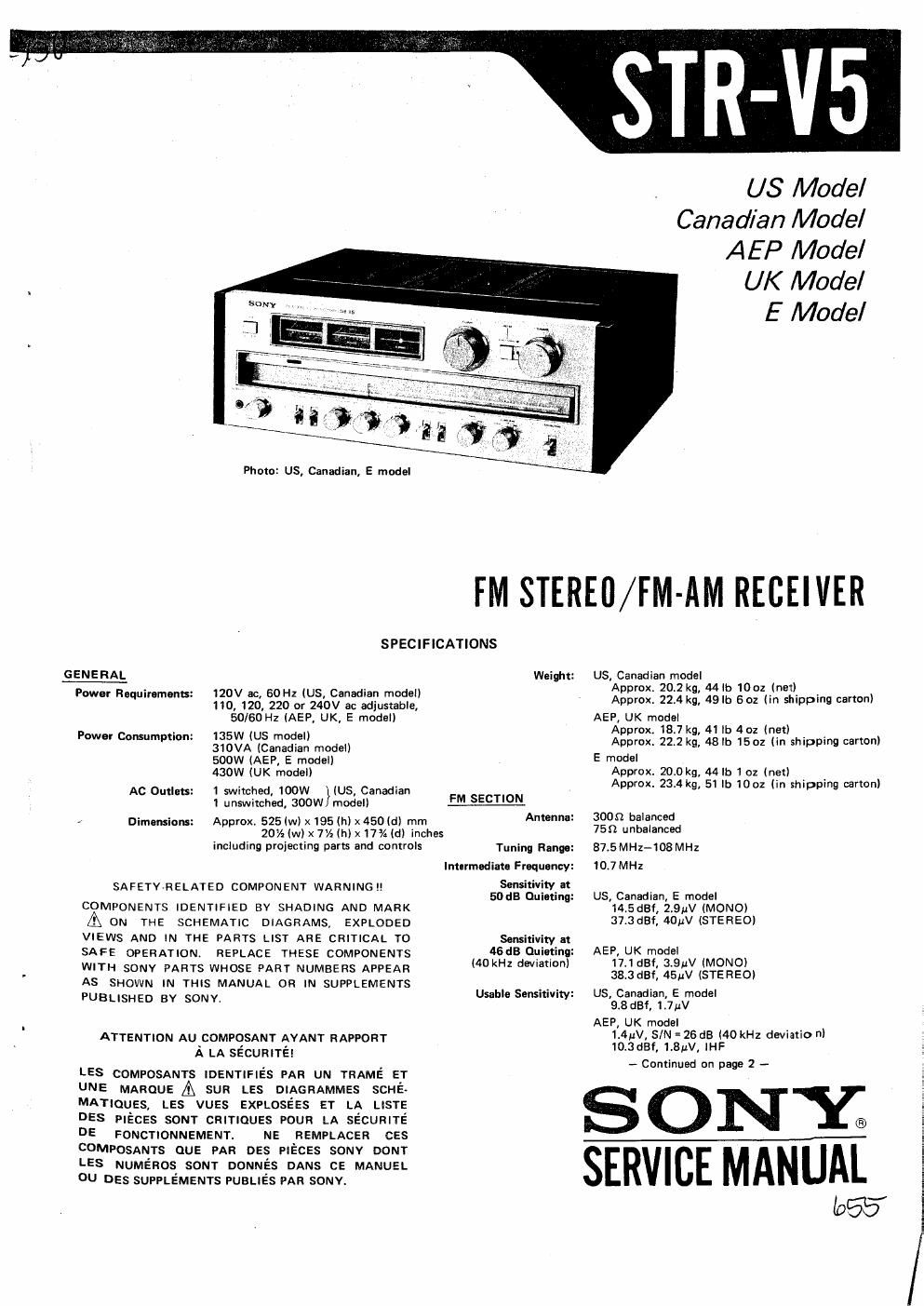

Page 1

Photo: US, Canadian, E modai

US Model
Canadian Model
AEP Model

UK Model
E Model

FM STEREO/FM-AM RECEIVER

SPECIFICATIONS

GENERAL Weight:

Power Hoquiromonts: 120V ac, 60 Hz (US, Canadian modal)
110, 120, 220 or 240V ac adjustable,
50/60 Hz (AEP, UK, E model)

Power Consumption: 135W (US model)
310VA (Canadian model)
500W (AEP, E model)
430W (UK model)

Ac Outlaw 1 switched, 100W (US, Canadian

1 unswitched, 300W}model) m

, Dimensions: Approx. 525 (w) x 19501) x450 (d) mm Antenna:
20% (w) x 7%(h) x17%(d) inches

including projecting parts and controls Tuning Range:
Intermediate Frequency:
SAFETVPELATED COMPONENT WARNING Sensitivitv 8
SOdB Gaining:

COMPONENTS IDENTIFIED BV SHADING AND MARK
ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LISY ARE CRITICAL T0 Sensitivity a!

SAFE OPERATION. REPLACE THESE COMPONENTS 4MB Guiafinw

WITH SONY PARTS WHOSE PART NUMBERS APPEAR 0": WWW"

AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

ATTENTION Au CDMPOSANT AYANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UN TRAME ET
UNE MARQUE A sun LES DIAGRAMMES SCHE-
MATIQUES, LES vues EXPLOSEES ET LA LISTE
DES PIEcEs SONT CRITIQUES POUR LA SEcumTE
DE FONCTIONNEMENT. NE REMFLACER CES
COMPOSANTS QUE PAR DES PIECES SONV DONT
LES NUMEROS SONT DONNES DANS CE MANUEL
0U DES SUPPLEMENTS PUBLIES PAR SONV.

Usable Sensitivity:

US, Canadian model
Approx. 20.2 kg, 44 lb IOoz (net)
Approx. 22.4 kg, 49 lb 602 (in shipping carton)

AEF, UK modal
Approx. 18.7 kg, 41 lb 402 (net)
Approx. 222 kg, 48 lb 150: (in shipping carton)

E model
Approx. 20.0 kg, 44 lb 1 02 (net)
Approx. 23.4 kg, 51 lb 1002 (in shipping carton)

300$! balanced
759 unbalanced

87.5MHz-108 MHz
10.7 MHZ

US, Canadian, E model
14.5 dBf, 2.9uV (MONO)
37.3dBf, 40uV (STEREO)

AEP, UK model
17.1 car, 3.9;.v (MONO)
38.3 dBf, 45w (STEREO)

US, Canadian, E model
9.8 dBf, 1.7).IV

AEP, UK model
1.4uV, S/N =26 dB (40 kHz deviario n)
10.3dBf, 1.8uV, IHF

Continued on page 2 -

SON'Y.
SERVICE MANUAL

(965
