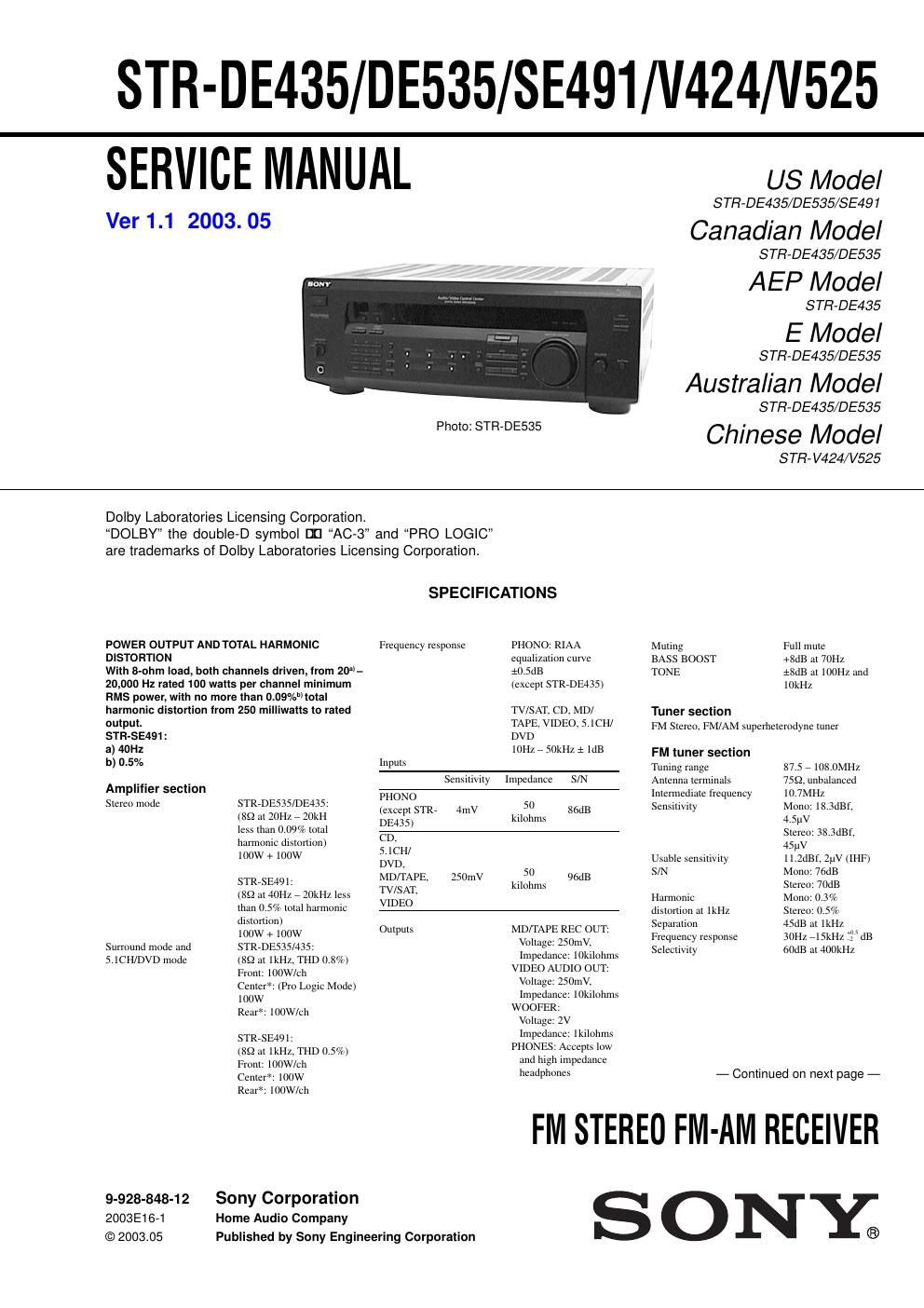

Ñ 2 Ñ AM tuner sectionTuning range 10kHz interval** 530 Ð 1,710kHz 9kHz interval 531 Ð 1,710kHz Antenna Loop antenna Intermediate frequency 450kHz Usable sensitivity 50dB/m (at 1,000kHz) S/N 54dB (at 50mV/m) Harmonic distortion 0.5% (50mV/m, 400Hz) Selectivity At 10kHz: 40dB At 9kHz: 35dB ** You can change the AM tuning interval between 9kHz and 10kHz. After tuning in any AM station, turn off the receiver. Hold down the PRESET TUNING+ buttoh and press the 1/u (power) button. All preset stations will be erased when you change the interval. To reset the interval, repeat the procedure. VIDEO section (except STR-SE491)Inputs VIDEO, TV/SAT, 5.1CH/DVD: 1Vp-p 75W Outputs VIDEO, MONITOR: 1Vp-p 75W GeneralSystem Tuner section: PLL quartz-locked digital synthesizer system Preamplifier section: Low-noise NF type equalizer Power amplifier section: Pure-complementary SEPP Power requirements 120V AC, 60Hz Power consumption 220W AC outlets STR-DE535/SE491: 2 switched, total 120W/1A Max STR-DE435: 1 switched, total 120W/1A Max Dimensions 430 ´ 157 ´ 366 mm (17 ´ 6 1/8 ´ 14 5/8 inches) Mass (Aporox.) STR-DE535: 11.1kg (24 lb 6 oz) STR-DE435: 11.0kg (24 lb 3 oz) STR-DE491: 11.2kg (24 lb 9 oz) Supplid accessories FM wire antenna (1) AM loop antenna (1) Remote commander (remote) (1) LR6 (size - AA) batteries (3) (STR-DE535 only) R6 (size - AA) batteries (2) (STR-DE435/SE491 only) * Depending on the sound field setting and the source, there may be no sound output. Design and specifications are subject to change without notice. Parts No. MODEL IDENTIFICATION Ñ BACK PANEL Ñ MODEL PARTS No. DE535: US model 4-216-927-0¹ DE535: Canadian model 4-216-927-1¹ DE535: Australian model 4-216-927-2¹ DE535: E model 4-216-927-3¹ DE535: Malaysia, Singapore model 4-216-927-4¹ V525: Chinese model 4-216-927-5¹ DE435: US model 4-217-181-0¹ DE435: Canadian model 4-217-181-1¹ DE435: Australian model 4-217-181-2¹ DE435: Malaysia, Singapore model 4-217-181-3¹ V424: Chinese model 4-217-181-4¹ DE435: AEP model 4-217-181-5¹ DE435: East European, CIS model 4-217-181-6¹ SE491: US model 4-217-181-7¹
