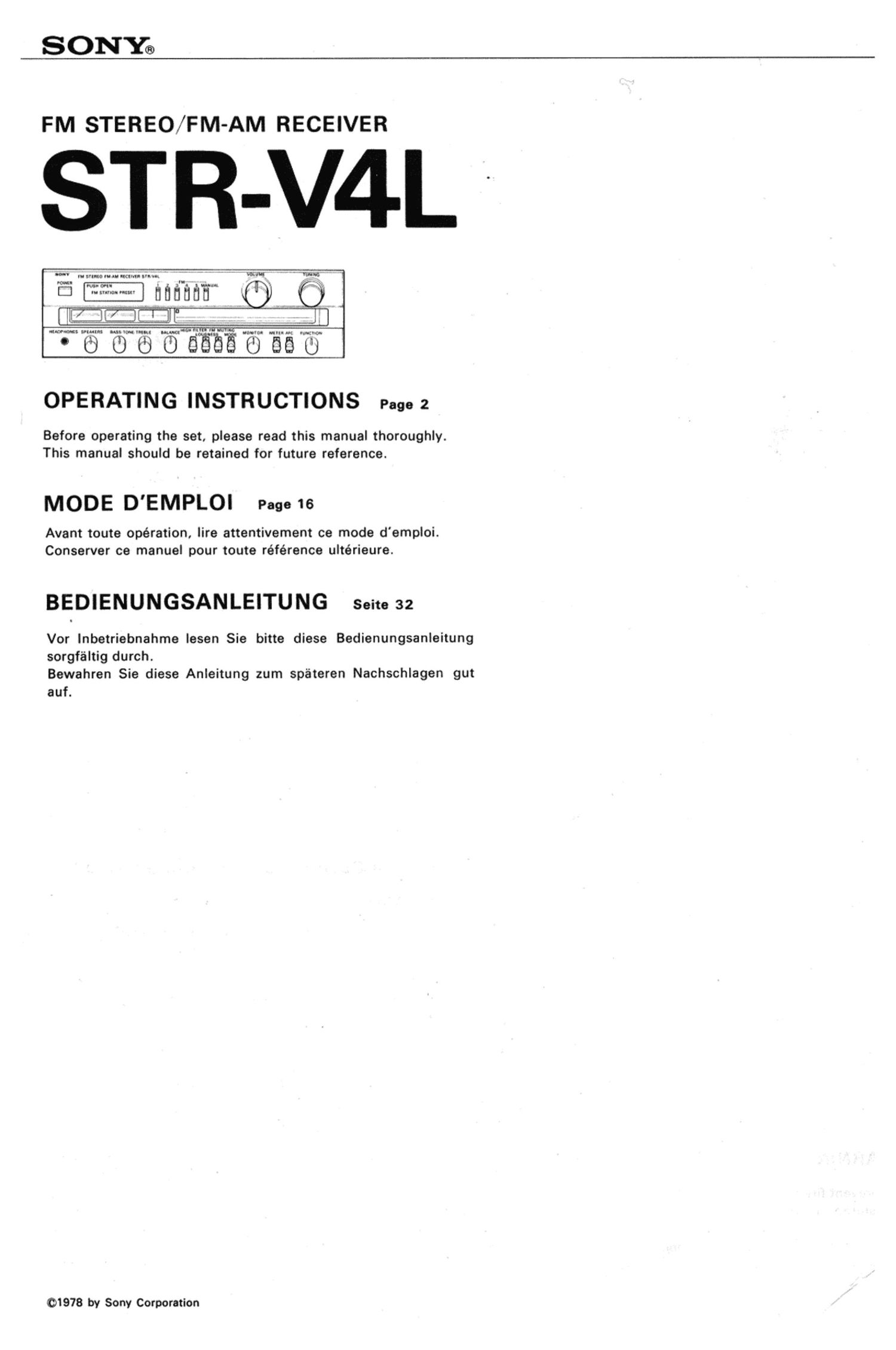

Page 1

SONY®

FM STEREO/FM-AM RECEIVER

STR-V4L

OPERATING INSTRUCTIONS Pagez

Before operating the set, please read this manual thoroughly.
This manual should be retained for future reference.

MODE D'EMPLOI Page 16

Avant toute operation, lire attentivement ce mode demploi.
Conserver ce manuel pour toute référence ultérieure.

BEDIENUNGSANLEITUNG Seite 32

Vor Inbetriebnahme lesen Sie bitte diese Bedienungsanleitung
sorgféltig durch.

Bewahren Sie diese Anleitung zum spéteren Nachschlagen gut
auf.

©1978 by Sony Corporation

Page 2

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or
moisture.

To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.

2

TABLE OF CONTENTS

Unpacking .................................................... 3
Operating voltage ............................................. 3
Precautions .................................................. 3
Connection diagram .......................................... 4
System connections .......................................... 5

Connection notes, Power connection,
Speaker connection, Program source connections,
Ground connection

Antennas ...................................................... 8
FM anntenna, AM (MW or LW) antenna
Operating instructions ........................................ 10

Initial operation, Sound adjustment, FM reception, AM (MW or
LW) reception, Record playing, Tape playback.
Tape recording, Tape copy

Front panel facilities .......................................... 12

Care of your receiver .......................................... 14
Trouble checks, Cleaning

Specifications ................................................ 14

Block diagram ................................................ 47

Tuner section, Audio section

For the Customers in the United Kingdom
WARNING

This apparatus must be earthed at the terminals in your 3-pin
plug as follows:

important
The wires in this mains lead are coloured in accordance with
following code.

Green-and-yellow Earth (safety earth)

Blue Neutral

Brown Live
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected
to the terminal in the plug which is marked with the letter E
or by the safety earth symbol :1: or coloured green or green-
and-yellow.
The wire which is coloured blue must be connected to the ter-
minal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
