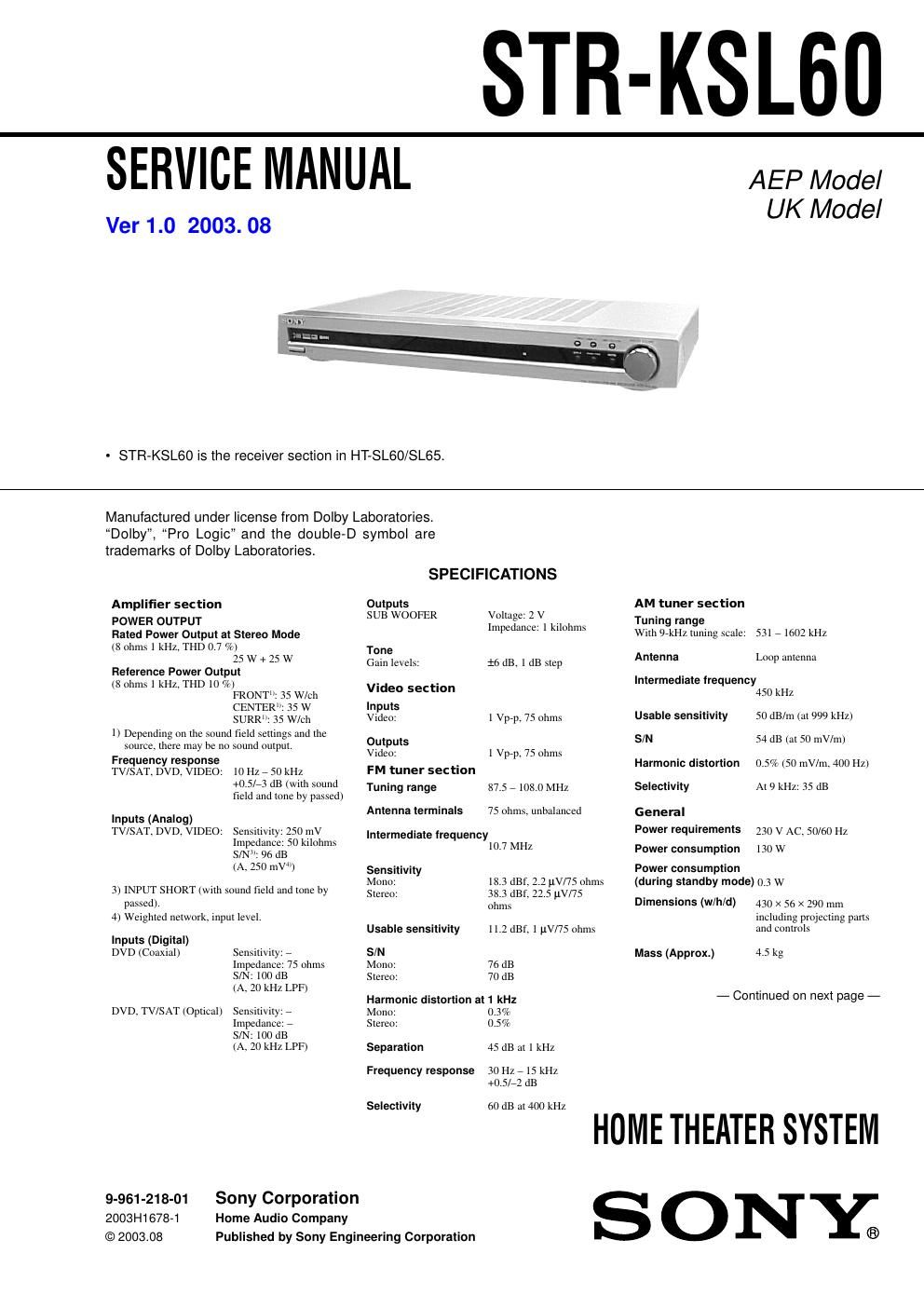

Sony str ksl 60 service manual
This is the 32 pages manual for sony str ksl 60 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony str ksl 60 service manual (Ocr-read)
Page 1
2 STR-KSL60 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 1. GENERAL ·········································································· 3 2. TEST MODE ······································································ 4 3. DIAGRAMS ········································································ 5 3-1. BLOCK DIAGRAMS – MAIN SECTION – ···················································· 6 – DISPLAY/POWER SECTION – ································ 7 3-2. PRINTED WIRING BOARD – DIGITAL SECTION – ··············································· 8 3-3. SCHEMATIC DIAGRAM – DIGITAL (1/2) SECTION – ······································ 9 3-4. SCHEMATIC DIAGRAM – DIGITAL (2/2) SECTION – ···································· 10 3-5. PRINTED WIRING BOARD – MAIN/STANDBY SECTION – ······························· 11 3-6. SCHEMATIC DIAGRAM – MAIN (1/2) SECTION – ·········································· 12 3-7. SCHEMATIC DIAGRAM – MAIN (2/2)/STANDBY SECTION – ····················· 13 3-8. PRINTED WIRING BOARD – DISPLAY SECTION – ············································· 14 3-9. SCHEMATIC DIAGRAM – DISPLAY SECTION – ············································· 15 3-10. IC BLOCK DIAGRAM ·············································· 16 3-11. IC PIN FUNCTION DESCRIPTIONS ······················· 17 4. EXPLODED VIEWS 4-1. FRONT PANEL SECTION ········································· 21 4-2. CHASSIS SECTION ··················································· 22 5. ELECTRICAL PARTS LIST ······································· 23 Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. TABLE OF CONTENTS Supplied accessories FM wire antenna (1) AM loop antenna (1) Remote commander RM-U40 (1) R6 (size-AA) batteries (2) Speakers -Front speakers (2) -Center speaker (1) -Surround speakers (2) -Sub woofer (1) Speaker cords (long) (2) Speaker cords (short) (3) Speaker foot pads (20) (HT-SL60, HT-SL55, HT-SL50 and HT-SL40 only) Speaker foot pads for center speaker (4) (HT-SL70 and HT-SL65 only) Sub woofer foot pads (4) Coaxial digital cord (1) Monaural audio cord (1) Colour label for speakers (5) Design and specifications are subject to change without notice.
Page 2
3 STR-KSL60 SECTION 1 GENERAL This section is extracted from instruction manual. List of Button Locations and Reference Pages Main unit How to use this page Use this page to find the location of buttons that are mentioned in the text. Illustration number r MUTINGqa (14, 19, 37) R R Name of button/part Reference page Display6 (28) DVD (indicator) 3 (19) INPUT SELECTOR 8 (19, 26) IR (receptor) 7 (32) MASTER VOLUME 9 (18, 36) MUTINGqs (14, 19, 37) PRESET TUNING +/– qd (28) SOUND FIELD qa (21, 25, 38) TUNER (indicator) 5 (19) TV/SAT (indicator) 4 (19) VIDEO (indicator) 2 (19) ALPHABETICAL ORDER NUMBERS AND SYMBOLS @/1 (power) 1 (13, 18, 19, 25, 26) ; PLII q; (20) ?/1 1 2 3 4 5 6 7 8 9 0 qs qdqa HT-SL70, HT-SL55, HT-SL50 and HT-SL40 only Display6 (28) DVD (indicator) 3 (19) INPUT SELECTOR 9 (19, 26) IR (receptor) 7 (32) MASTER VOLUME q; (18, 36) MUTINGqa (14, 19, 37) PRESET TUNING +/– 8 (28) SOUND FIELD qs (21, 25, 38) TUNER (indicator) 5 (19) TV/SAT (indicator) 4 (19) VIDEO (indicator) 2 (19) ALPHABETICAL ORDER NUMBERS AND SYMBOLS @/1 (power) 1 (13, 18, 19, 25, 26) ; PLII qd (20) HT-SL65 and HT-SL60 only ?/1 1 2 3 4 5 6 7 8 9 0 qs qd qa
