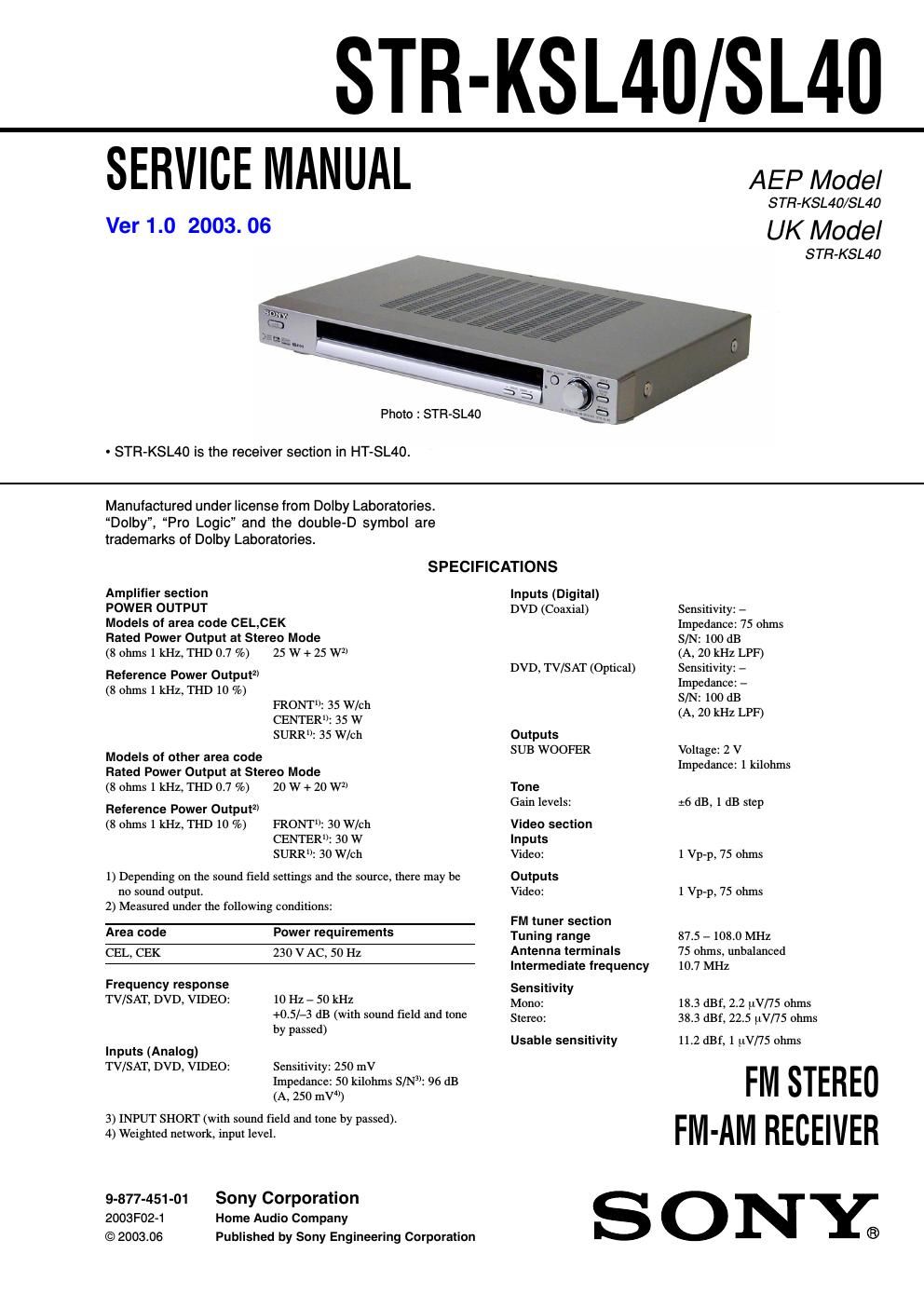

Page 1

STR-KSL40/SL40

SERVICE MANUAL

Ver 1.0 2003. 06

Photo : STR-SL40

- STR-KSL40 is the receiver section in HT»SL40.

AEP Model

S TH-KSL40/SL40

UK Model

STH-KSL40

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic and the double-D symbol are
trademarks of Dolby Laboratories.

SPECIFICATIONS

Amplifier section

POWER OUTPUT

Models of area code CEL,CEK

Rated Power Output at Stereo Mode

(8 ohms 1 kHz, THD 0.7 %) 25 W + 25 W17

Reference Power Output"

(8 ohms 1 kHz, THD 10 %)
FRONT: 35 W/ch
CENTER": 35 W
SURR: 35 W/ch

Models of other area code
Rated Power Output at Stereo Mode
(8 ohms 1 kHz, THD 0.7 %) 20 W + 20 W17

Reference Power Output"
(8 ohms 1 kHz, THD 10 %) FRONT: 30 W/ch
CENTER": 30 W

SURR: 30 W/ch

1) Depending on the sound field settings and the source, there may be
no sound output.
2) Measured under the following conditions:

Area code
CEL, CEK

Power requirements
230 V AC, 50 Hz

Frequency response
TV/SAT, DVD, VIDEO: 10 Hz - 50 kHz
+0.5/-3 dB (with sound field and tone

by passed)

Inputs (Analog)
TV/SAT, DVD, VIDEO: Sensitivity: 250 mV
Impedance: 50 kilohms S/N: 96 dB

(A, 250 mV)

3) INPUT SHORT (with sound field and tone by passed).
4) Weighted network, input level.

9-877-451-01 Sony Corporation
2003F02-1 Home Audio Company
© 2003.06 Published by Sony Engineering Corporation

Inputs (Digital)
DVD (Coaxial)

DVD, TV/SAT (Optical)

Outputs
SUB WOOFER

To ne
Gain levels:

Video section
Inputs
Video:

Outputs
Video:

FM tuner section
Tuning range

Antenna terminals
Intermediate frequency
Sensitivity

Mono:

Stereo:

Usable sensitivity

Sensitivity: -
Impedance: 75 ohms
S/N: 100 dB

(A, 20 kHz LPF)
Sensitivity: -
Impedance: -

S/N: 100 dB

(A, 20 kHz LPF)

Voltage: 2 V
Impedance: 1 kilohms

:6 dB, 1 dB step

1 Vp-p, 75 ohms

1 Vp-p, 75 ohms

87.5 - 108.0 MHz
75 ohms, unbalanced
10.7 MHz

18.3 dBf, 2.2 [AV/75 ohms
38.3 dBf, 22.5 uV/75 ohms

11.2 dBf, l [AV/75 ohms

FM STEREO
FM-AM RECEIVER

ONE.
