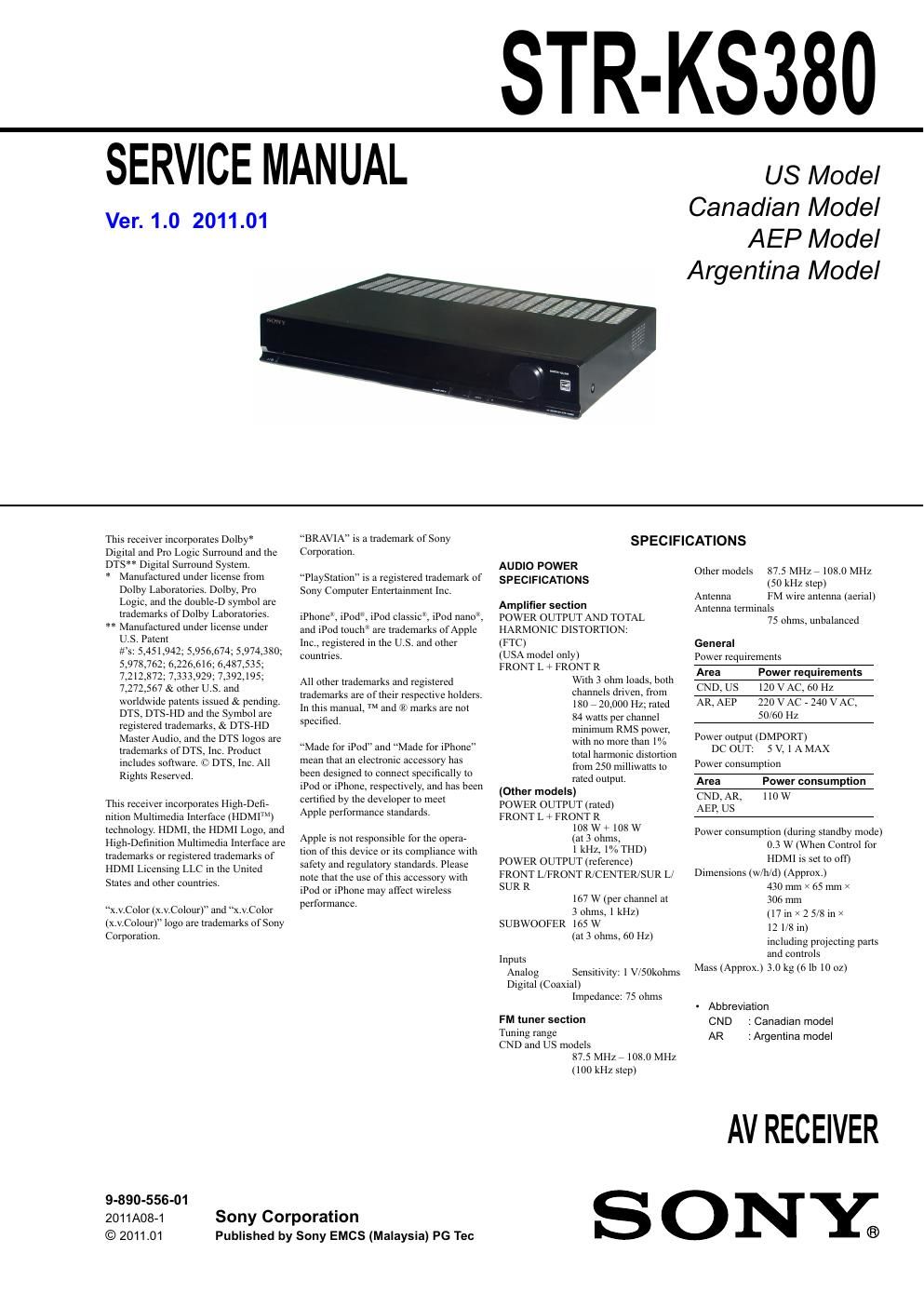

STR-KS380

SERVICE MANUAL

Ver. 1.0 2011.01

US Model
Canadian Model
AEP Model
Argentina Model

This recetver incorporates Dolby*
Digital and Pro Logic Surround and the
DTS Digital Surround System.

* Manufactured under license from
Dolby Laboratories. Dolby, Pro
Logic, and the doubleeD symbol are
trademarks otDolby Laboratories.

** Manufactured under license under
U5 Patent

,451,942: 5,956,674: 5,974.330;

5,978,762: 6,226,616; 6,487,535;

7,212,372: 333,929; 7,392,195;

7,272,567 & other us. and

worldwlde patents issued & pending.

DTS, DTSel-ID and the Symbol are

registered trademarks, & DTSeHD

MasterAudio. and the DTS logos are

trademarks orDTs. Inc. Product

includes sottware, to DTS, Inc All

Rights Reserved.

This recelver incorporates ngheDefie
nitlorl Multtmedla Interface (HDMITMI
technology. HDMI, the HDMI Logo, and
HtgheDefinttton Multlmedla interface are
trademarks or registered trademarks of
HDMI Llcenslng LLC ln the Untted
States and other countries.

X.V.Color (x Colour)" and "X.V.Colnr
(x.v.Colour)" logo are trademarks of Sony
Corporation.

9-390-556-01
2011A08-1
© 2011.01

BRAVIA is a trademark ot'Sony
Corporation.

PlayStatlon" is a registered trademark of
Sony Computer Entertainment Inc.

lPhone, lPod, iPod classlc, lPod nanoh
and iPod touch" are trademarks otApple
Inc.; registered in the us, and other
countries.

All other trademarks and registered
trademarks are ofthelt' respective holders.
In this manual, or and {It marks are not
specified,

Made for lPod" and Made for tPhone"
mean that an electronic accessory has
been designed to connect specifically to
lPod or iPhone, respectlvely. and has been
certlfied by the developer to meet

Apple performance standards.

Apple is not responsible for the opera
tion of this deVice or us compliance with
safety and regulatory standards. Please
note that the use otlhis accessory With
tPod or tPhone may affect wtreless
performance,

Sony Corporation
Published by Sony EMCS (Malaysia) PG Tec

SPECIFICATIONS

AUDIO POWER
SPECIFICATIONS

Amplifier section
POW'ER OUTPUT AND TOTAL
HARMONIC DISTORTION
(FTC)
(USA model only)
FRONT L + FRONT R
with 3 ohm loads, both
channels drlyen, from
180 , 20,000 Hz; rated
84 watts per channel
minimum RMS power,
With no more than 1%
total hunnonlc dtstorlton
from 250 milliwatts tn
rated output.
(Other models)
POVER OUTPUT (rated)
FRONT L + FRONT R
108 W + 108 W
(at 3 ohms,
1 kHz, luoTHD)
POWER OUTPUT (reference)
FRONT L FRONT R/CENTER/SUR L/
SUR R
167 W (per channel at
3 ohms. 1 kHz)
SUBWOOFER 165 W
(at 3 ohms, 60 Hz)

lnpiits
Analog Sensitivity:

Digital (Coaxlal)
Impedance: 75 ohms

1 ViSOkohms

FM tuner section

Tuning range

(ND and US models
87.5 MHZr 108.0 MHZ
(100 kHz step)

Other models 87.5 MHZ 7108.0 MHz
(50 kHz step)

Antenna FM wire antenna (aerial)
Antenna termlnals

75 ohms, unbalanced

General
Power requirements

Area Power req rements
CND, US 120VAC, 601-12
AR,AEP 220VAC 7240VAC,
50/60 HZ
Power output (DMPORT)
DC OUT: 5 V. l AMAX

Power consumption

Area Power consumption
CND, AR, 110 W
AER US

Power consumption (dllrlng standby mode)
0.3 W (When Control for
HDMI is set to ofl)
Dimensions (w h/d) (Approx)
430 mm X 65 mm X
306 mm
(17 tn X 2 5/8 tn X
2 1i8 in)
including projecting parts
and controls
Mass (Approx) 3.0 kg (6 lb l0 oz)

- Abbreviation
CND : Canadian model
AR :Argentina model

AV RECEIVER
