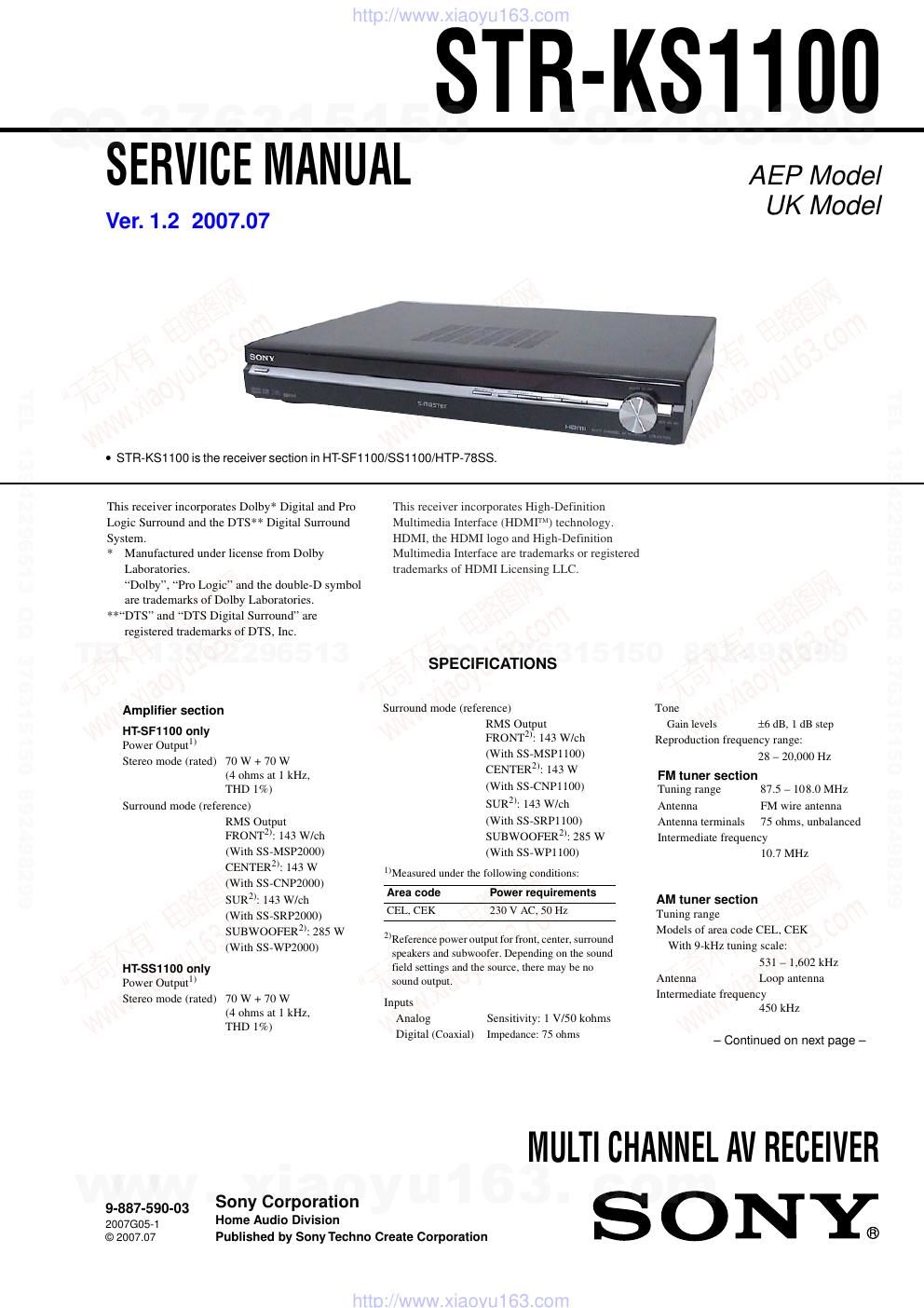

Page 1

STR-KS1100

SERVICE MANUAL

Ver. 1.2 2007.07

AEP Model
UK Model

0 STR-KS1 100 is the receiversection in HT-SF1100/SS1100/HTP-7BSS.

This receiver incorporates Dolby" Digital and Pro
Logic Surround and the DTS** Digital Surround

This receiver incorporates High-Definition
Multimedia Interface (HDMIN) technology.

System. HDMI, the HDMI logo and High-Definition
* Manufactured under license from Dolby Multimedia Interface are trademarks or registered
Laboratories. trademarks of HDMI Licensing LLC.

"Dolby", Pro Logic" and the double-D symbol
are trademarks of Dolby Laboratories.

**DTS" and DTS Digital Surround" are

registered trademarks of DTS, Inc.

Amplifier section

HT-SF1100 only

Power Output

Stereo mode (rated) 70 W + 70 W
(4 ohms at 1 kHz.
THD 1%)

Surround mode (reference)
RMS Output
FRONT: 143 W/ch
(With SS-MSPZOOO)
CENTER: 143 W
(With SSACNPZOOO)
SURZI: 143 W/ch
(With SS-SRPZOOO)
SUBWOOFERZI: 285 W
(With SS-WPZOOO)

HT-SSI 1 00 only

Power Output

Stereo mode (rated) 70 W + 70 W
(4 ohms at 1 kHz,
THD 1%)

SPECIFICATIONS

Surround mode (reference)
RMS Output
FRONT: 143 W/ch
(W11h SS~MSP1100)
CENTERZ): 143 W
(W11h SS-CNP] 100)
SURZI: 143 W/ch
(W11h 53512131100)
SUBWOOFERZI: 285 W
(W11h SS-WPl 100)

Measured under the foIlowtng conditions:

Area code
CEL, CEK

Power requirements
230 V AC, 50 Hz

ZReferent:e power output for front, center. surround
speakers and subwooter. Depending on the sound
field settings and the source there may be no
sound output.

Inputs

Analog Sensitivity: 1 V/50 kohms
Digital (Coaxial) Impedance: 75 ohms

Tone

Gain levels in dB, 1 dB step
Reproduction frequency range:

28 7 20,000 Hz

FM tuner section
Tuning range 87.5 7108.0 MHZ
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency

10.7 MHz

AM tuner section
Tuning range
Models of area code CEL, CEK

With 9-kHz tuning scale:
53171502 kHz
Loop antenna
Intermediate frequency

450 kHz

Antenna

- Continued on next page -

MULTI CHANNEL AV RECEIVER
