Sony str k 760 p service manual

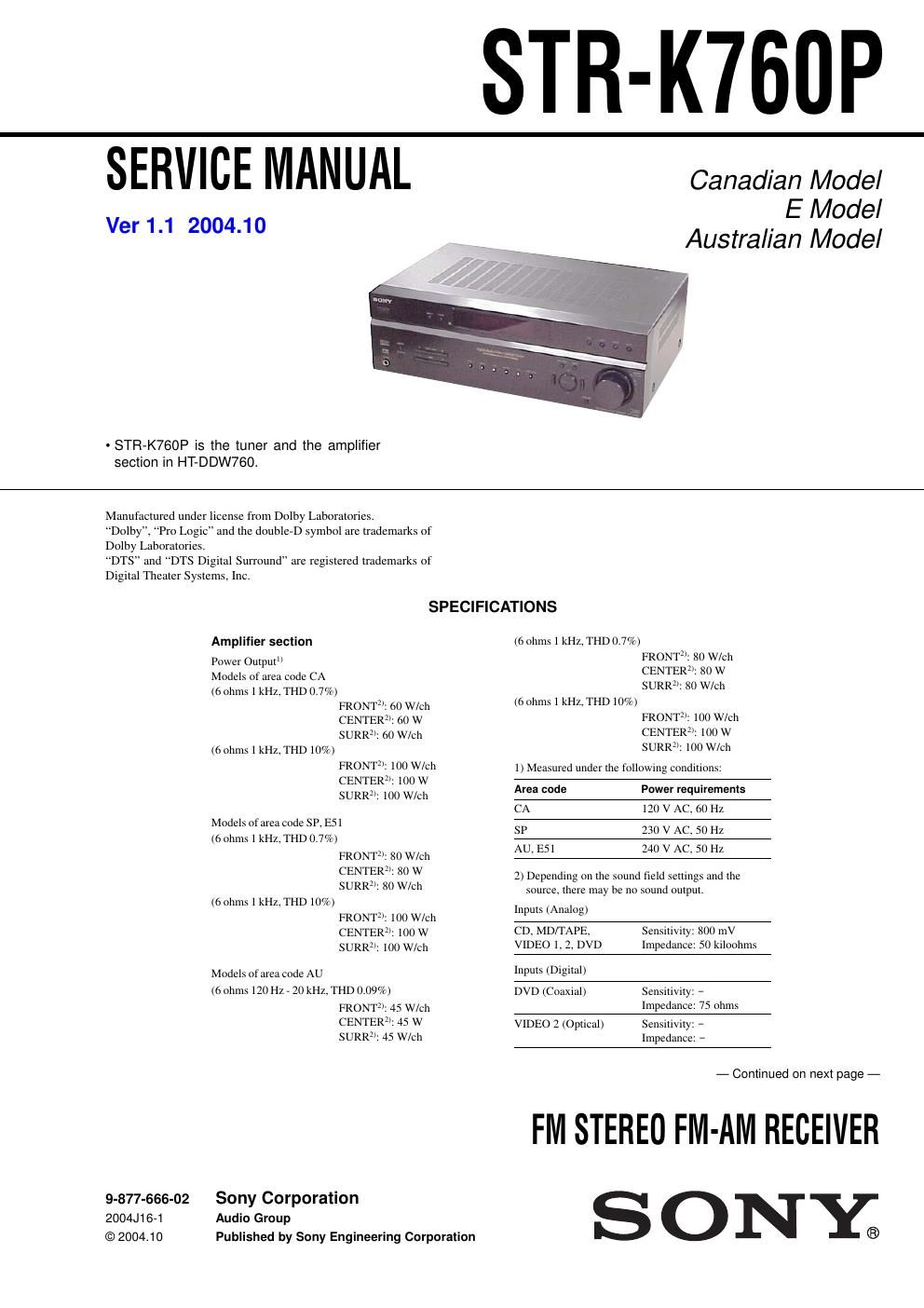

Page 1

STR-K760P

SERVICE MANUAL

Ver1.1 2004.10

Canadian Model
E Model
Australian Model

. STR-K760P is the tuner and the amplifier
section in HT-DDW760.

Manufactured under license from Dolby Laboratories.

Dolby", Pro Logic" and the double-D symbol are trademarks of

Dolby Laboratories.

"DTS" and DTS Digital Surround" are registered trademarks of
Digital Theater Systems, Inc.

9-877-565-02
2004.11 6-1
© 2004.1 0

SPECIFICATIONS

Amplifier section

Power Output"

Models of area code CA

(6 ohms l kHL. THD 0.7%)
FRONT: 60 W/ch
CENTER: 60 W
SURRZI: 60 chh

(6 ohms l kHz,THD 10%)
FRONT: 100 W/eh
CENTERZ: 100 W
SURRZ: 100 W/eh

Models of area code SP, E51

(6 ohms 1 kHz. THD 0.7%)
FRONT: 80 chh
CENTER: 80 W
SURRZI: 80 chh

(6 ohms l kHz,THD 10%)
FRONT: 100 W/eh
CENTERZ: 100 W
SURRZ: 100 W/eh

Models of area code AU
(6 ohms 120 HA , 20 kHz, THD 0.09%)

FRONT: 45 W/ch
CENTER: 45 W
SURRZ: 4S W/ch

Sony Corporation
Audio Group
Published by Sony Engineering Corporation

(6 ohms 1 kHz, THD 0.7%)
FRONT: 80 W/eh
CENTER: 80 W
SURRZI: 80 W/eh
(6 ohms l kHz,THD 10%)
FRONTI: 100 Wleh
CENTER: 100 W
SURRZJ: 100 Wleh

1) Measured under the following conditions:

Area code Power requirements
CA 120 V AC, 60 Hz
SP 230 V AC, 50 HA
AU. E51 240 V AC, 50 Hz

2) Depending on the sound field settings and the
source, there may be no sound output.

Inputs (Analog)

CD. MDITAPE.
VIDEO 1, 2. DVD

: 800 mV
Impedance: 50 kiloohms

Inputs (Digital)

DVD (Coaxial) ,
Impedanee: 75 ohms

VIDEO 2 (Optical) Sensitivity: ,

Impedance: ,

- Continued on next page -

FM STEREO FM-AM RECEIVER
S 0 NYC;

Page 2

STR-K760P

Outputs (Analog)

MD/TAPE (OUT), Voltage: 800 mV
VIDEO 1 (AUDIO OUT) Impedance: 10 kiloohms
SUB WOOFER Voltage: 2 V

Impedance: 1 kiloohms

Reproduction frequency range:
28 , 20,000 Hz
Tone

Gain levels :6 dB, 1 dB step

FM tuner section

Tuning range 87.5 7 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate Frequency 10.7 MHL

AM tuner section

Tuning range

Models of area code CA

With 1071(Hl tuning sc c: 530 , 1710 kHz
Wilh grkHz tuning scale: 531 A 1.710 kHz"
Models of area code E51

With 1071(Hl tuning scal " 530 , 1,610 kHz"
With 9rkHz tuning scale: 531 , 1.602 kHz
Models of area code SP. AU

With grkHz tuning scale: 531 , 1.602 kHz
Antenna Loop antenna
Intermediate Frequency 450 kHz

3) You can change the AM tuning scale to 9 kHz or
10 kHz. After tuning in any AM station, turn off the
receiver. While holding down PRESET TUNING +
or TUNING +. press I/Q). All preset stations will be
erased when you change the tuning scale. To reset
the scale to 10 kHz (or 9 kHz), repeat the procedure.

Video section

Inputs/Outputs

Video: 1 Vprp. 75 ohms
General

Power requirements

Area code Power requirements

CA 120 V AC, 60 Hz

AU 240 V AC, 50 Hz

SP 220 . 230 V AC, 50/60 HL
E51 120/220/240 V AC, 50/60 HL

Power consumption

Area code Power consumption
CA 225 VA

AU, SP 150 W

E51 165 W

Power consumption (during standby mode)
0.3 W
Dimensions (w/h/d) (Approx.)
430 X145 X 301.5 mm
(17 X 5 6/8 X 11 7/8 inches)
including projecting parts
and controls
Mass (Approx) 6.5 kg (14 lb 6 oz)
- Abbreviation
AU : Australian model
CA : Canadian model
E51: Chilean and Peruvian models
SP : Singapore and Malaysia models

Design and specifications are subject to change without notice.
