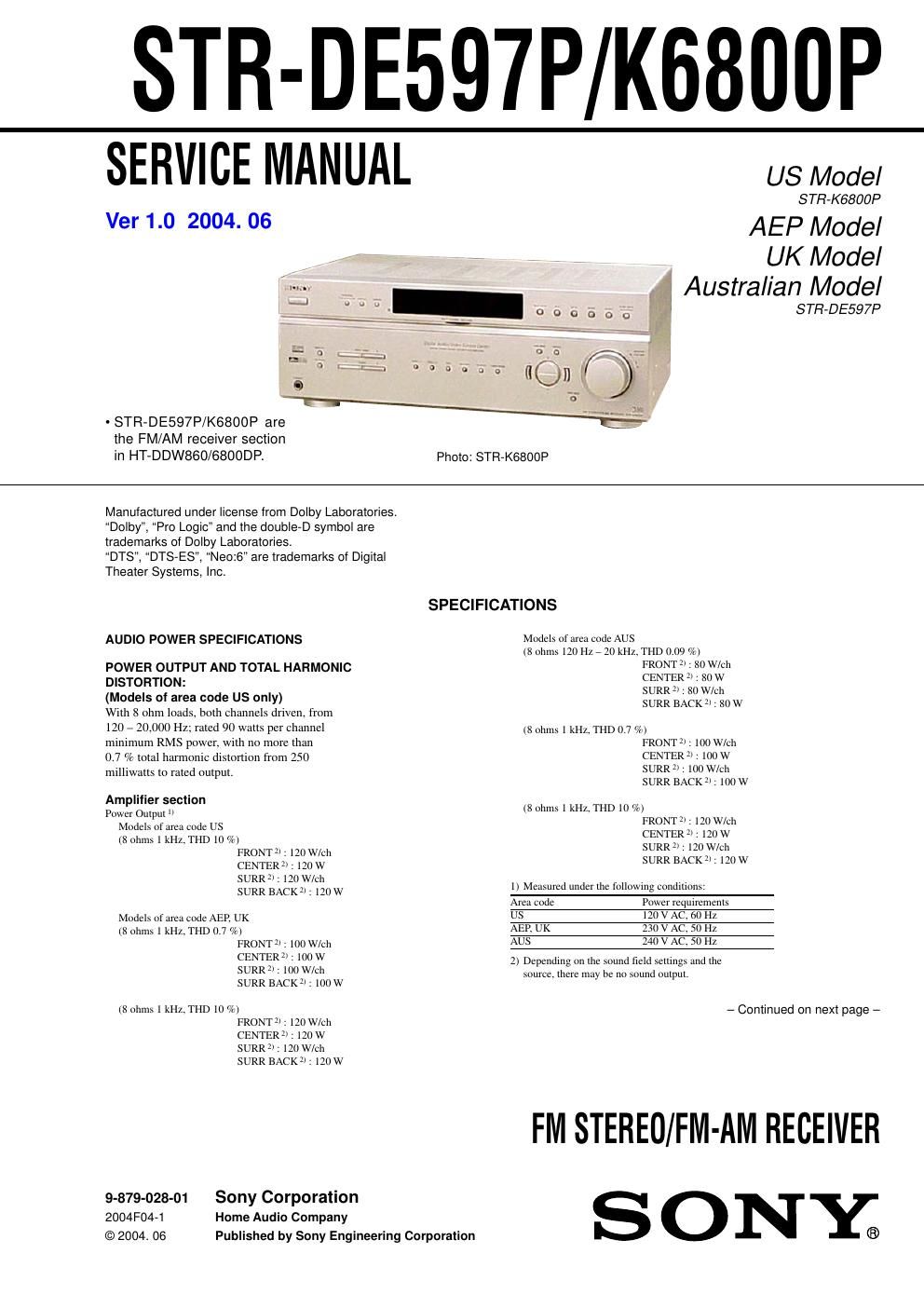

Page 1

STR-DE597P/K6800P

SERVICE MANUAL

Ver 1.0 2004. 06

US Model

STH-K6800P
AEP Model
UK Model

All Australian Model
_i H- 000000 _ STR-DE597P

- STR-DE597P/K6800P are
the FM/AM receiver section
in HT-DDW860/6800DP.

Photo: STR-KGBOOP

Manufactured under license from Dolby Laboratories.
Dolby", Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.

DTS, DTS-ES", Neo:6" are trademarks of Digital
Theater Systems, Inc.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTOHTION:

(Models of area code US only)

With 8 ohm loads both channels driven, from
120 - 0,000 Hz; rated 90 watts per channel
minimum RMS power. with no more than

0.7 % total harmonic distortion from 250
milliwatts to rated output.

Amplifier section
Power Ourpur u
Models of area code Us
(8 ohms 1 kHz, THD m "/r)
FRONTZ: 120 W/ch
CENTERZI : 120 w
SURRZi: 120 W/ch
SURR BACKIi: 120W

Models of area code AEP. UK

18 ohms 1 kHz, THD 07 Wt)
FRONT 3 : 100 W/ch
CENTERZ : 100W
SURR 2l: 100 W/ch
SURR BACKZI: 100W

(8 ohms l kHz.THD10 %)
FRONTZI: 120 W/ch
CENTER : 120 w
SURRZI: 120 W/cli
SURR BACK3: 120w

9-879-028-01 Sony Corporation
2004FO4-1 Home Audio Company
© 2004. 06 Published by Sony Engineering Corporation

Models of area code AUS

(8 ohms 120 Hz 7 20 kHz. THD 0.09 W?)
FRONT 2 : $0 W/ch
CENTER:l : ROW
SURR 21:30 W/cli
SURR BACKZ' : 80 W

(21 ohms 1 kHz. Tl-ID 0,7 r/Z)
FRONT : 100 wreir
CENTER3: 100w
SURR :1 : 100 W/ch
SURR BACKZ':100W

(8 ohms 1 kHz. THD 10 '70)
FRONT 2 : [20 W/cli
CENTER 3: 120 W
SURR 1! : 120 W/ch
SURR BACKZ':120W

1) Measured under the following Conditions:

Area code Power requuerueurs
us 120 VAC. oonz
AEP. UK 230 v AC. 50 Hz
AUS 240 v AC. 50 Hz

2) Depending on the sound field seruugs and the
source. there may be no sound output.

- Continued on next page -

FM STEREO/FM-AM RECEIVER
ONY;

Page 2

STR-DE597 P/K6800P

Inputs (Analog)
MULTI CH IN, SArCD/
CD, MD/TAPE. DVD.
VIDEO 1, 2

Inputs (Digital)
DVD (Coaxial)

VIDEO 2, SArCD/CD
(Optical)

Outputs (Analog)

MD/IAIE (OUT), Volmge: 800 mV
VIDEO 1 (AUDIO OUT) Impedance: 10 kllOOIimS
SUB WOOFER Voliage: 2 V

Impedance: 1 kiloohms

Reproduction frequency range:
28 , 20,000 Hz

dB,1d

FM tuner section

Tuning range 87.5 , 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms. unbalanced
Intermediate frequency 10.7 MHz

AM tuner section
Tuning range
Models of area code US
With lOrkHz tuning scale: 530 , 1,7l0 kHz 1»
Witli 91H; tuning scale; 531 , 1,7l0 kHz 3!
Models of area code AEP, UK. AUS
Witli 91H; tttning scale; 531 , 1,602 kHz
Antenna Loop antenna
Ititerniediate frequency 450 kHz

3) You can change the AM tuning scale to 9 kHz or 10 kHz.
After tuning in any AM station, turn off the receiver. While
holding down PRESET TUNING + or TUNING +, press
l/L'). All preset stations will be erased when yott change
the tttning scale. To reset the scale to 10 kHz (or 9 kHz).
repeat the procedure.

Video section
Inputs/Outputs
Video: 1 Vprp. 75 ohms
COMPONENT VIDEO:
(Except for models of area code AEP. UK)
v; 1 Vprp, 75 ohms
Pa/CE/BrY: 0.7 Vprpl

75 ohms
PR/CR/RrY: 0.7 Vprpi
75 ohms

80 MHz HD Pass Through

General

Power requiremenrs

Area code Power reqt reinent.

US 120VAC,6() Hz

AEP UK 230V A 0/60 Hz

AUS 0 V A 0 Hz

Power consumption 220 w

Power consumption (during standby mode)
0.3 w

Dimensions (w/h/d) (Approx)
430 x 157.5 x 312 mm
(167/21 x 6m x 12 an
inches) including
projecting parts and
controls

Mass (Approx.) 13.0 kg (17 lb 11 oz)

Design and specifications are subject to change
without notice.

- Abbrevimion
AUS :Ausimlian model
