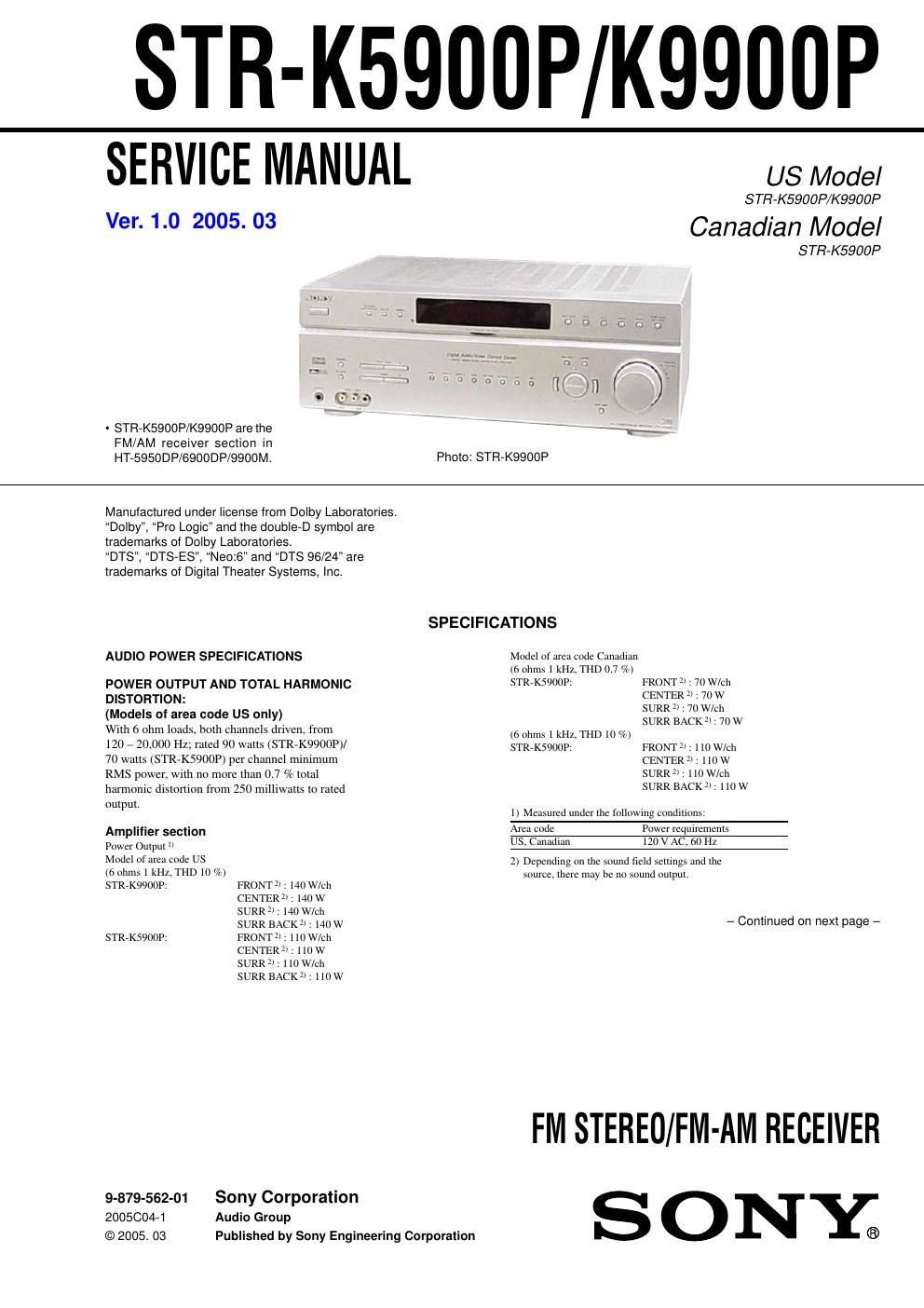

Page 1

STR-K5900P/K9900P

SERVICE MANUAL

Ver. 1.0 2005. 03

- STFI-KSQOOP/KQBOOP are the
FM/AM receiver section in
HT-5950DP/6900DP/9900M.

US Model

S TH-K5900P/K9900P

Canadian Model

S TH»K5900P

Photo: STR-KQQOOP

Manufactured under license from Dolby Laboratories.
Dolby", Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.

DTS, DTS-ES", Neo:6" and DTS 96/24" are
trademarks of Digital Theater Systems, Inc.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTOFITION:

(Models of area code US only)

With 6 ohm loads, both channels driven, from
120 - 20,000 Hz; rated 90 watts (STR-KQQOOPV
70 watts (STR-KSQOOP) per channel minimum
RMS power: with no more than 0.7 We total
harmonic distortion from 250 milliwatts [0 rated
output.

Amplifier section
Power Output "

Model or area code US

(6 ohms 1 kHz. Tl-lD ln %)
STRVKQJOOP: FRONTI: 140 W/ch
CENTERS! : 140w
SURRZI: 140 W/ch
SURR BACKil: 140w
FRONTZI: llO W/Cl]
CENTER2y : 110w
SURRZl: 110 W/ch
SURR BACK32l10W

STRVKSJOOP:

9-879-562-01 Sony Corporation
2005C04-1 Audio Group
© 2005. 03 Published by Sony Engineering Corporation

Model ofarea code Canadian
(6 ohms 1 kHz. THD 0.7 l7c)
STRVKSQOOP: FRONT 2 : 70 W/ch
CENTER:l : 70W
SURR 2 :70 W/cll
SURR BACKZ' : 70 W
(6 ohms 1 kHz. THD 10 Vol
STR7K5900P: FRONT2y : 110 W/cll
CENTER3 110W
SURR 2 : l 10 W/ch
SURR BACKZ': 110W

1) Measured under the following condittom:
Are e Power tequneme
US. Canadian 120 v AC. oo Hz

2) Depending on the sound field settings and the
source. there may be no sound output.

- Continued on next page -

FM STEREO/FM-AM RECEIVER
ONY;

Page 2

STR- K5900 P/K9900P

Inputs (Analog)
MULTI CI-I IN*.
SA7CD/CD. MD/FAPE. Impedance; 50 k ohms
DVD. VIDEO 1, 2. 3

* STR7K9900P only.

Inputs (Digital)
DVD (Coaxial)

VIDEO 2, SA7CD/CD
(Optical)

Outputs (Analog)

MD/TAIE (OUT), Voliage: 800 mV
VIDEO 1 (AUDIO OUT) Impedance: 10 k ohms
SUB WOOFER Volmge: 2 V

Impedance; 1 k ohm

Reproduction frequency range:
28 7 20,000 Hz

:6 dB. I dB

FM tuner section

Tuning range 87.5 7 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms. unbalanced
Intermediate frequency 10.7 MHz

AM tuner section

Tuning range

Model of area code US. Canadian

With 107qu; tuning scale: 530 7 1710 kHz 0
With 97kI-Iz tuning sca . 5317 1710 kHz 3!
Antenna Loop amenna
Iniernrediaie frequency 450 kHz

3) You can change the AM tuning scale to 9 kHz or 10 kHz.
Afler tuning in any AM station. Illm off the receiver. While
holding down PRESET TUNING + or TUNING +. press
I/d). All preset stations will be erased when you change
the tuning scale. To reset Ille scale in 10 kHz (or 9 kHz),
repeat the procedure.

Video section
Inputs/Outputs
Vrdeo: 1 Vp7p. 75 ohms
COMPONENT VIDEO: Y: 1 Vp7p, 75 nhnrs
Pn/Cn/B7Y: 0.7 Vp7p.
75 ohms
Pn/Cn/ILY: 0.7 Vp7p,
75 ohnrs
80 MHz HD Pass Through

General

Power requirements

Area code Power requirements
us. Canadian 120 v AC. 60 Hz

Power Consumpllon

Area code Power consumpllon
us (STR7K9900P) 190 w
us (STR7K5900P) 140 w
Canadian 200 VA

Power consumption (during standby mode)
0.2 w

Dimensions (w/h/d) (Approx)
430 x 157.5 x 310 mm
(16 7/11 x 6 2/11 x12 2/);
inches) including
projecting parts and
conlrols

Mass (Approx) 8.0 kg(171b 11 01)

Design and specifications are subject to change
without notice.
