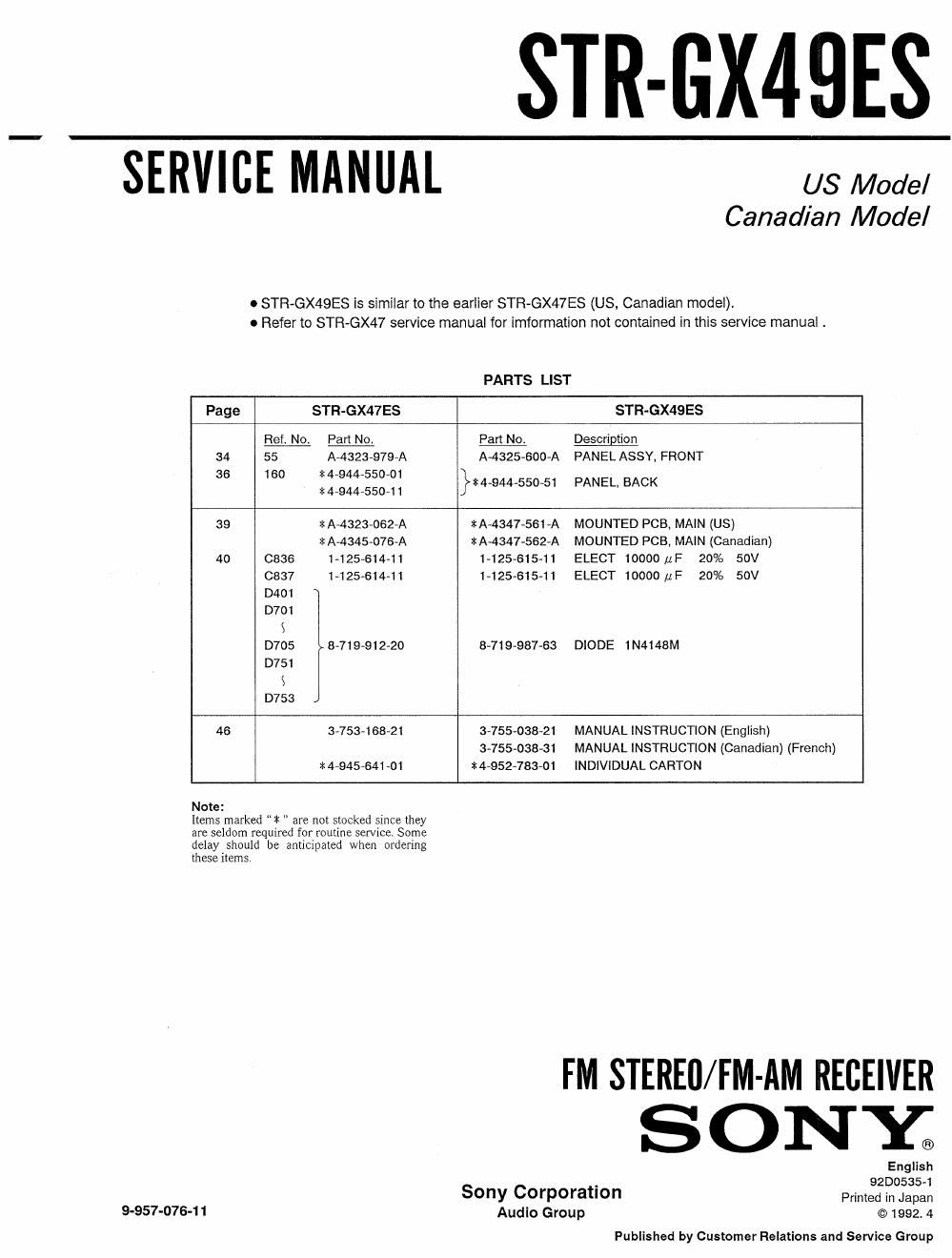

STR-GX49ES
SERVICE MANUAL
US Model
Canadian Model
0 STR»GX49ES is similar to the earlier STR-GX47ES (US, Canadian model)
0 Refer to STR-GX47 service manual for imformation not contained in this service manual .
PARTS LIST
Page STR-GX47ES STR-GX49ES
Ref. No. Part No. Part No, Description
34 55 A-4323-979-A A4325-600-A PANEL ASSY, FRONT
36 160 * 4-944-550~01
* _ . ..
>944>550_11 } 4 944 550 51 PANEL, BACK
39 >1: A-4323-OGZ-A *A4347-561
*A-4345-076-A *A-4347-562-A MOUNTED PCB, MAIN (Canadian)
40 0836 1 125614-1 1 1-125-615-11 ELECT 10000 1.: F 20% 50V
0837 1-1 25-614-11 1-125-615-11 ELECT 10000 14F 20% 50V
D401 ]
D701
5
D705 8-719-912-20 8-719-987-63 DIODE 1N4148M
D751
8
D753
46 3-753-168~21 3-755-038~21 MANUAL INSTRUCTION (English)
3-755-038-31 MANUAL INSTRUCTION (Canadian) (French)
*4-945-641-01 *4-952783-01 INDIVIDUAL CARTON
Note:
Items marked "* are not stocked since they
are seldom required for routine service Some
delay should be anticipated when ordering
these items.
9-957-076-1 1
FM STEREO/FM-AM RECEIVER
S 0 NE
English
_ 92005354
Sony Corporation Printed in Japan
Audlo Group © 1992 4
Published by Customer Relations and Service Group
