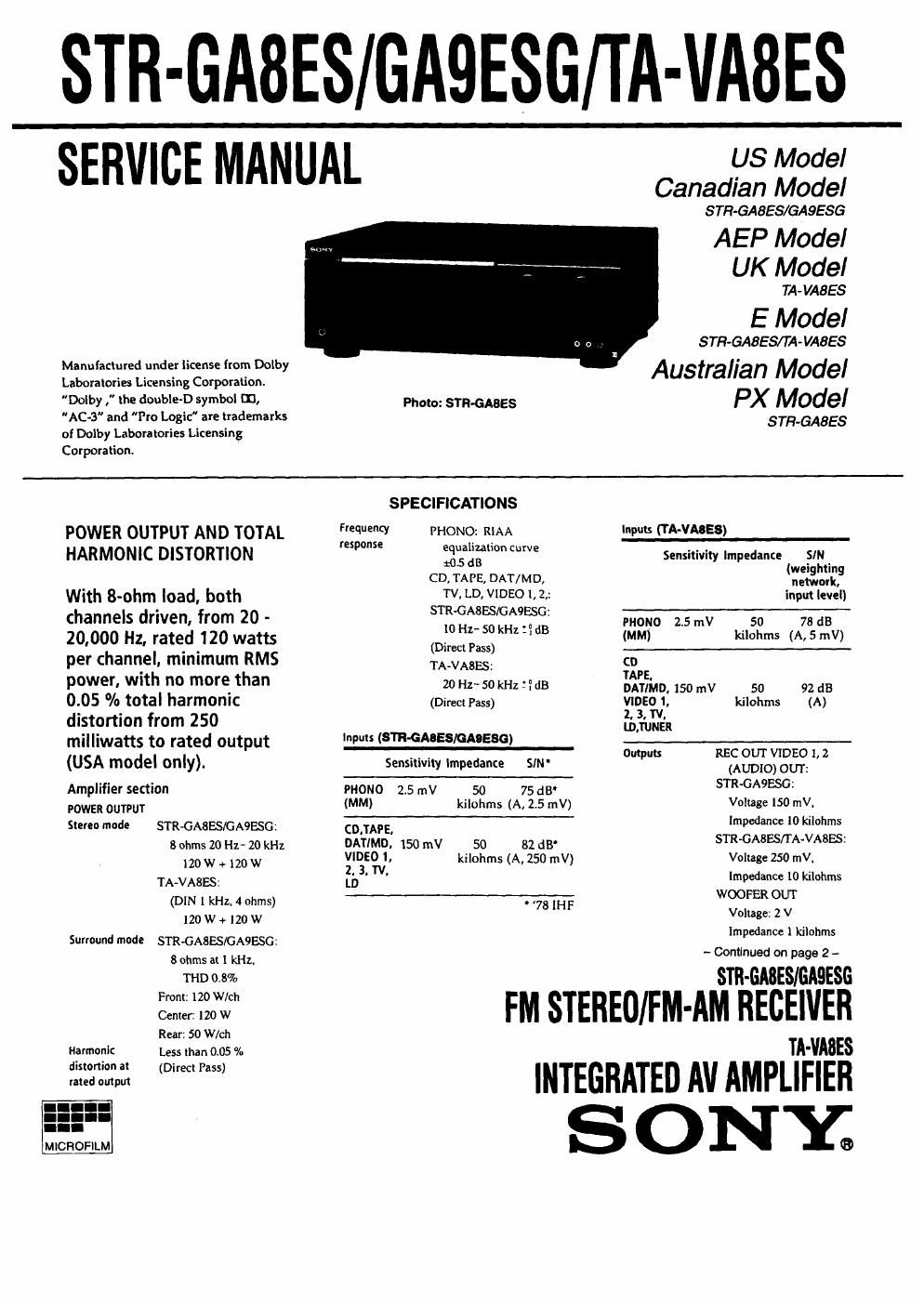

Sony str ga 8 es service manual

Page 2

PHONFS: Accepts low
and high impedance
headphones

BASS 50057 +7 dB at 70 Hz
Digital signal processor section

Modulation High Density Linear
(ND conversion) Converter

Demodulation
(DIA conversion)

High density Linear
Converter (Pulse D/A
converter)

Sampling 48 kHz
frequency

ROOM SIZE
té-step adjustable
WALL TYPE
té-step adjustable
SEAT HR and L/R
ls-step adjustable
EFFECT
ZO-step
REVERE TIME
16«step adjustable
DELAY TIME
In PRO LOGIC mode:
15.0 ms » 300 ms, 01
ms step
REAR LEVEL
-50 dB - +10 dB, 1 dB
step
CENTER LEVEL"
~50 dB - +10dl3, I dB
step
Input balance: Automatic

Surround

Only for sound fields with a CENTER
LEVEL parameter.

Band
and, Ba>>/Mid/
Treble
Turnover frequency
Bass: 125 Hz~ I kHz
Treble: 1 kHz - 8 kHz
Center frequency
Mid: 435 Hz - 8 kHz
Level
ledB, I dB step
Slope (Q)
3-step selectable, Wide)
Mid, Narrow

Equalizer

FM tuner section (STR-GAoEs/GABESG)

Tuning range 87.5 - 108.0 MHz

Antenna 75 ohms, unbalanced
terminals
Sensitivity Mono: 183 iii", 4.5 pV

Stereo: 38.3 dBi, 45 pV
Usable sensitivity id. 2 )JV (IHF)

SIN Mono: 76dl3
Stereo: 70dB

Harmonic Mono: 0.3 %
distortion at Stereo: 05 %

1 kHz

Separation 45 dB at 1 kHz
Frequency 30 H145 kHz'fido
response

Selectivity 60 dB at 400 kHz

AM tuner section (STR-GMESIGAOEBG)

With [0 kHz interval:

530- L710 kHz
With 9 kHz interval:

US. Canadian model:

53]- l.710 kHz
Australian, E. Saudi Arabia.
PX model:

531 ~ 1.620 kHz

Tuning range

Antenna Loop antenna

Usable sensitivity SOdB/m (at 1,000 kHz or

999 kHz)
SIN 54 dB (at 50 mV/m)
Harmonic 0.5 "/3. (50 mV/m,
distortion 400 kHz)
Selectivity At 9 kHz: 35 dB

At 10 kHz: 40d|3

You can change the AM tuning interval
between 9 kHz and to kHz. Alter tuning
in any AM station, turn off the receiver.
Hold down the PRESET + button and
press the POWER button. All preset
stations will be erased when you change
the interval, To reset the interval, repeat
the procedure.

Video section
Inputs STR-GASES/GAQESG:
VIDEO 1, 2, TV:
I Vp»p 75 ohms
TA-VASFS:

VIDEO I. 2, 3. LD. TV:
1 Vp-p 75 ohms

Outputs VIDEO I, 2, MONITOR:
1 Vp-p 75 ohms

General

System Tuner Section

(STR-GASES/GA9ESG)
PLL
quanz-locked digital
synthesizer system

Preamplifier section:
Low-noise NF type
equalizer

Power amplifier section:
Pure-complimentary
SEPP

-2-

Power
requirements

USA and Canadian
model:

120 V AC, 60 Hz
Australian model:

240 V AC, 50 Hz
European models:

220- 230 V AC, 50/60 Hz
Other models:

120, 220. or 240 V AC

adjustable, 50/60 Hz

Power STR-GABES/GA9ESG:
tons-mimic" USA model: 330 w
Canada model: 470 VA
Other models: 380 W
TA-VASES:
395 W
STR-GASES/GA9ESG:
Australian model:
I switched, total 120 W
Other models:
2 switched. total 120 W
TA-VABES:
I switched, total 120 W
17 x 6/tx 16 /4 inches
(430 x 160 x 425 mm)

AC outlet:

Dimensions

STRGA9ESG:

14.8 kg(321b 10 oz)
STR-GA83/TAAVASES:

14.6 kg (32 lb 3 oz)
STR-GA9ESG:

FM wire antenna (1)

AM loop antenna (1)

Remote commander

RM-VPI (remote) (I)

Size AA (R6) batteries (2)

RC antenna (1)

IR repeater (1)

Getting Started and Basic

Operation Guide (1)
STR-GA8ES:

FM wire antenna (1)

AM loop antenna (I)

Remote commander

(remote) (1)

Size AA (R6) batteries (2)
Tit-VASES:

Remote commander

(remote) ( 1)
Size AA (R6) batteries (2)

Mass (Approx)

Supplied
accessories

Design and specifications are subject to
change without notice.
