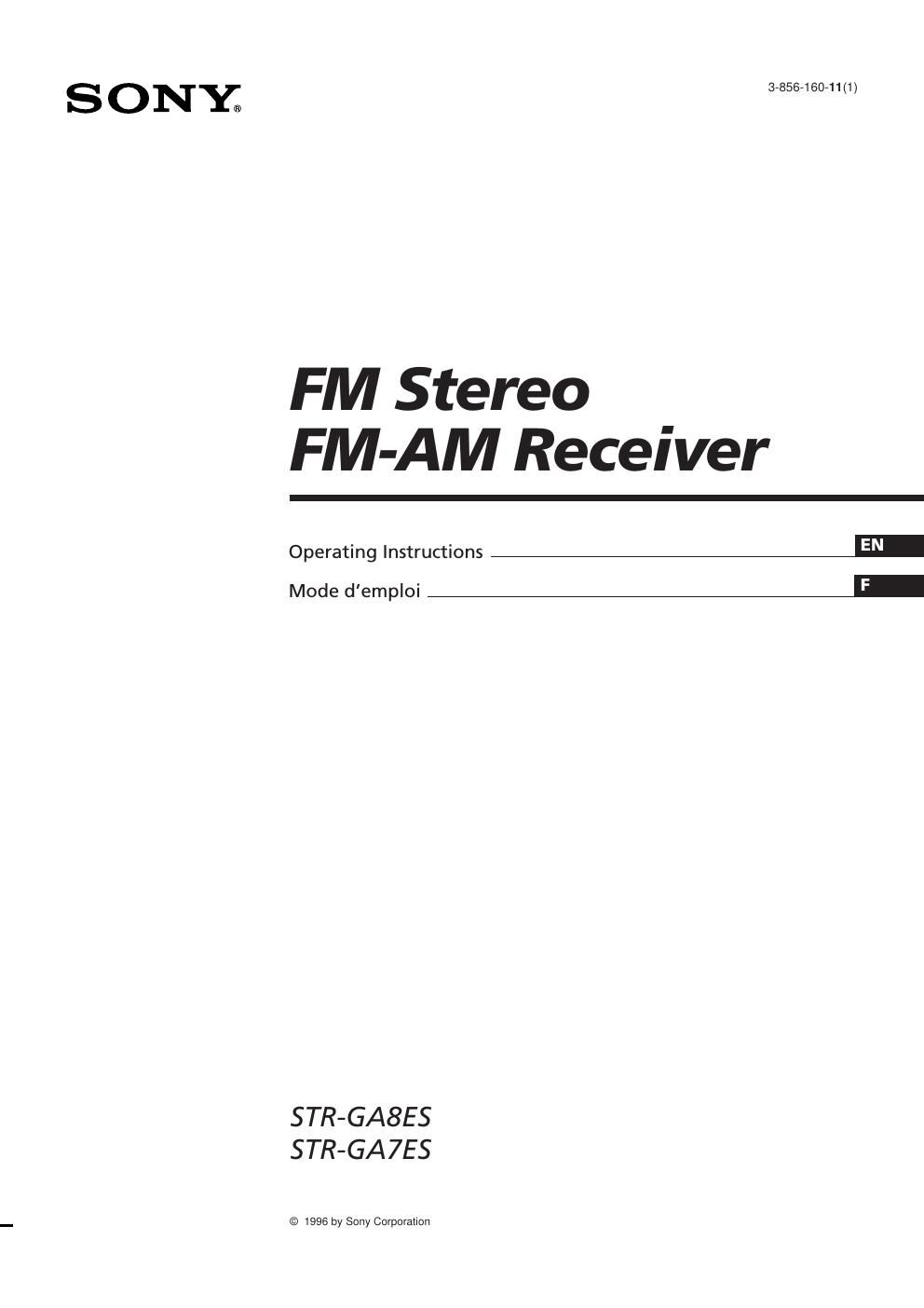

Sony str ga 7 es owners manual
This is the 65 pages manual for sony str ga 7 es owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony str ga 7 es owners manual (Ocr-read)
Page 1
2EN Precautions On safety ¥ Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further. On power sources ¥ Before operating the receiver, check that the operating voltage is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the receiver. ¥ This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the unit itself has been turned off. ¥ If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord. ¥ One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer. ¥ AC power cord must be changed only at the qualified service shop. On placement ¥ Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. ¥ Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver. ¥ Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock. ¥ Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions. On operation ¥ Before connecting other components, be sure to turn off and unplug the receiver. On cleaning ¥ Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION You are cautioned that any change or modifications not expressly approved in this manual could void your authority to operate this equipment. Note to CATV system installer This reminder is provided to call the CATV system installerÕs attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. OwnerÕs record The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. STR-GA8ES/STR-GA7ES Serial No. For the customers in Canada CAUTION TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. This symbol is intended to alert the user to the presence of uninsulated Òdangerous voltageÓ within the productÕs enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. IMPORTANT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Page 2
3EN T ABLE OF CONTENTS Getting Started Unpacking 4 Hookup Overview 4 Antenna Hookups 5 Audio Component Hookups 5 Speaker System Hookups 6 TV/VCR Hookups 8 AC Hookups 9 Before You Use Your Receiver 9 Receiver Operations Selecting a Component 10 Receiving Broadcasts 11 Presetting Radio Stations 12 Indexing 13 Recording 14 Using the Sleep Timer 15 Using Surround Sound Introduction 16 Using Pre-programmed Sound Fields 16 Getting the Most Out of Dolby Pro Logic Surround Sound 18 Taking Advantage of the Sound fields 19 Customizing the Sound Fields 20 Advanced Remote Operations Operating One Component While Using Another (background operation) 23 Changing the Factory Setting of a FUNCTION Button 23 Programming the Remote 24 Additional Information Troubleshooting 25 Specifications 26 Glossary 27 Rear Panel Descriptions 29 Remote Button Descriptions 30 Index 31 Quick Reference Guide 32 For the customers in the USA For detailed safety precautions, see the ÒIMPORTANT SAFEGUARDSÓ leaflet. If you have any question or problem concerning your receiver, please consult your nearest Sony dealer. About This Manual The instructions in this manual are for models STR-GA8ES and STR-GA7ES. Check your model number by looking at the lower right corner of the front panel. In this manual, the STR-GA8ES is the model used for illustration purposes, any difference in operation is clearly indicated in the text, for example, ÒSTR-GA8ES onlyÓ. Conventions ¥ The instructions in this manual describe the controls on the receiver. You can also use the controls on the remote if they have the same or similar names as those on the receiver. ¥ A ÒQuick Reference GuideÓ is supplied on page 32. ¥ The ÒRemote Button DescriptionsÓ section on page 30 provides an overview of the remote buttons. ¥ The following icons are used in this manual: Indicates that you can use only the remote to do the task. Indicates hints and tips for making the task easier. This receiver incorporates the Dolby Pro Logic Surround system. Manufactured under license from Dolby Laboratories Licensing Corporation. ÒDolby ,Ó the double-D symbol a and ÒPro LogicÓ are trademarks of Dolby Laboratories Licensing Corporation. EN F
