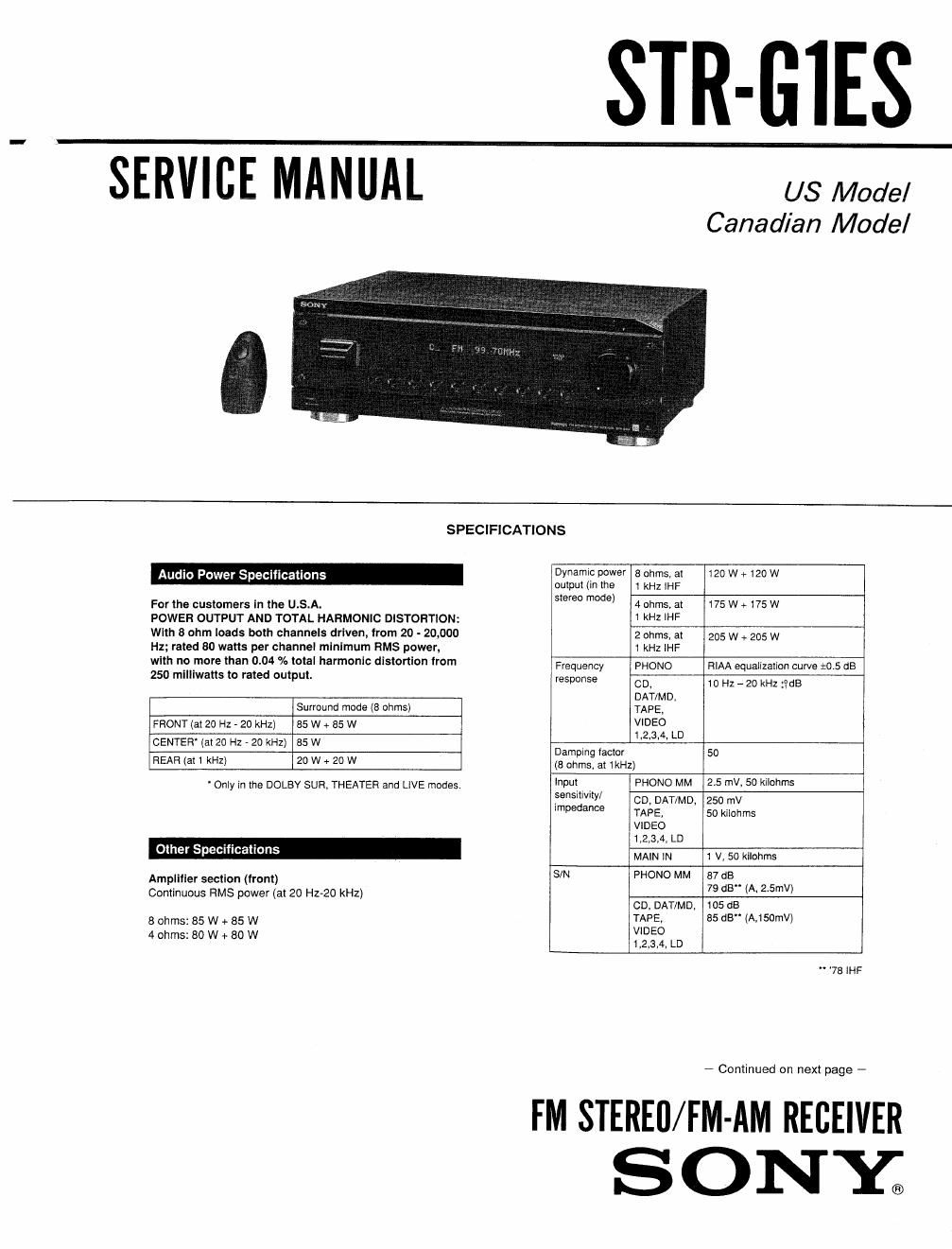

Sony str g 1 es service manual

This is the 62 pages manual for sony str g 1 es service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 62
sony str g 1 es service manual

Extracted text from sony str g 1 es service manual (Ocr-read)


Page 2

Output DAT/MD. 250 mV
sensitivity/ TAPE, 10 kilohms
impedance VIDEO 12

HEADPHONES Accepts headphones at high

and low impedance

SURROUND 1 V, 1 kilohm

OUT REAR

SURROUND 1 V. 1 kilohm

OUT CENTER

SURROUND 1 V, 1 kilohm

OUT MONO

PRE OUT 1 V. 1 kllollm
MUTING -20 dB
DBFB +10 dB at 70 Hz
LOW FILTER 90 Hz, 12 dB/oct

Digital signal processor section

Modulation (AID conversion) High Density Linear Converter
Demonstration (D/A conversion) High Density Linear Convener
(Pulse D/A Convener)
Sampling frequency 48 kHz
Equalizer Band a-oand. Bass/frebie/Mid
Turnover Bass: 125 Hz - 1 kHz
lrequency Treble: 1 kHz - 3 kHz
Center Mid: 54 HZ - 8 kHz
frequency
Level :10 dB, 1 03 step
Slope (O) 3-step selectable, Wide, Mid,
Narrow
Surround ROOM SIZE 16Astep adjustable
WALL 16-step adjustable
SEAT 16»step adjustable
POSITION FIR
SEAT 16-step adjustable
POSITION L/R
EFFECT 20-step adjustable
LEVEL
REVERB TIME is-step adjustable
DELAY TIME' 15.0 ms - 30.0 ms, 0.1 ms step
REAR LEVEL -50 to +10 (13,1 dB step
CENTER -50 to +10 dB, 1 (13 step
LEVEL""
tNPUT Automatic
BALANCE

Only in the DOLBY SUR mode.
" Only in the DOLBY SUR, THEATER and leE modes.

FM tuner section

Frequency range 87.5 - 108.0 MHz
Antenna terminals 75 ohms, unbalanced
Sensitivity at 50 dB 183 dBl, 4.5 )1V (mono)
38.3 dBl, 45 pV (stereo)

Usable sensitivity 11.2 dBl. 2 11V (IHF)
SIN Mono 80 dB

Stereo 74 dB
Harmonic Mono 0.3 %
distortion al1 kHz Stereo 05 %
IM distortion Mono 0.3 %

Stereo 0.5 %
Separation 45 dB at 1 kHz
Frequency response 30 Hz - 15 kHz :3 dB
Selectivity 60 dB at 400 kHz
Capture ratio 1.2 dB
AM suppression ratio 54 :18
Image response ratio 70 dB
IF response ratio 70 dB
Spurious response ratio 80 dB
RF intermodulation at 60 dB
800 kHz
Auto tuning threshold 30 dBt

AM tuner section
Frequency range 530 - 1,710 kHz (with 10 kHz interval)
531 - 1,710 kHz (with 9 kHz interval)

Antenna Loop antenna
Usable sensitivity 50 dB/m (at 1000 kHz or 959 kHz)
SIN 54 dB (at 50 mV/m)
Harmonic distortion 0.5% (50 mV/m, 400 Hz)
Selectivity 35 dB (9 kHz), 40 dB (10 kHz)
Auto tuning threshold 55 dB/rn

Video section

Inputs VIDE01,2.3,4, LD:1 Vp»p 75 ohms

Outputs VIDEO 12. MONITOR: 1 Vp-p 75 ohms

5 VIDEO VIDEO 1.2.3.41
INPUT LD

Luminance: 1 Vp-p 75 ohms
Chrominance: 0.286 Vp-p
75 ohms

S VIDEO VIDEO1,2.

Luminance: 1 Vp-p 75 ohms

OUT MONITOR Chrominanoe: 0.286 Vp-p
75 ohms
General
System Tuner section PLL quartz-locked digital synthesizer
system
Power amplifier Pure-complimentary SEPP
section
Power requirements 120 V AC, so Hz
Power consumption U.S.A. model: 300 W
(during standby: 5W) Canada model: 430 VA
AC outlets Three switched, total 120 W/1A max.

projecting pans and
controls)

Dimensions (including Approx. 430 x 148 x 397 mm (w/h/d)

(17 X 5 In x 15 3/4 inches)

Mass Approx. 14.0 kg (30 lb14 oz)

Supplled accessories

FM wire antenna (1)

AM loop antenna (1)

Remote commander (RM-VPt) (1)
Sony batteries sumsmsi (2)
Remote Control (RC) antenna (1)
IR repeater (1)

Quick reference guide (1)

Design and specifications are subject to change without notice.
