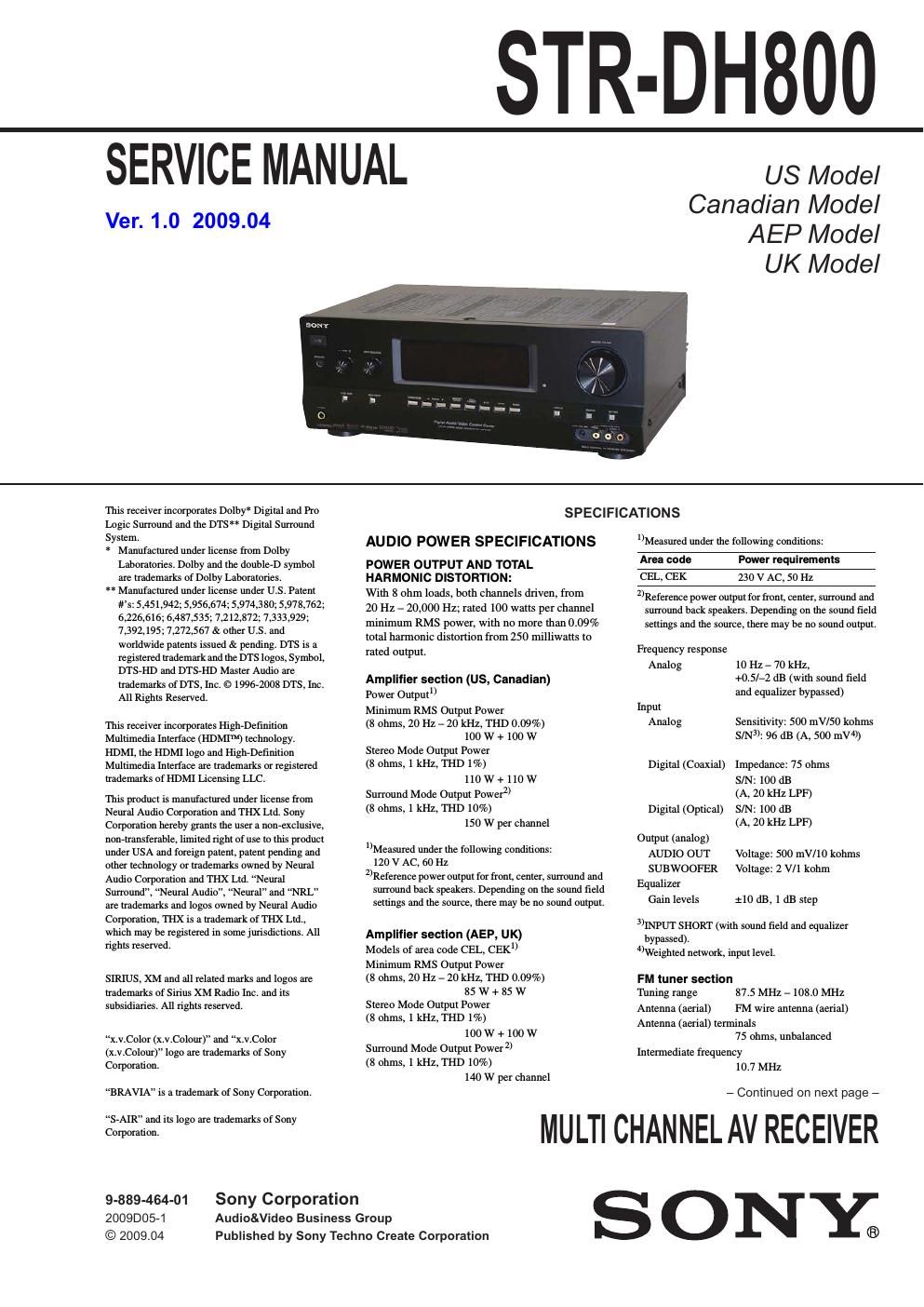

Sony str dh 800 service manual

Page 2

STR-DH800

AM tuner section

General

Tuning range Power requirements
Area code Tuning scale Area code Power requirements
lOkstwr Hump U,CA lZOVAC.60Hz
U, CA 530kHze 531 kHZr CEL, CEK 230V AC. 50/60Hz
1.7IOkHz 1,7lOkHz
CEL CEK 531 kHz Power output (DIGITAL MEDIA PORT)
' 1.602 kHz DC OUT: 5V, 0.7 A MAX

Antenna (aerial)
Intermediate frequency

Loop antenna

450 kHz
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VDEO:

Y: 1 Vp-p, 75 ohms

Power consumption

Area code Power consumption

U. CA, CEL. CEK 240 W

Power consumption (during standby mode)

0.9 W

(When CTRLJ-IDMI" in
HDM] menu is set to
CTRL OFF" and S-AIR
STBY" in SAAIR menu is set

Dimensions (width/heightldepth) (Approx)

17 x 61/4 x 12 3/4 inches
(430 x 157.5 x 322 mm)
including projecting parts
and controls

Mass (Approx.) 13 lb 5 oz (8.3 kg)
Supplied accessories

Operating instructions

Quick Setup Guide (1)

FM wire antenna (aerial) (1)

AM loop antenna (aerial) (1)

Remote commander (RM-AAPO43) (1)
R6 (size-AA) batteries (2)

Optimizer microphone (FEM-AC2) (1)

Design and specifications are subject to change
without notice.

Pa/Ca: 0.7 Vp-p, 75 ohms
Pit/CR: 0.7 Vp»p. 75 ohms
80 MHz HD Pass Through

About area codes

The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).

@@

Q
=-r- 4.xxx-xxx-xx AA
=E'

as

Area code

Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
Models of area code AA only".

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPO'SANT AYANT RAPPORT
A LA SECURITEI

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A SUR
LES DIAGRAMMES SCHEMATIQUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE FONC-
TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIECES SONY DONT LES NUMEROS SONT DON-
NES DANS CE MANUEL 0U DANS LES SUPPLEMENTS
PUBLIES PAR SONY.

2

to STBY OFF)

NOTES ON CHIP COMPONENT REPLACEMENT

- Never reuse a disconnected chip component.

- Notice that the minus side ofa tantalum capacitor may be dam-
aged by heat.

SAFETY CHECK-OUT

After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:

Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage.

Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal pans to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microamperes.).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-54OA. Follow the manufacturers instructions to use these
instruments.

2. A battery»operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for thisjob.

3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SI-I-63Trd are examples
ofa passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 V AC range are suitable. (See
Fig. A)

To Exposed Metal
Parts on Set

A C
/ voltmeter
(0. 75 V)

g 1.5 k0

Q15pF

_T_ Earth Ground
Fig. A. Using an AC voltmeter to checkAC leakage.
