Sony str dh 700 service manual

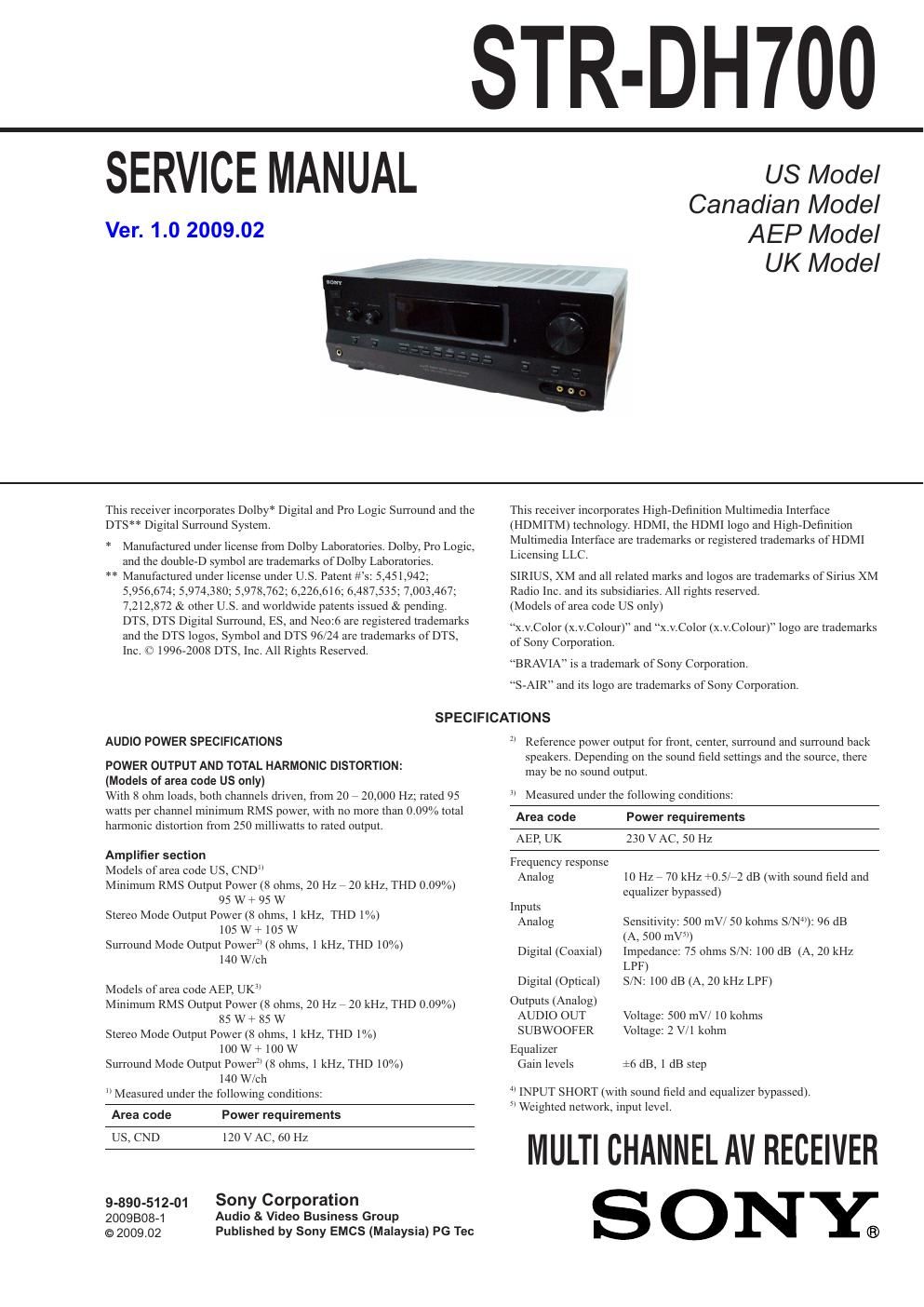

Page 1

STR-DH700

SERVICE MANUAL

Ver. 1.0 2009.02

US Model
Canadian Model
AEP Model

UK Model

This receiver incorporates Dolby" Digital and Pro Logic Surround and the
DTS Digital Surround System.

* Manufactured under license from Dolby Laboratories. Dolby, Pro Logic,
and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license under US. Patent #s: 5.451,942:
5,956,674; 5,974,380: 5,978,762; 6,226,616; 6,487,535: 7,003,467;
7,212,872 & other US. and worldwide patents issued & pending.
DTS. DTS Digital Surround, ES, and Neo:6 are registered trademarks
and the DTS logos, Symbol and DTS 96/24 are trademarks of DTS,
Inc. {Cr 1996-2008 DTS. Inc. All Rights Reserved.

This receiver incorporates High-Definition Multimedia Interface
(HDMITM) technology. HDMI, the HDMI logo and Higli-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.

SIRIUS, XM and all related marks and logos are trademarks ofSirius XM
Radio Inc. and its subsidiaries. All rights reserved,

(Models ofarea code US only)

x.v.Color (x.v.Colour)" and x.v.Color (x.v.Colour)" logo are trademarks
of Sony Corporation.

"BRAVIA" is a trademark of Sony Corporation.

"S-AIR and its logo are trademarks ofSony Corporation.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION:

(Models of area code US only)

With 8 ohm loads, both channels driven, from 20 7 20,000 Hz: rated 95
watts per channel minimum RMS power, with no more than 0.09% total
haimonic distortion from 250 milliwatts to rated output.

Amplifier section
Models ofarea code US, CND
Minimum RMS Output Power (8 ohms, 20 Hz 7 20 kHz, THD 0.09%)

95 W + 95 W

Stereo Mode Output Power(8 ohms, 1 kHz. THD 1%)
105 W + 105 W

Surround Mode Output Power" (8 ohms, 1 kHz, THD 10%)
140 Wch

Models ofarea code AEP, UK

Minimum RMS Output Power (8 ohms, 20 Hz 7 20 kHz, THD 0.09%)
85 W + 85 W

Stereo Mode Output Power (8 ohms, 1 kHz, THD 1%)
100 W + 100 W

Surround Mode Output Power (8 ohms, 1 kHz, THD 10%)
140 Wich

"Measured under the folloWing conditions:

Area code Power requirements
US,CND 120 VAC, 60 Hz
9-890-512-01 Sony Corporation
20098084 Audio & Video Business Group
©2009,02 Published by Sony EMCS (Malaysia) PG Tec

7 Reference power output for front, center, surround and surround back
speakers. Depending on the sound field settings and the source, there
may be no sound output.

Measured under the following conditions:

Area code
AEP, UK

Power requirements
230 V AC, 50 Hz

Frequency response

Analog 10 Hz 7 70 kHz +0.5/72 dB (with sound field and
equalizer bypassed)
Inputs
Analog Sensitivity: 500 mV/ 50 kohms S/N'): 96 dB

(A. 500 mV)

Impedance: 75 ohms SN: 100 dB (A, 20 kHz
LPF)

SW: 100 dB (A. 20 kHz LPF)

Digital (Coaxial)

Digital (Optical)

Outputs (Analog)
AUDIO OUT Voltage: 500 mV/ 10 kohms
SUBWOOFER Voltage: 2 WI kohm
Equalizer

Gain levels 76 dB, 1 dB step

INPUT SHORT (With sound field and equalizer bypassed).
5' Weighted network, input level.

MULTI CHANNEL AV RECEIVER

SONY.

Page 2

STR-D H700

FM tuner section

Tuning range 87.5 7108.0 MHZ
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced

Intermediate frequency 10.7 MHZ

AM tuner section
Tuning range

Area code Tuning scale
10 kHz step 9 kHZ step
US, CND 530 7 5317
1.710 kHz 1,710 kHz
AEP, UK 7 531 7
1,602 kHz
Antenna Loop antenna
Intermediate frequency 450 kHZ

Video section

Inputs/Outputs
Video: 1 Vp-p/75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p/75 ohms
Fla/CB: 0.7 Vp-p/75 ohms
PR/CRI 0.7 Vp-p/75 ohms
80 MHZ HD Pass Through
General
Power requirements
Area code Power requirements
US.CND 120VAC,60 HZ
AEP, UK 230 V AC, 50/60 HZ
Power output (DIGITAL MEDIA PORT)
DC OUT: 5 V, 0.7A MAX
Power requirements
Area code Power requirements
US, CND 240 W
AEP, UK 240 W

Power consumption (during standby mode)
0.3 W (when CONTROL FOR HDMI in l-IDMI-
menu is set to CTRL OFF" and "STANDBY" in
S-AIR menu is set to STBY OFF")

Dimensions (w/h/d) (Approx.)
17 X 61/4 X 12 3/4 inches (430 X 157.5 x 322 mm)
including projecting parts and controls

Mass (Approx) 17 lb 11 oZ (8.0 kg) (US, CND)
8.0 kg (AEP, UK)

Supplied accessories

Operating instructions (this manual)

Quick Setup Guide (1)

FM wire antenna (aerial) (1)

AM loop antenna (aerial) (l)

RM-AAU021 Remote Commander (1)

R6 (size-AA) batteries (2)

Optimizer microphone (ECM-ACZ or ECM-ACZa) (1)

Design and specifications are subject to change without notice.

- Abbreviation
CND :Canadian model
