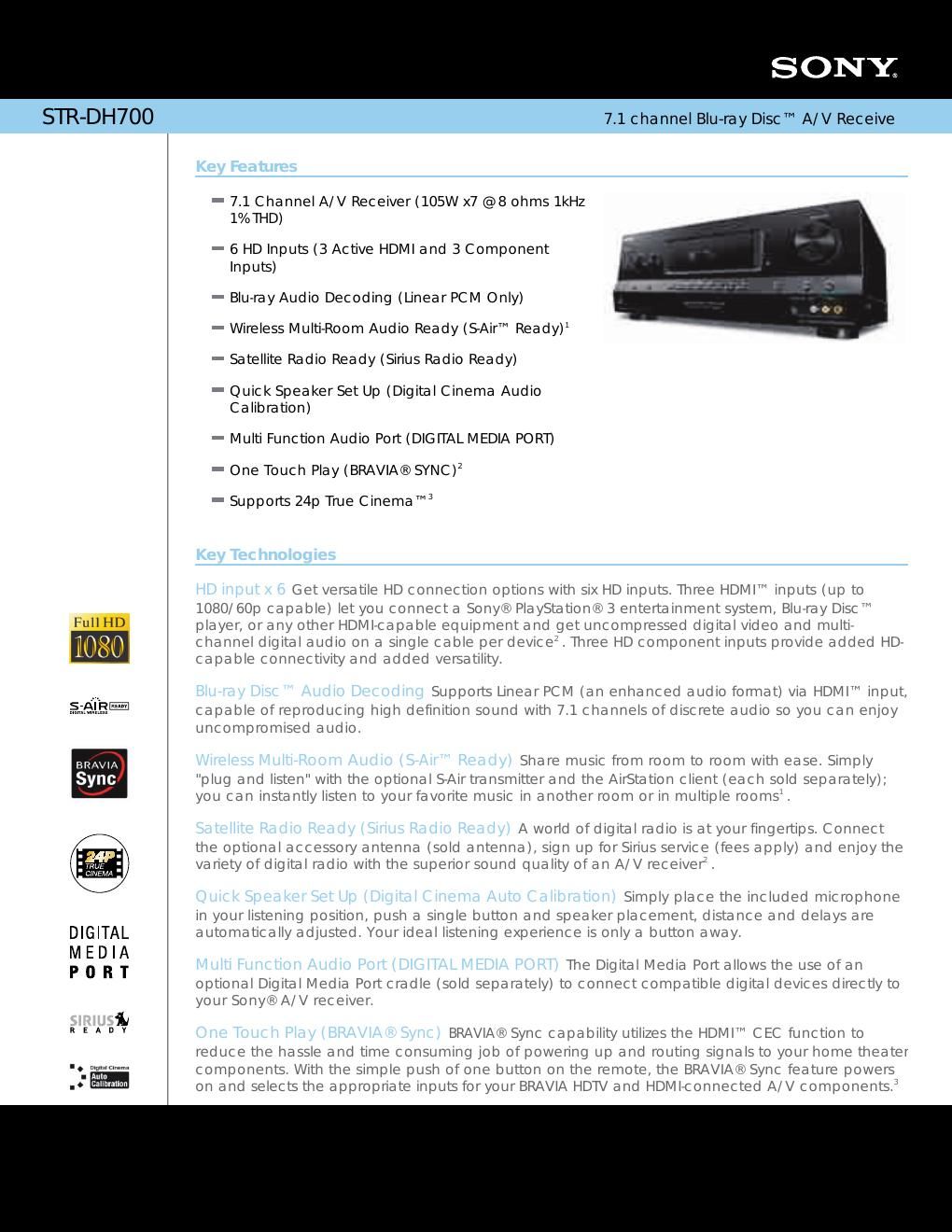

Sony Electronics Inc. - 16530 Via Esprillo - San Diego, CA 92127 - 1.800.222.7669 - www.sony.com Last Updated: 06/29/2009 STR -DH700 7.1 channel Blu - ray Disc ™ A/V Receive       Please visit the Dealer Network for current information at www.sony.com/dn Features Audio dts ® Decoding: Yes Dolby ® Digital Decoding: Yes Dolby ® Digital EX Decoding: Yes dts ® - ES Decoding: Yes (MATRIX 6.1, DISCRETE 6.1) dts ® 96/24 Decoding: Yes dts ® NEO:6 Decoding: Yes Dolby ® Pro Logic ® Decoding: Yes Dolby ® Pro Logic ® II Decoding: Yes Dolby ® Pro Logic ® IIX Decoding: Yes Dolby ® Digital Dual Mono: Yes Digital Cinema Sound ™ Technology: Yes 96k/24Bit PCM: Yes Cinema Studio EX. A/B/C mode: Yes LPCM: Yes via HDMI ™ input S -Air Ready: Yes Convenience A/B Speaker Switch: Yes (A / B) Digital Cinema Auto Calibration: Bronze (Mic - Mono) Specifications Audio Impedance: 8 Ohms Channel Power Rating: 7.1 Channel Power Rating: 105W x 7 Amp Power (8 ohms, 1KhzTHD 1.0%) Sound Fields: Cinema - 3; Music - 6; Auto Format Decoding - 11; 2 Channel - 2; Headphone - 2 Tuner Type: Auto Tuning, Direct Tuning, Station Name A/V Sync: Yes (fixed) - 60ms/48kHz DCAC: Yes (Mono) Equalizer: BASS and Treble control Sub Woofer Crossover: 13 Point (40 -160Hz) Bi -AMP: Yes Bravia ® Sync ™ : Yes Convenience Preset Memory: 90 (30 Sirius, 30 FM, 30 AM) AM/FM Memory Presets: 30 AM, 30 FM Auto Tuning: Yes Direct Tuning: Yes Sleep Timer: Yes Station Name Display: Yes Sirius Radio Ready: Yes - with optional accessory Inputs and Outputs Component Video (Y/Pb/Pr ) Input(s): 3 (Rear) Digital Media Port: 1 (Rear) HDMI ™ Connection Output(s): 1 (Rear) HDMI ™ Connection Input(s): 3 (Rear) 2  4  Optical Audio Input(s): 2 (Rear) Coaxial Audio Digital Input(s): 1 (Rear) Component Video (Y/Pb/Pr) Output(s): 1 (Rear) HD Component Video Input(s): 3 (Rear) HD Component Video Output(s): 1 (Rear) Composite Video Input(s): 4 (1 Front/3 Rear) Composite Video Output(s): 1 (Rear) RCA Audio Input(s): 5 (Rear) RCA Audio Output(s): 2 (Rear) Subwoofer Output(s): 1 (Rear) Antenna Terminal (AM Loop): 1 (Rear) Antenna Terminal (FM 75 Ohm): 1 (Rear) Headphone Output(s): Yes (Gold) Power Power Requirements: 120V 60Hz Power Consumption (in Operation): 240W Power Consumption (in Standby): 0.3W Hardware Remote Control: U - RM, RM -AAU021 Speaker Speaker Terminal Type: A: Front (Screw)/Others(Push), B:Push Service and Warranty Information Limited Warranty Term: 2 Year Parts and Labor Weights and Measurements Weight (Approx.): 17.6 lbs. (8kg) Dimensions (Approx.): 16.9 x 6.2 x 12.6 in (430 x 157.5 x 322mm) Supplied Accessories RM -AAU021 Remote 2 AA Batteries Mono Microphone for setup Owners Manual Quick Start Guide Color: Black UPC Code: 027242753532 1. Requires Digital Media Port accessory compatible with the device (sold separately). 2. Transmits up to 164 feet. Signal and sound quality may vary. 3. Each product must include BRAVIA ® Theatre Sync ™ feature. Please refer to owner s manual for compatibility. 4. Sirius requires optional antenna and subscription service. 5. iPod ® support is limited based upon which optional Digital Media Port is being used. The TDM - IP10 will support the following players: iPod ® touch, iPod ® classic, iPod ® Nano 1st, 2nd & 3rd generation, iPod ® 4th& 5th generation &iPod ® Mini. The TDM - IP 50 adds iPhone ™ support as well. ©2009 Sony Electronics Inc. All rights reserved.  Sony, BRAVIA, BRAVIA Sync, Walkman are trademarks of Sony. HDMI and the HDMI logo and are trademarks or registered trademarks of HDMI Licensing LLC. iPod is a trademark of Apple Computer, Inc. All other trademarks are property of their respective owners.  Features and specifications are subject to change without notice. All weights and measures are approximate.
