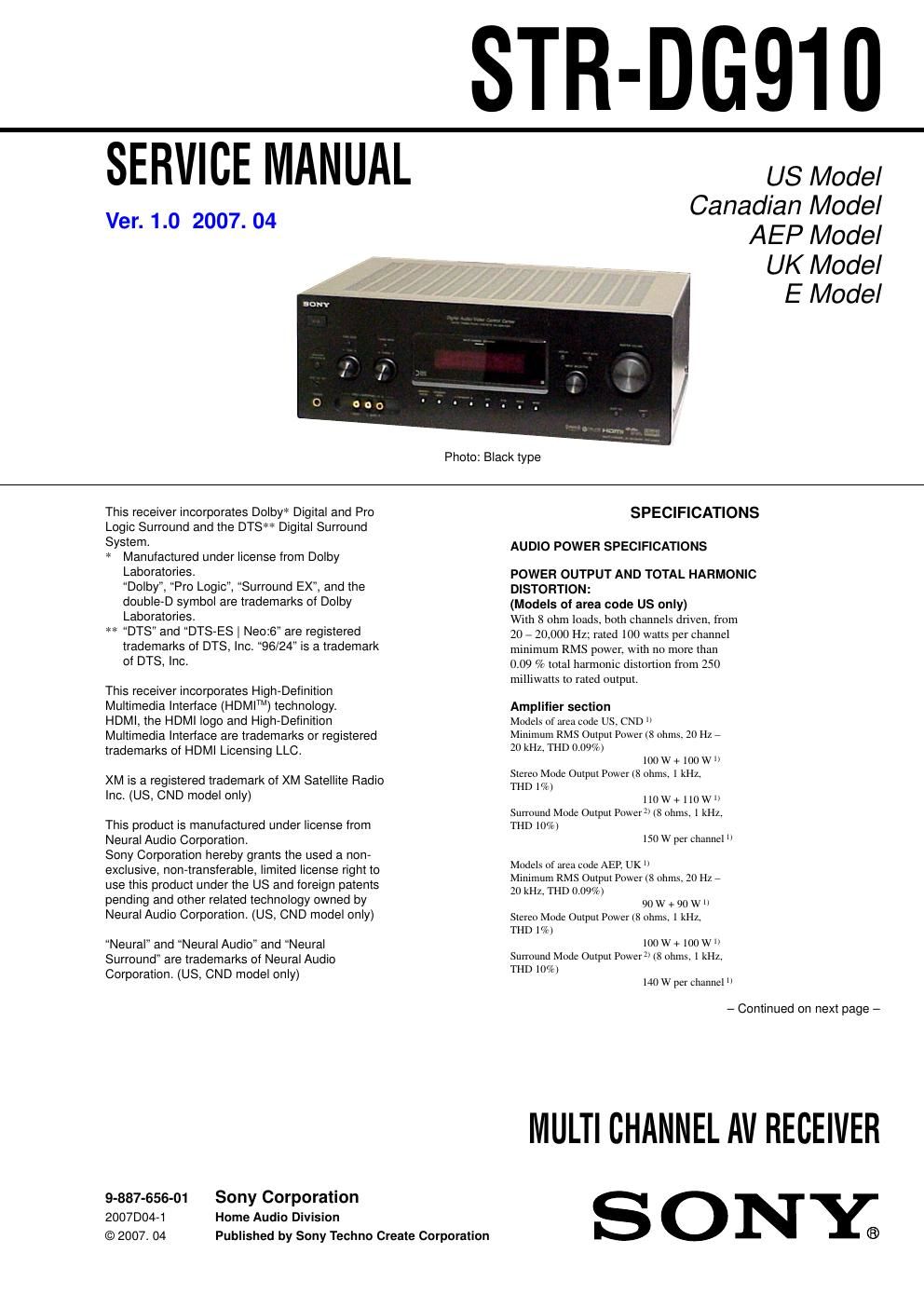

Page 1

-DGQ10

SERVICE MANUAL

Ver. 1.0 2007. 04

US Model
Canadian Model
AEP Model

UK Model
E Model

Photo: Black type

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTSM Digital Surround

System.

* Manulactured under license from Dolby
Laboratories.
Dolby", Pro Logic", Surround EX", and the
double-D symbol are trademarks of Dolby
Laboratories.

** DTS and DTS-ES I Neo:6" are registered
trademarks ol DTS, Inc. 96/24" is a trademark
of DTS, Inc.

This receiver incorporates High-Definition
Multimedia Interface (HDMITM) technology.

HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.

XM is a registered trademark of XM Satellite Radio
Inc. (US, CND model only)

This product is manulactured under license from
Neural Audio Corporation.

Sony Corporation hereby grants the used a non-
exclusive, non-transferable, limited license right to
use this product under the US and loreign patents
pending and other related technology owned by
Neural Audio Corporation. (US, CND model only)

Neural" and Neural Audio" and Neural
Surround" are trademarks of Neural Audio
Corporation. (US, CND model only)

9-887-656-01 Sony Corporation
2007D04-1 Home Audio Division
© 2007. 04 Published by Sony Techno Create Corporation

SPECIFICATIONS

AU DIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:

(Models of area code US only)

With 8 ohm loads, both channels driven, from

20 - 20,000 HZ; rated 100 watts per channel
minimum RMS power, with no more than

0.09 7: total harmonic distortion from 250
milliwutts to rated output.

Amplifier section
Models of area code US. CND n
Mlnimum RMS Output Power (8 ohms. 20 Hz ,
20 kHz. TI-ID 0.09%)

100 w + 100 w h
Srereo Mode Output Power (8 ohms, 1 kHz.
Tl-lD 1%)

1 10 w + 1 10 w o
Surround Mode Output Power 21(8 ohms, 1 kHz.
Tl-lD 10%)

150 w per ohnnnel n

Models of area code AEP. UK I!
Mlnimum RMS Output Power (3 ohms. 20 Hz ,
20 kHz. TI-ID 0.09%)

90 w + 90 w I!
Stereo Mode Output Power (8 ohms, 1 kHz.
THD 1%)

100 w + 100 w 1»
Surround Mode Output Power 21 (8 ohms. 1 kHz.
THD 10%)

140 w per channel 1,

- Continued on next page -

MULTI CHANNEL AV RECEIVER
