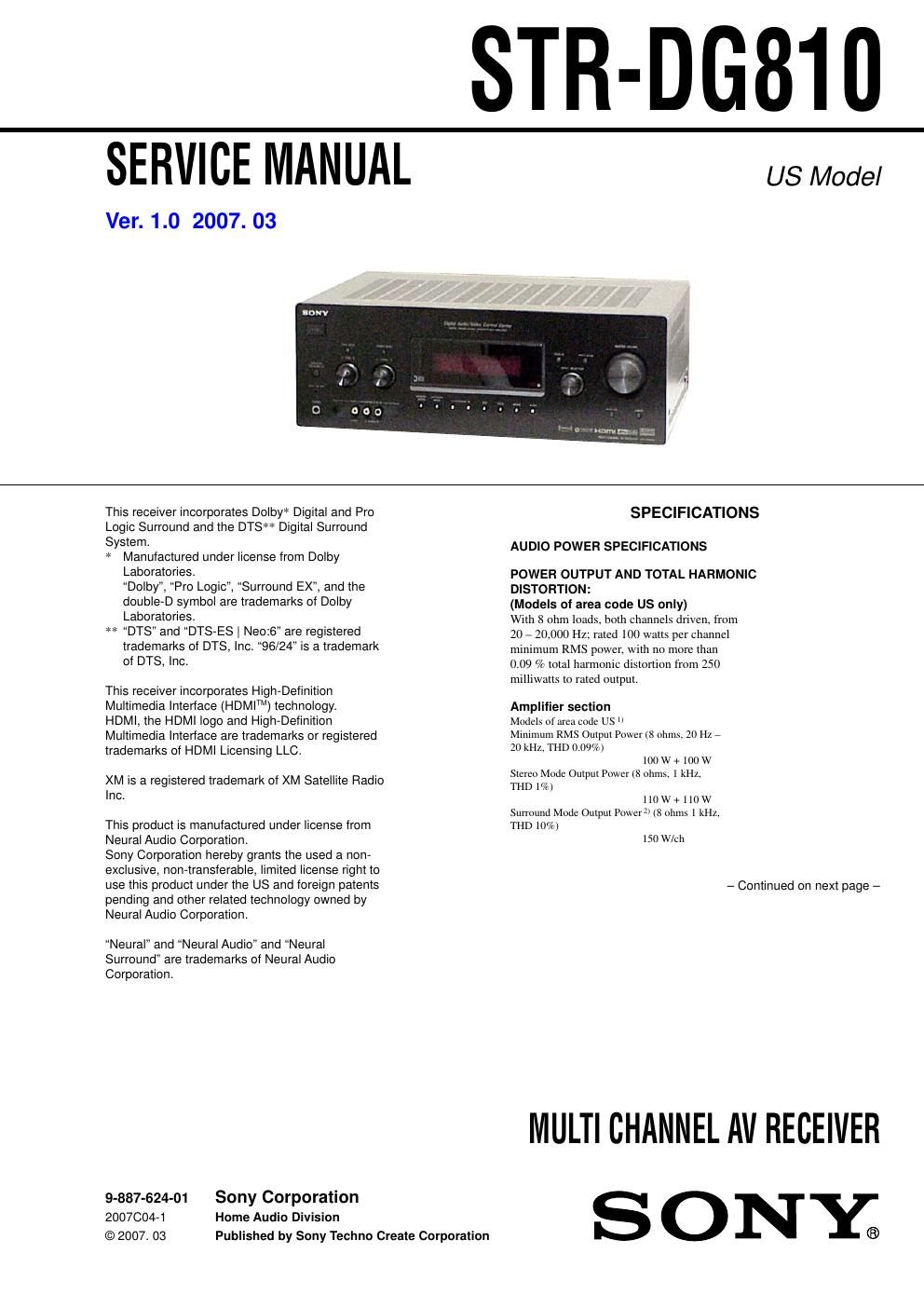

Page 1

STR-DGB10

SERVICE MANUAL

Ver. 1.0 2007. 03

US Model

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTS** Digital Surround

System.

* Manulaotured under license from Dolby
Laboratories.
Dolby", Pro Logic, Surround EX", and the
double-D symbol are trademarks of Dolby
Laboratories.

** DTS and DTS-ES I Neo:6" are registered
trademarks oi DTS, Inc. 96/24" is a trademark
of DTS, Inc.

This receiver incorporates High-Definition
Multimedia Interface (HDMITM) technology.

HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.

XM is a registered trademark of XM Satellite Radio
Inc.

This product is manutactured under license from
Neural Audio Corporation.

Sony Corporation hereby grants the used a non-
exclusive, non-transferable, limited license right to
use this product under the US and toreign patents
pending and other related technology owned by
Neural Audio Corporation.

Neural and Neural Audio" and Neural
Surround" are trademarks of Neural Audio

Corporation.

9-887-624-01 Sony Corporation

2007C04-1 Home Audio Division

© 2007. 03 Published by Sony Techno Create Corporation

SPECIFICATIONS

AU DIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:

(Models of area code US only)

With 8 ohm loads, both channels driven, from

20 - 20,000 HZ; rated 100 watts per channel
minimum RMS power, with no more than

0.09 7: total harmonic distortion from 250
milliwutts to rated output.

Amplifier section
Models of area code US It
Minimum RMS Output Power (8 ohms. 20 Hz ,
20 kHz. TI-ID 0.09%)

100 w + 100 w
Stereo Mode Output Power (8 ohms, 1 kHz.
THD 1%)

1 10 w + 1 10 w
Surround Mode Output Power 2t (8 ohms I kHz.
THD 10%)

150 W/clt

- Continued on next page -

MULTI CHANNEL AV RECEIVER
ONY;

Page 2

STR-DG810

1) Measured under Ihe following condllion

Area code Power requirernenis
US 120 V AC. 60 Hz

2) Reference power ouipui for from cenrer, surround and
surround back speakers. Depending on ihe sound field
senings and ihe source. ihere may be no sound onipui.

Frequency response
Analog 10 Hz , 70 kHz
+0.5/72 dB (wiih sound
field and equalizer bypassed)

Inpuis
Analog Sensiiivi '00 mV/
50 kohms
SIN I) : 96 dB
(A, 500 mV 4»)
Dignal (Coaxial) Irnpedance: 75 ohms
SIN: 100 dB
(A, 20 kHz LPP)
Digiial (Opiical) SIN: 100 dB
(A, 20 kHz LPF)
Ouipui (Analog)
AUDIO OUT Volrage: 500 mV/ 10 kohms
SUB WOOFER Volrage: 2 WI kohm
Equalizer
Gain levels :10 dB. 1 dB siep

3) INPUT SHORT (wnh sound field and equalizer
bypassed).

4) Weighied neiworle inpui level.

FM tuner section

Tuning range 87.5 , 108.0 MHz
Anienna FM wire anienna
Anienna ierminals 75 ohms, unbalanced
Inierrnediaie frequency 10.7 MHz

AM tuner section
Tuning range
Models of area code US
Wiih lorkHz iuning scale: 530 , 1,710 kHz 5!
Wiih 9ekHz iuning scale: 5317 1,710 kHz 5»
Anienna Loop anienna
Iniennediaie frequency 450 kHz

5) You can change ihe AM inning scale lo 9 kHz or 10 kHz.
Afrer inning in any AM slanon, rurn off ihe receiver. While
holding down TUNING MODE. press I/d). All presei
siaiions will be erased when you change ihe inning scale.
To resei ihe scale io 10 kHz (or 9 kHz). repeal ihe
procedure.

Video section
Inpuis/Ouipuis
Video: 1 Vprp/75 ohins
COMPONENT VIDEO: Y: lerp/75 ohms
Pia/CE: 0.7 Vprp/
75 ohrns
PR/CR: 0.7 Vprp/
75 ohms
80 MHz HD Pass Through

General

Power requiremenls

Area code Power requiremenis
US 120VAC.60 Hz

Power ouipul (DIGITAL MEDIA PORT)
DC OUT 5 V 700 mA

Power consurnpiion

Area code Power consumpfion
Us 250 w

Power consurnpiion (during standby mode)
0.3 w (When CONTROL"
in VIDEO nienu Is sei io

CTRL OFF")
AC Outlel
Area code AC ouileis
US l s IICIL 120 W/lA MAX

Dimensions (w/h/d) (Approx)
430 X 157.5 X 316 mm
(Ifi7/xX62/X x 124/11
inches) including
projecting pans and
comrols

Mass (Approx.) 8.1 kg (17 lb 14 oz)

Supplied accessories
PM wire anienna (1)
AM loop anienna (I)
Rernoie corninander RMeAAPmo (1)
R6 (sizerAA) baileries (2)
Opiinnzer microphone ECMeAcz (I)

Design and specificaiions are subjeci io change
wiihout nollce.
