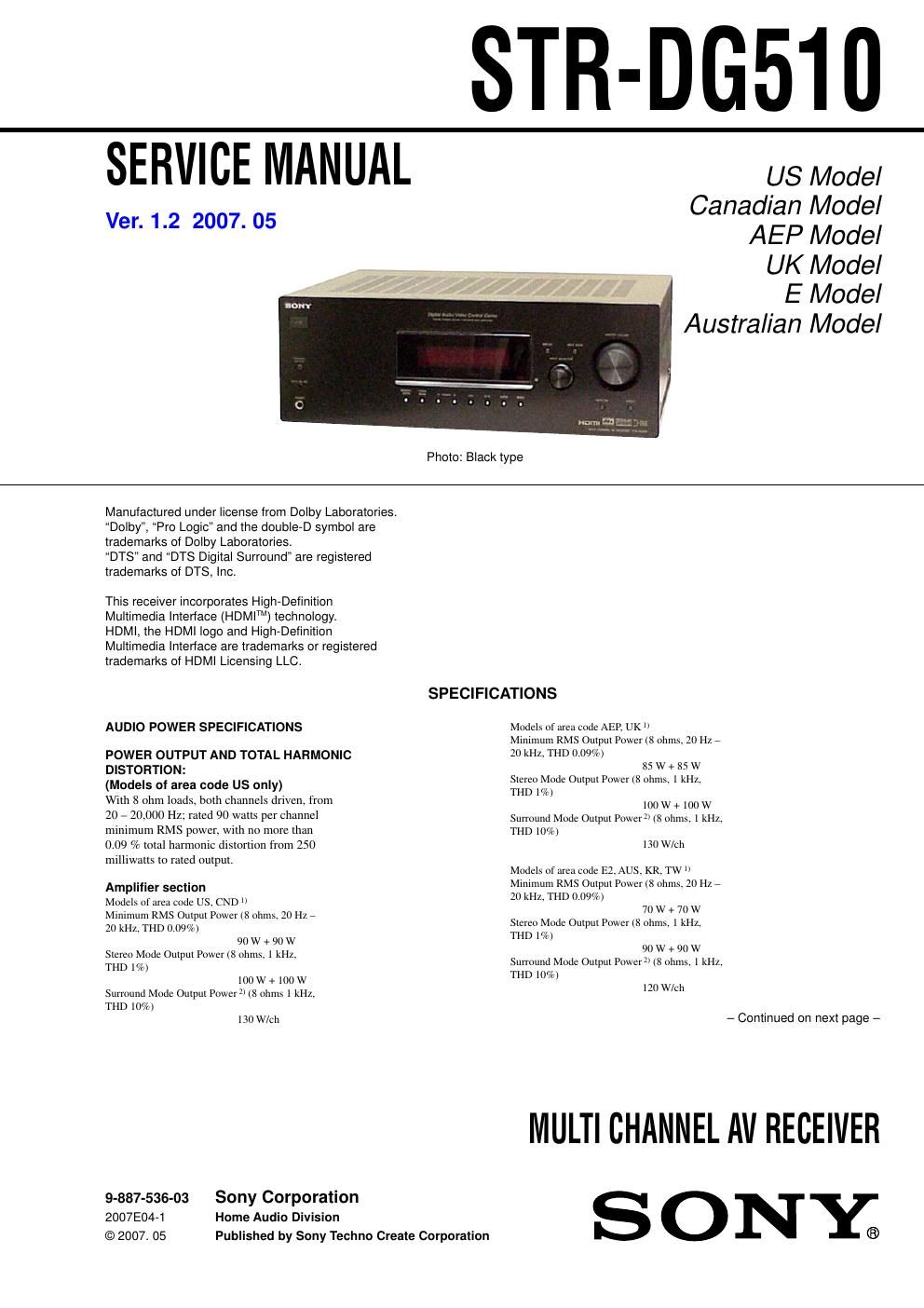

STR-DGS10
SERVICE MANUAL
Ver. 1.2 2007. 05
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Photo: Black type
Manufactured under license from Dolby Laboratories.
Dolby", Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.
DTS and DTS Digital Surround" are registered
trademarks of DTS, Inc.
This receiver incorporates High-Definition
Multimedia Interface (HDMITM) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTOFITION:
(Models of area code US only)
With 8 ohm loads, both channels driven, from
20 - 20,000 Hz; rated 90 watts per Channel
minimum RMS power, with no more than
0.09 % total harmonic distortion from 250
milliwatts to rated Output.
Amplifier section
Models of area code us. CND '1
Minimum RMS Output Power (8 ohms. 201-12 ,
20 kHz. THD 0.09%)
90 W + 90W
Stereo Mode Output Power (8 ohms l kst
THD 1%)
100 W + 100 W
Surround Mode Output Power 1 (8 ohms 1 kHz,
THD 10%)
130 chh
9-887-536-03 Sony Corporation
2007E04-1 Home Audio Division
© 2007. 05
Published by Sony Techno Create Corporation
SPECIFICATIONS
Models of area code AEP. UK It
Mmtmum RMS Output Power (8 ohms, 20 Hz ,
20 kHz, TI-ID 0.09%)
as w + 85 w
Stereo Mode Output Power (3 ohms. 1 kHz.
THD 1%)
100 w + 100 w
Surround Mode Output Power 21 (8 ohms, 1 kHz.
THD 10%)
130 chli
Models of area code E2, AUS, KR, TW h
Mmtmum RMS Output Power (8 ohms, 20 Hz ,
20 kHz, TI-ID 0.09%)
70 w + 70 w
Stereo Mode Output Power (3 ohms. 1 kHz.
TI-ID 1%)
90 w + 90 w
Surround Mode Output Power 21(8 ohms, 1 kHz.
THD 10%)
120 W/eh
- Continued on next page -
MULTI CHANNEL AV RECEIVER
ONY;
Page 2
STR-DGS10
Ver. 1.2
Models of area code MY, SP, TH "
Minimum RMS Olllpui Power (8 ohms, 20 Hz 7
20 kHz, THD 0.09%)
60 w + 60w
Stereo Mode Oulpul Power (3 ohms. 1 kHz.
THD 1%)
80 w + 80W
Surround Mode Olllpui Power:l (8 ohms. 1 kHz,
THD 10%)
120 W/ch
1) Measured under Ihe following condilion
Area code Power requirements
US. CND 120VAC, 60 Hz
AEP, UK, MY, SP, TH 230 V Ac. 50 Hz
E2, AUS 240 V AC. 50 Hz
Tw llOVAC.60 Hz
KR 220 V Ac, 60 Hz
2) Reference power culpm for frOnL center and surround
speakers. Depending on the sound field settings and the
source, there may be no sound output.
Frequency response
Analog 10 Hz , 70 kHz
+0.5/72 dB (with sound
field and tone bypassed)
Inputs
Analog Sensitivity: 500 mV/
50 kohms
S/N n : 96 dB
(A, 500 mV 4»)
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPP)
Digira1(optical) SIN: 100 (13
(A, 20 kHz LPP)
Output (Analog)
AUDIO OUT Voltage: 500 mV/10 kohms
SUB WOOEER Voltage: 2 VII kohm
Tone
Gain levels :6 dB, 1 dB step
3) INPUT SHORT (with sound field and tone bypassed).
4) Weighted network, input level.
FM tuner section
Tuning range 87.5 , 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms. unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Models of area code US, CND
Witli loekHz tuning scale: 530 , 1,710 kHz 5»
Witli 9ekHz tuning scale: 531 , 1,710 kHz P
Models of area code AEP, UKi AUS. KR. MY, SR
TH, TW
With 9rkHz tuning scale: 531 , 1,602 kHz
Models of area code E2
With lOVkHz tuning scale: '30 , 1,610 kHz 51
With 9ekHz tumng scale: 531 , 1,602 kHz 5»
Antenna Loop antenna
Inierniediaie frequency 450 kHz
5) You can change the AM tuning scale to 9 kHz or 10 kHz.
Afier tuning in any AM station, turn Off the receiver. While
holding down TUNING MODE, press I/d). All preset
stations will be erased when you change the tuning scale.
To reset the scale to 10 kHz (or 9 kHz) repeat the
procedure.
Video section
Inputs/Outputs
Video: 1 Vprp/75 ohms
COMPONENT VIDEO: Y: lerp/75 ohms
Pia/CE: 0.7 Vprp/
75 ohms
PR/CR: 0.7 Vprp/
75 ohms
80 MHz HD Pass Through
General
Power requirements
Area code Power requirements
US, CND 120VAC, 60 Hz
A P. UK
E2 120/220/240V AC. 50/60 Hz
AUS 240 v AC 50 Hz
MY, SR TH 230 , 240 v AC, 50/50 Hz
KR 220 , 230 V AC, 50/60 Hz
TW 110VAC,60Hz
Power consumption
Area code Power consumption
US, AEP, UK, E2, AUS, KR 220 w
CND 300 VA
MY, SP TH 200 w
Tw 500 w
Power consumption (during standby mode)
0.3 w
Dimensions (w/h/d) (Approx)
430 x 157.5 x 310 mm
(16m x 61/11 x 12 2/11
inches) including
projecting parts and
controls
Mass (Approx) 7.7 kg (lo lb 16 oz)
Supplied accessories
FM wire antenna (aerial) (1)
AM loop antenna (aerial) (1)
Remote commander RMVAAU013 (1)
R6 (SizerAA) batteries (2)
Optimizer microphone ECMeAcz (1)
Design and specifications are subject [0 change
wlihout Iloilce.
- Abbreviation
CND : Canadian model
AUS :Ausrralian model
E2 : 120 v AC area in E model
KR : Korea model
MY : Malaysia model
SP : Singapore model
TH :Thai model
Tw :Taiwan model
