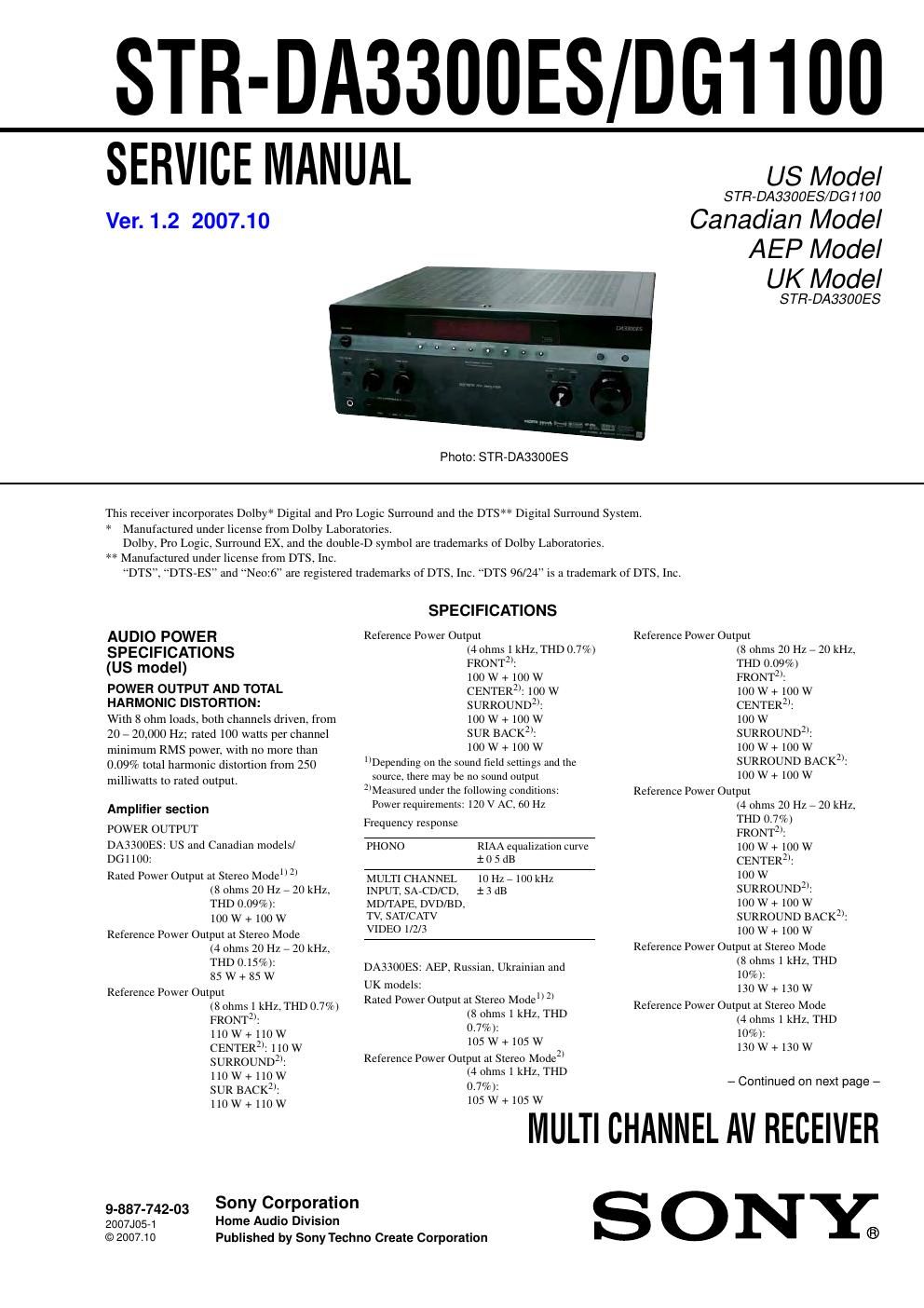

Page 1

STR-DA3300ES/DG1100

SERVICE MANUAL

Ver. 1.2 2007.10

Photo: STR-DA3300ES

US Model

S TR-DASSOOES/DG 1 100

Canadian Model

AEP Model
UK Model

STR-DA3300ES

This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System.

* Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, Surround EX, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license from DTS, Inc.

DTS, DTS-ES" and Ne0:6" are registered trademarks of DTS, Inc. DTS 96/24" is a trademark of DTS, Inc.

AUDIO POWER
SPECIFICATIONS
(US model)

POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:

With 8 ohm loads, both channels driven, from
20 - 20,000 HZ; rated 100 watts per channel
minimum RMS power, with no more than
0.09% total harmonic distortion from 250
milliwatts to rated output.

Amplifier section
POWER OUTPUT
DA3300ES: US and Canadian modelsl
DGl 100:
Rated Power Output at Stereo Mode 2)
(8 ohms 20 Hz 7 20 kHz,
THD 0.09%):
100 W + 100 W
Reference Power Output at Stereo Mode
(4 ohms 20 Hz 7 20 kHz,
THD 0.15%):
85 W + 85 W
Reference Power Output
(8 ohms l kH1,THD 0.7%)
FRONT:
l 10 W + l 10 W
CENTER: 1 10 w
SURROUND:
l 10 W + l 10 W
SUR BACK:
1 10 W + l 10 W

9.887.742_03 Sony Corporation

2007,1054 Home Audio Division

©2007.1o Published by SonyTechno Create Corporation

SPECIFICATIONS

Reference Power Output
(4 ohms 1 kHz, THD 0.7%)
FRONT:
100 w + 100 w
CENTER: 100 w
SURROUND:
100 w + 100 w
SUR BACK:
100 w +100w
Depending on the sound field settings and the
source. there may be no sound output
Measured under the followtng conditions:
Power requirements: 120 v AC. 60 Hz

Frequency response

PHONO RIAA equalization curve
: l) 5 dB

MULTI CHANNEL 10 Hz 7 100 kHz
INPUT. SArCD/CD, : 3 dB
MD/I'APE, DVD/ED,

TV. SAT/CATV

VIDEO l/2/3

DA3300ES: AEP, Russian, Ukrainian and
UK models:
Rated Power Output at Stereo Mode I) Z)
(8 ohms 1 kHz, THD
0.7%):
105 W + 105 W
Reference Power Output at Stereo Mode27
(4 ohms 1 kHz. THD
0.7%):
105 W + 105 W

Reference Power Output

(3 ohms 20 Hz , 20 kHz.
THD 0.09%)

FRONT:

100 w + 100 w
CENTER;

100 w

SURROUND:

100 w +100 w
SURROUND BACK:
100 w +100w

Reference Power Output

(4 ohms 20 Hz , 20 kHz.
THD 0.7%)

FRONT:

100 w + 100 w
CENTER:

100 w

SURROUND;

100 w + 100 w
SURROUND BACK:
100 w +100 w

Reference Power Output at Stereo Mode

(8 ohms 1 kHz, THD
10%):
130 W + 130 W

Reference Power Output at Stereo Mode

(4 ohms 1 kHz, THD
10%):
130 W + 130 W

- Continued on next page -

MULTI CHANNEL AV RECEIVER

SONY;
