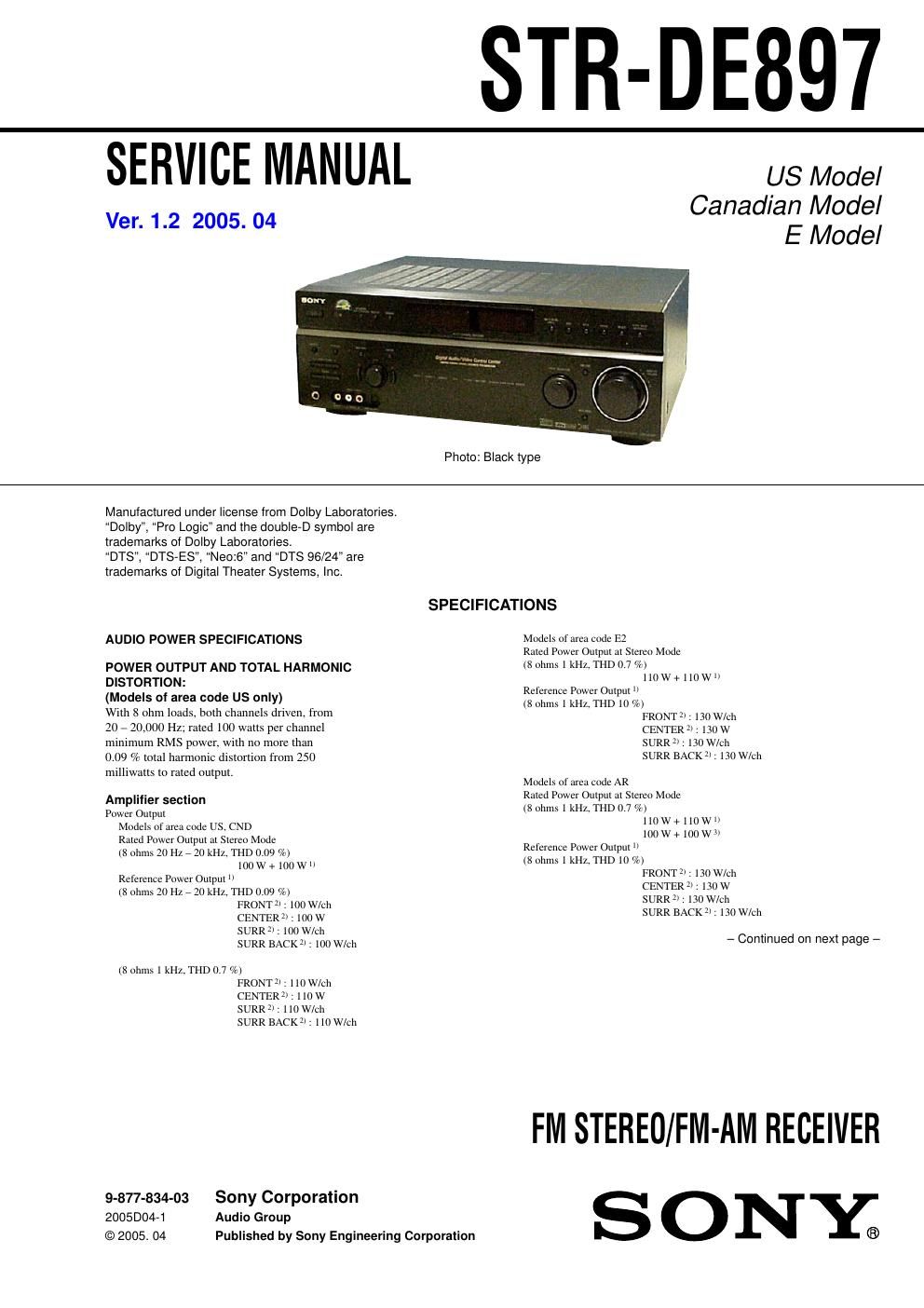

Page 1

STR-DE897

SERVICE MANUAL

Ver. 1.2 2005. 04

US Model
Canadian Model
E Model

Photo: Black type

Manufactured under license from Dolby Laboratories.
Dolby", Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.

DTS, DTS-ES", Neo:6" and DTS 96/24" are
trademarks of Digital Theater Systems, Inc.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:

(Models of area code US only)

With 8 ohm loads, both channels driven, from

20 - 20,000 Hz; rated 100 watts per Channel
minimum RMS power, with no more than

0.09 % total harmonic distortion from 250
milliwatts to rated output.

Amplifier section
Power Output
Models of area code Use CND
Rated Power Output at Stereo Mode
(8 ohms 20 Hz , 20 kHz THD 0.09 rm
100 W + 100 w I»
Reference Power Output ll
(8 ohms 20 Hz , 20 kHz THD 0.09 %)
FRONT:1 : 1m W/ch
CENTERD: 100w
SURREY: 100 W/ch
SURR BACKU: 101) W/ch

(8 ohms 1 kHz, THD 0.7 70)
FRONTII: 110 W/ch
CENTER : 110W
SURR 27:110 chh
SURR BACKZl: llOW/ch

9-877-834-03 Sony Corporation
2005D04-1 Audio Group
© 2005. 04 Published by Sony Engineering Corporation

Models of area code E2
Rated Power Output at Stereo Mode
(8 ohms 1 kHz, THD 0,7 %)
1 10 w + 1 10 w h
Reterenee Power Output n
(3 ohms 1 kHz, THD 1o %)
FRONTI» : 130W/e1t
CENTER ; 130 w
SURR 2»: 130 chh
SURR BACK 2t: 130 With

Models ot'area code AR
Rated Power Output at Stereo Mode
(8 ohms 1 kHz, THD 0,7 %)
1 10 w + 1 10 w h
100 w + 100 w r,
Reterenee Power Output n
(3 ohms 1 kHz, THD 1o %)
FRONTI» : 130W/e1t
CENTER ; 130 w
SURR 2»: 130 chh
SURR BACK 2t: 130 With

- Continued on next page -

FM STEREO/FM-AM RECEIVER
ONY;

Page 2

STR-DE897
Ver 1.1

Models of area code MY, SP

Rated Power Output at Stereo Mode

(3 ohms 1 kHz. Tl-ID 0.7 %)
90 W + 90w I)

Reference Power Output 1)

(3 ohms 1 kHz. Tl-ID 10 %)
FRONTZ': 115 WIch
CENTER 2) : 115 w
SURRZ': 115 WIch
SURR BACK 1): 115 W/ch

1) Measured under Ihe following condllion

Area code Power requirements
US. CND 120VAC: 60 Hz
E2 240 V Ac. 50 Hz
AR, MY. SP 230 V AC. 50 Hz

2) Depending on the sound field settings and the
source. there may be no sound output.

3) Measured under the following conditions:

Area code Power requirements

AR 220 V AC, 50 Hz

Frequency response

PHONO RIAA equalization curve
:QSdB
MULTI CH IN 1,2. 10H1770 kHz
SArCD/CD. TV/SAT, +0.5/72 dB (with sound
MD/I'APE. DVD: field and equalizer
VIDEO 1, 2, 3 bypassed)
Inputs (Analog)
PHONO Sensitivity: 8 niv
Impedance: 50 kiloolinis
S/Nl : 86 dB
(A, 8 mV 5)
MULTI CH IN 1. 2. Sensitivity: 500 mV
SArCD/CD. TV/SAT. Impedance: 50 kiloohins
MD/TAPE, DVD, S/N 1 : 96 dB
VIDEO 1. 2, 3 (A, 500 niv 5))

4) INPUT SHORT (with sound field and equalizer
bypassed).
5) Weighted network. input level.

Inputs (Digital)

DVD: SArCD/CD Sensitivity.
(Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
TV/SAT. SArCD/CD, Sensitivity.
MD/TAPE, VIDEO 3 Impedance: 3
(Optical) SM: 100 dB

(A, 20 kHz LPF)

Outputs (Analog)

MD/TAIE (OUT), Volmge: 500 mV
VIDEO 1, 2 Impedance: 10 klloohms
(AUDIO OUT)

SUB WOOFER Voliage: 2 V

Impedance: 1 kiloohms

Outputs (Digital)
MD/I'APE (Optical)

Equalizer
Gain levels :10 dB, 0.5 dB step

FM tuner section

Tuning range 37.5 3 103.0 Ml-Iz
Antenna FM Wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHZ
Sensitivity

Mono: 18.3 dBf. 2.2 pV/75 oliiiis

Stereo: 38.3 dBf. 22.5 iiV/75 ohnis
Useable sensitivity 11.2 dBt, 1 (M75 ohms
S/N

Mono: 76 dB

Stereo: 70 dB
Harmonic distortion at 1 kHz

Mono: 0.3%

Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response 30 Hz 3 15 kHz.

+0.5/e2 dB

Selectivity 60 dB at 400 kHz

AM tuner section

Tuning range
Models of area code US. CND
With 10kI-Iz tuning scale: 530 71.710 kl-Izm
With 9rkHz tuning scale: 53171.710 kI-Iz
Models of area code E2
W1Ih IDrkHz tuning scale: 530 71.610kI-Iz"
W1Ih 9rkHz tuning scale: 531 3 1.602 kl-Izm
Models of area code AR
With 10ekl-Iz tunitig scale: 530 3 1.610 kHz
Models of area code MY, SP
With 9rkHz tuning scale: 531 3 1.602 kHz

Antenna Loop antenna
Intermediate frequency 450 kHz
Usable sensitivity 50 dB/m (at 1,000 kHz or
999 kHz)

S/N 54 dB (at 50 mV/m)
Harmonic distortion 0.5 % (50 inV/ni, 400 Hz)
Selectivity

At 9 kHz: 35 dB

At 10 kHz: 40 dB

6) You can change the AM tuning scale to 9 kHz or 10 kHz.
Atter inning in any AM station. turn off the receiver. While
holding down PRESET TUNING + or TUNING +, press
I/d). All preset stations WIII be erased when you change
the tuning scale. To reset the scale to 10 kHz (or 9 kHz),
repeat the procedure.
