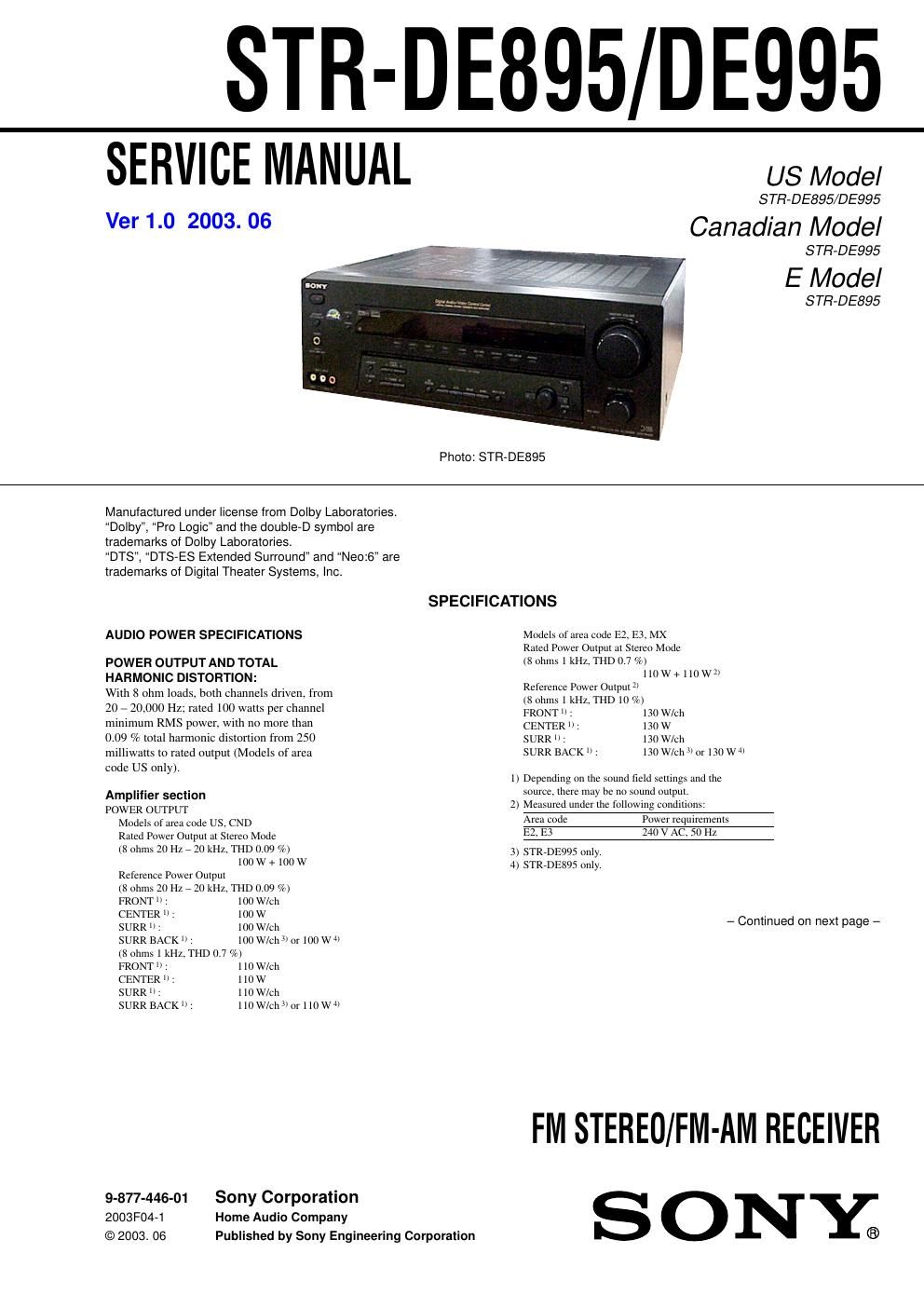

Page 1

STR-DE895/DE995

SERVICE MANUAL

Ver 1.0 2003. 06

US Model

S TH-DE895/DE 995

Canadian Model

S TFi-DE995

E Model

STR-DE895

Photo: STFI-DE895

Manufactured under license from Dolby Laboratories.
Dolby", Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.

DTS, DTS-ES Extended Surround" and Neo:6" are
trademarks of Digital Theater Systems, Inc.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:

With 8 ohm loads, both channels driven, from
20 - 20,000 Hz; rated 100 watts per Channel
minimum RMS power: with no more than
0.09 % total harmonic distortion from 250
milliwatts to rated output (Models of area
code US only).

Amplifier section
POWER OUTPUT
Models of area code US, CND
Rnted Power Output at Stereo Mode
(8 ohms 20 Hz 7 20 kHz. THD 0,09 (7;)
100 w + 100 w
Reference Power output
(8 ohms 20 Hz 7 20 kHz. THD 009 "/i)

FRONT I! : 10[)W/ch

CENTER ll: 100 w

SURR ll: 100 W/ch

SURR BACK: 100 chh" or wow

(8 ohms 1 kHz, THD 0.7 %)

FRONT II: 110 chh

CENTER H: 110w

SURR H: 110 W/cll

SURR BACK: lmW/clfllorllowil
9-877-446-01 Sony Corporation
2003FO4-1 Home Audio Company
© 2003. 06 Published by Sony Engineering Corporation

Models of area code E2, E3. MX
Rated Power Olllplll at Slereo Mode
(8 ohms 1 kHz. THD 0,7 70)

l 10 W + 1 10 W 3'
Reference Power Output 1!
(8 ohms 1 kHz. THD 10 %)
FRONT" : 130 W/ch
CENTER '1 : 130W
SURR : I30 W/cli
SURR BACK: l30W/chor 130W

1) Depending on the sound tield settings and the
source there may be no sound output.
2) Measured under the following conditions:

Area code Power requirements
E2, E3 240 v Ac, 50 Hz

3) STRVDE995 only.
4) STRVDESQS only.

- Continued on next page -

FM STEREO/FM-AM RECEIVER
S ONY;
