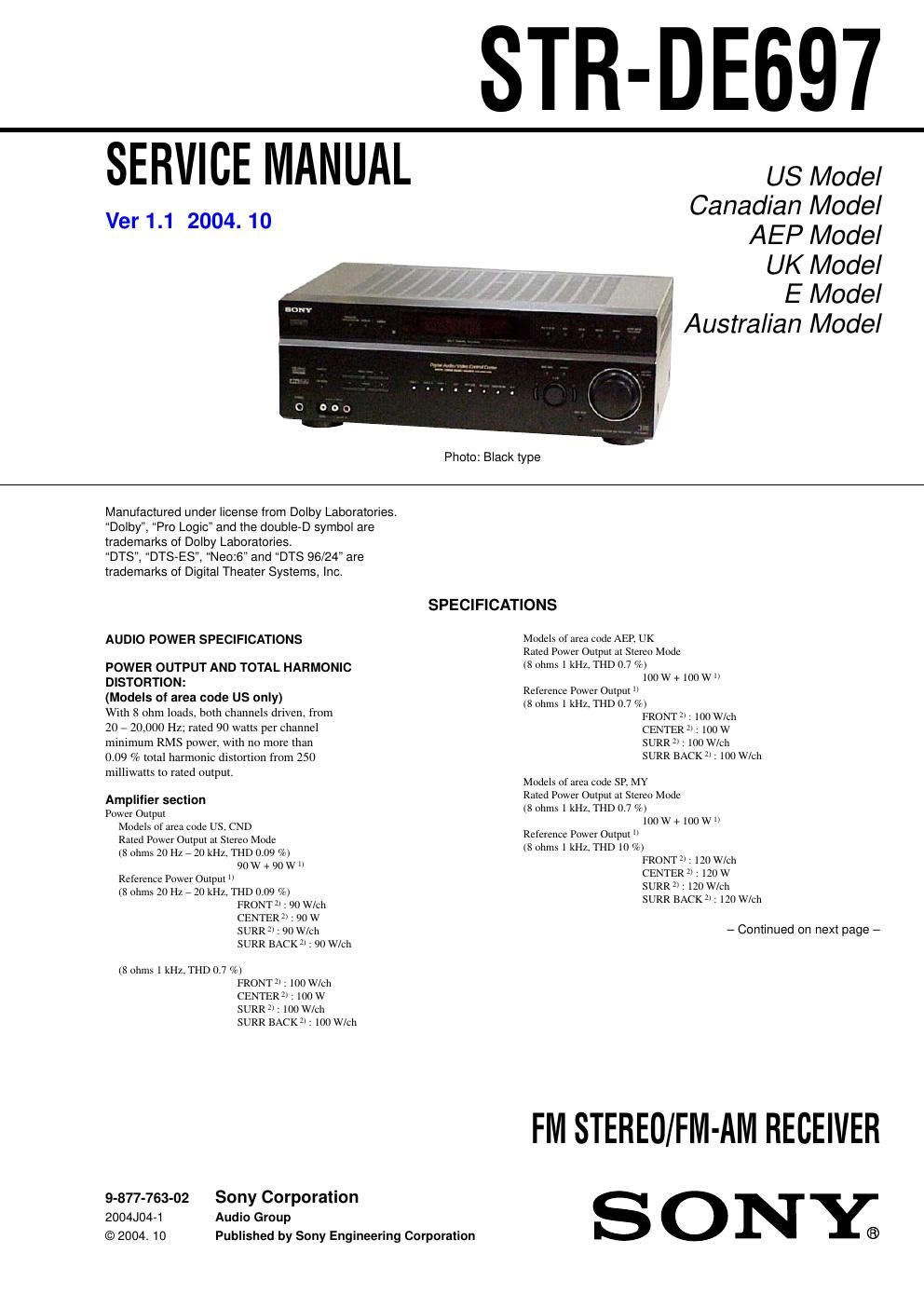

Page 1

STR-DE697

SERVICE MANUAL

Ver 1.1 2004. 10

US Model
Canadian Model
AEP Model

UK Model

E Model

1 Australian Model

Photo: Black type

Manufactured under license from Dolby Laboratories.
Dolby", Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.

DTS, DTS-ES", Neo:6" and DTS 96/24" are
trademarks of Digital Theater Systems, Inc.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:

(Models of area code US only)

With 8 ohm loads, both channels driven, from

20 - 20,000 Hz; rated 90 watts per channel
minimum RMS power. with no more than

0.09 % total harmonic distortion from 250
milliwatts to rated output.

Amplifier section
Power Output
Models of area code US, CND
Rated Power Output at Stereo Mode
(8 ohms 20 Hz , 20 kHz. THD 0.09 %)
90 w + 90 w h
Reference Power Output ll
(8 ohms 20 Hz , 2t) kHL THD 0.09 %)
FRONT 1 : 9n W/oh
CENTERII : 90 w
SURR 2t : 90 chh
SURR BACKZJ : 90 W/cli

(8 0th 1 kHz, THD 07 "/ZI
FRONT II: 100 W/ch
CENTERZI : 100W
SURREY: 100 W/ch
SURR BACKZI: 100 W/oh

9-877-763-02 Sony Corporation
2004J04-1 Audio Group
© 2004. 10 Published by Sony Engineering Corporation

Models of area code AEP. UK
Rated Power Output at Stereo Mode
(8 oiuus 1 kHz, THD 07 no
100 w + 100 w h
Retereuee Power Output n
(x oiuus 1 kHz. THD 0,7 We)
FRONTII : 100 chh
CENTER 1t ; 100 w
SURR 2»: 100 Wloh
SURR BACK It: 100 W/ch

Models of area code SR MY
Rated Power Output at Stereo Mode
(8 ohms 1 kHz. THD 0.7 70)
100 W + 100 W "
Reference Power Output '1
(8 ohms 1 kHz. THD 10 %)
FRONT 120 W/cli
CENTER 7: 120 W
SURR 1' : 120 W/oh
SURR BACK 2': I20 W/ch

- Continued on next page -

FM STEREO/FM-AM RECEIVER
ONY;
