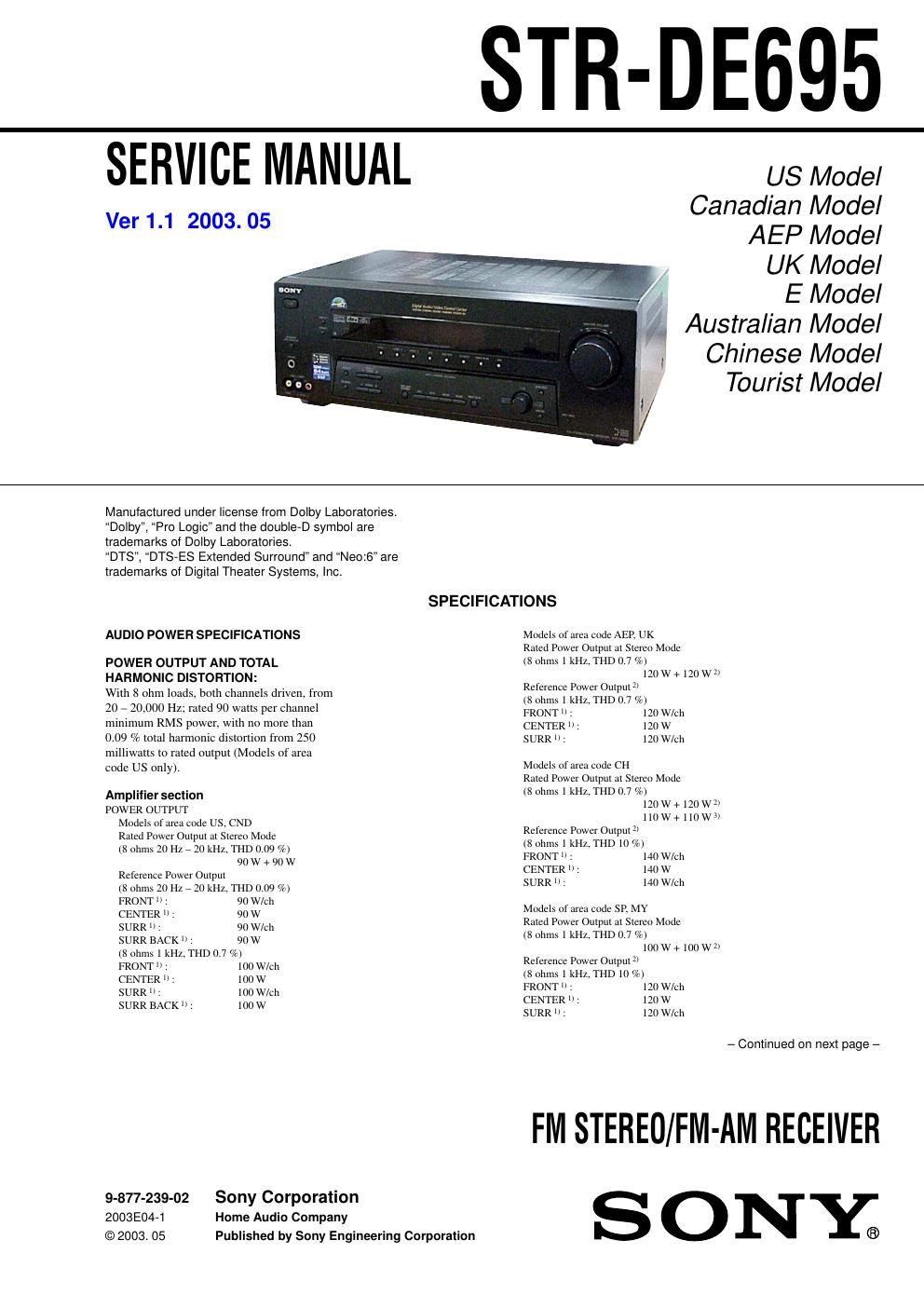

Page 1

STR-DE695

SERVICE MANUAL

Ver 1.1 2003. 05

US Model
Canadian Model
AEP Model

UK Model

E Model
Australian Model
Chinese Model
Tourist Model

Manulactured under license from Dolby Laboratories.
Dolby", Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.

DTS, DTS-ES Extended Surround" and Neo:6" are
trademarks of Digital Theater Systems, Inc.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL
HARMONIC DISTOFITION:

With 8 ohm loads, both channels driven, from
20 - 20,000 Hz; rated 90 watts per Channel
minimum RMS power, with no more than
0.09 % total harmonic distortion from 250
milliwatts to rated output (Models of area
code US only).

Amplifier section
POWER OUTPUT
Models ot area code US CND
Rated Power Output at Stereo Mode
(8 ohms 20 Hz , 20 kHz. THD 0.09 (7;)
90 w + 90 w
Reference Power Output
(8 ohms 20 Hz , 20 kHz. THD 0.09 "/2)

FRONT " : 90 W/ch
CENTER ll : 90 W
SURR Ii: 90 W/ch
SURR BACK II: 90W

(8 ohms 1 kHz. THD 0.7 72)
FRONT " : 100 W/ch
CENTER H: 100 W
SURR 2 100 chh
SURR BACK: 100W

9-877-239-02 Sony Corporation
2003E04-1 Home Audio Company
© 2003. 05 Published by Sony Engineering Corporation

Models of area code AEP. UK
Rated Power Output at Stereo Mode
(8 oluns 1 kHz. THD 0.7 '70)
120 W + 120 W 3'
Reference Power Output 1!
(X oluns 1 kHz. THD 0.7 '70)

FRONT " : 120 W/ch
CENTER " : 120 W
SURR H: 120 W/Ch

Models of area Code CH
Rated Power Output at Stereo Mode
(8 ohms 1 kHz. THD 0.7 '70)
120 W + 120 W 3'
I 10 W + l 10 W "
Reference Power Output 1!
(8 ohms 1 kHz. THD 10 %)
FRONT " : I40 W/oh
CENTER '1 : 140 W
SURR 7: 140 W/ch

Models of area code SP. MY
Rated Power Output at Stereo Mode
(21 ohms 1 kHz, THD 0.7 %)

100 w + 100 w 2'
Reference Power Output 2!
(x oluns 1 kHz, THD 10 [70)

FRONT" : 120 W/ch
CENTER " : 120W
SURR : 120 W/ch

FM STEREO/FM-AM RECEIVER
S ONY;
