Sony str de 675 service manual
This is the 46 pages manual for sony str de 675 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony str de 675 service manual (Ocr-read)

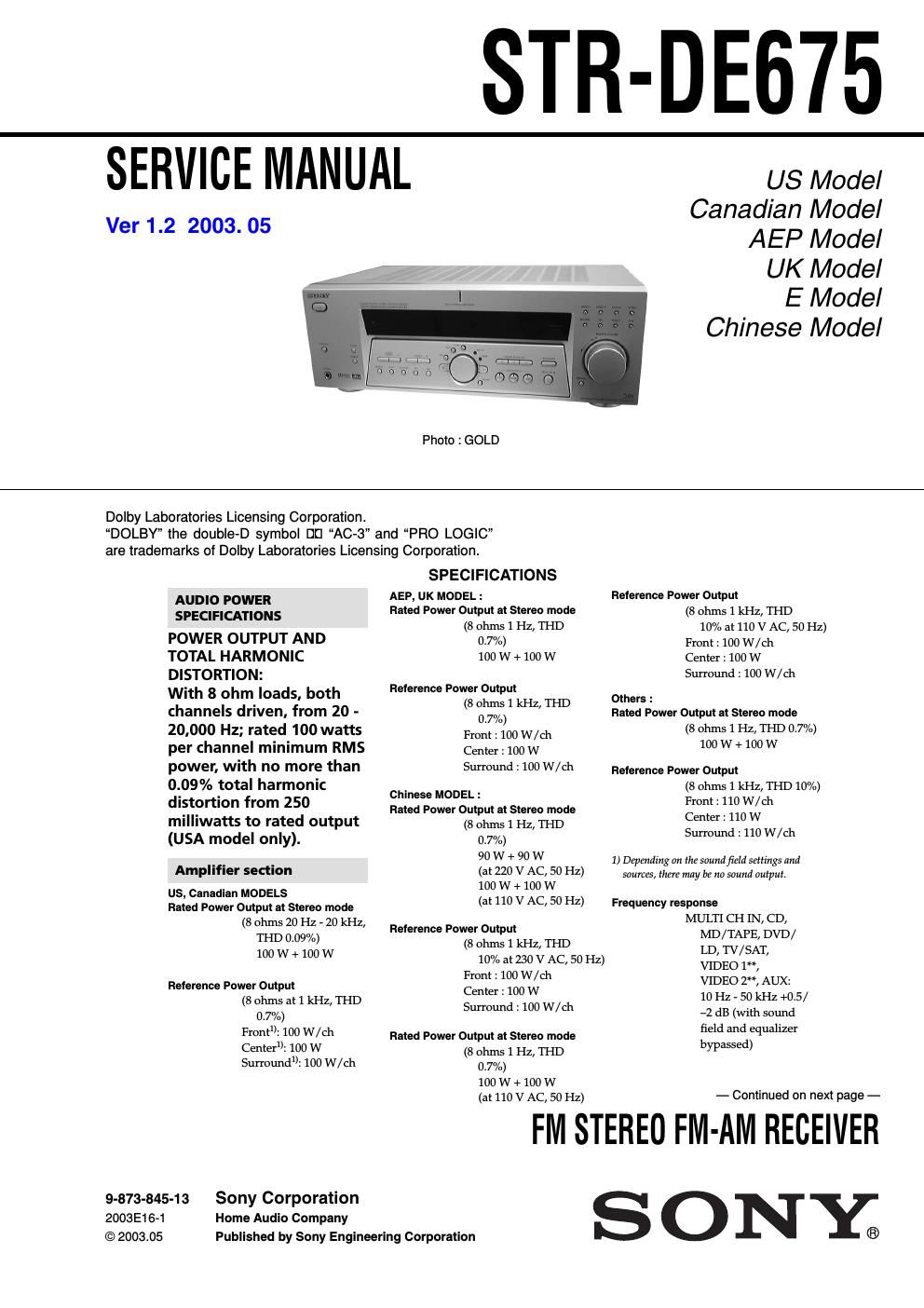

Page 1
2 STR-DE675 0.5 % (50 mV/m, 400 kHz) At 9 kHz: 35 dB At 10 kHz: 40 dB c) You can change the AM tuning interval to 9 kHz. After tuning in any AM station, turn off the receiver. Hold down the TUNING + button and press the ?/1 button. All preset stations will be erased when you change the tuning interval. To reset the scale to 10 kHz, repeat the procedure. Video section Video: 1 Vp-p 75 ohms S-video***: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms Video: 1 Vp-p 75 ohms S-video***: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms General Tuner section: PLL quartz-locked digital synthesizer system Preamplifier section: Low-noise NF type equalizer Power amplifier section: Pure-complementary SEPP FM tuner section 87.5 - 108.0 MHz 75 ohms, unbalanced 10.7 MHz Mono: 18.3 dBf, 2.2 V/75 ohms Stereo: 38.3 dBf 22.5 V/75 ohms 11.2 dBf, 1 V/75 ohms Mono: 76 dB Stereo: 70 dB Mono: 0.3% Stereo: 0.5% 45 dB at 1 kHz 30 Hz - 15 kHz +0.5/-2 dB 60 dB at 400 kHz AM tuner section With 10-kHz tuning scale: 530 - 1710 kHz c) With 9-kHz tuning scale: 531 - 1710 kHz 531 - 1602 kHz c) 530 - 1610 kHz (10 kHz step) c) 531 - 1602 kHz (9 kHz step) c) 530 - 1610 kHz (10 kHz step) 531 - 1602 kHz (9 kHz step) Loop antenna 450 kHz 50 dB/m (at 1,000 kHz or 999 kHz) 54 dB (at 50 mV/m) 120 V 230 V AC, 50/60 Hz 120/220/240 V AC, 50/60 Hz 110 V AC, 50/60 Hz 120 V AC, 60 HzAC, 60 Hz220W In standby condition: 1 W 315 VA In standby condition: 1 W 210 W In standby condition: 1 W 220 W In standby condition: 1 W 230 W In standby condition: 1 W 1 switched, total 100 W Max 1 switched, total 120 W/1A Max 430 × 308.5 × 157.5 mm (14.5 × 10.4 × 5.3 in.) including projecting parts and controls 7.5 kg (16 lbs. 9 oz.) Design and specifications are subject to change without notice.¥FM wire antenna (1) ¥AM loop antenna (1) ¥R6 (size-AA) batteries (2) ¥ Remote commander RM-PP505 (remote) (1) Tuning range Antenna terminals Intermediate frequency Sensitivity Usable sensitivity S/N Harmonic distortion at 1 kHz Separation Frequency response SelectivityTuning range US, Canadian MODELS : Tuning range Others : Tuning range AEP, UK MODELS : Antenna Intermediate frequency Usable sensitivity S/N Harmonic distortion Selectivity Inputs Outputs SystemSupplied accessories Mass (Approx.) Dimensions AC outlets US, Canadian MODELS :Power consumption US MODEL : Canadian MODEL : AEP, UK MODELS : Mexican MODEL : E MODEL : Others : Power requirements US, Canadian MODEL : AEP, UK MODELS : E MODEL : Taiwan MODEL : Mexican MODEL : MULTI CH IN, CD, DVD/LD, MD/ TAPE, TV/SAT, VIDEO 1**, VIDEO 2**, AUX: Sensitivity: 250 mV Impedance: 50 kilohms S/N a): 96 dB (A, 250 mV b)) a) Input short. b) Weighted network, input level. DVD/LD (coaxial): Sensitivity: - Impedance: 75 ohms S/N: 100 dB (A, 20 kHz LPF) (Optical): Sensitivity: - Impedance: - S/N: 100 dB (A, 20 kHz LPF) MD/TAPE, (OUT); VIDEO 1**, VIDEO 2** (AUDIO OUT): Voltage: 250 mV, Impedance: 10 kilohms SUB WOOFER: Voltage: 2 V Impedance: 1 kilohms PHONES: Accepts low- and high-impedance headphones –6 dBDVD/LD, TV/SAT, MD/TAPE** 48 kHz (TV/SAT, MD/ TAPE OPTICAL IN) 96 kHz (DVD/LD OPTICAL IN, COAXIAL IN) Sampling Frequency EQ OutputsInputs (Analog) Inputs (Digital) Ver 1.2 2003. 05
Page 2
3 STR-DE675 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 kΩAC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. Parts No. MODEL IDENTIFICATION - BACK PANEL - ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. Ver 1.2 2003.05 PA RTS No. 4-232-251-0s 4-232-251-1s 4-232-251-2s 4-232-251-3s 4-232-251-4s 4-232-251-6s 4-232-251-7s 4-232-251-8s 4-234-509-0s 4-234-509-1s 4-234-509-2s MODEL US model Canadian model E model AEP model UK model Malaysia, Singapore model Chinese model Taiwan model Korean model Mexican model Argentina model
