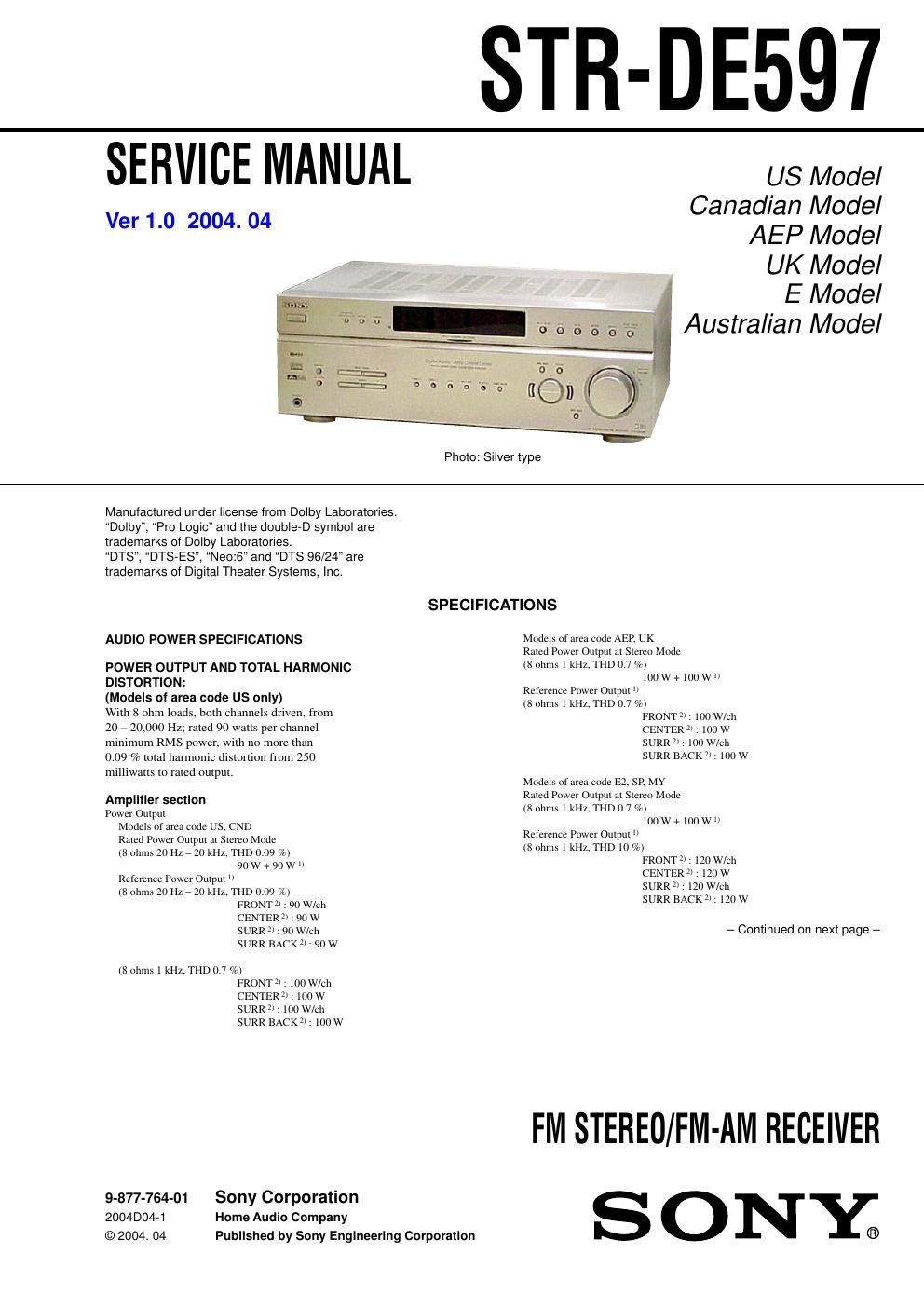

STR-DE597

SERVICE MANUAL

Ver 1.0 2004. 04

US Model
Canadian Model
AEP Model

UK Model

E Model
Australian Model

Photo: Silver type

Manufactured under license from Dolby Laboratories.
Dolby", Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.

DTS, DTS-ES", Neo:6" and DTS 96/24" are
trademarks of Digital Theater Systems, Inc.

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:

(Models of area code US only)

With 8 ohm loads, both channels driven, from

20 - 20,000 Hz; rated 90 watts per channel
minimum RMS power: with no more than

0.09 % total harmonic distortion from 250
milliwatts to rated output.

Amplifier section
Power Output
Models of area code US, CND
Rated Power Output at Stereo Mode
(8 ohms 20 Hz , 20 kHz. THD 0.09 %)
90 w + 90 w h
Reference Power Output ll
(8 ohms 20 Hz , 20 kHz. THD 0.09 %)
FRONT 1 : 9n W/ch
CENTERII : 90 w
SURR 21 : 90 chh
SURR BACKZJ : 90 w

(8 0th 1 kHz, THD 07 "/ZI
FRONT II: 100 W/ch
CENTERZI : 100W
SURREY: 100 W/ch
SURR BACKZI: 100W

9-877-764-01 Sony Corporation
2004D04-1 Home Audio Company
© 2004. 04 Published by Sony Engineering Corporation

Models of area code AEP. UK
Rated Power Output at Stereo Mode
(8 ohms 1 kHz, THD 0,7 70)
100 w + 100 w h
Retereuee Power Output n
(x oiuus 1 kHz. THD 07 %)
FRONTII : 100 Wlelt
CENTER 1r; 100 w
SURR 2»: 100 chh
SURR BACKI»: 100w

Models of area code E2. SR MY

Rated Power Output at Stereo Mode

(8 ohms 1 kHz. THD 0.7 70)
100 W + 100 W "

Reference Power Output '1

(8 ohms 1 kHz. THD 10 %)
FRONT 120 W/cli
CENTER 7: 120 W
SURR 1' : 120 W/oh
SURR BACKZ': IZOW

- Continued on next page -
