Sony str de 575 owners manual

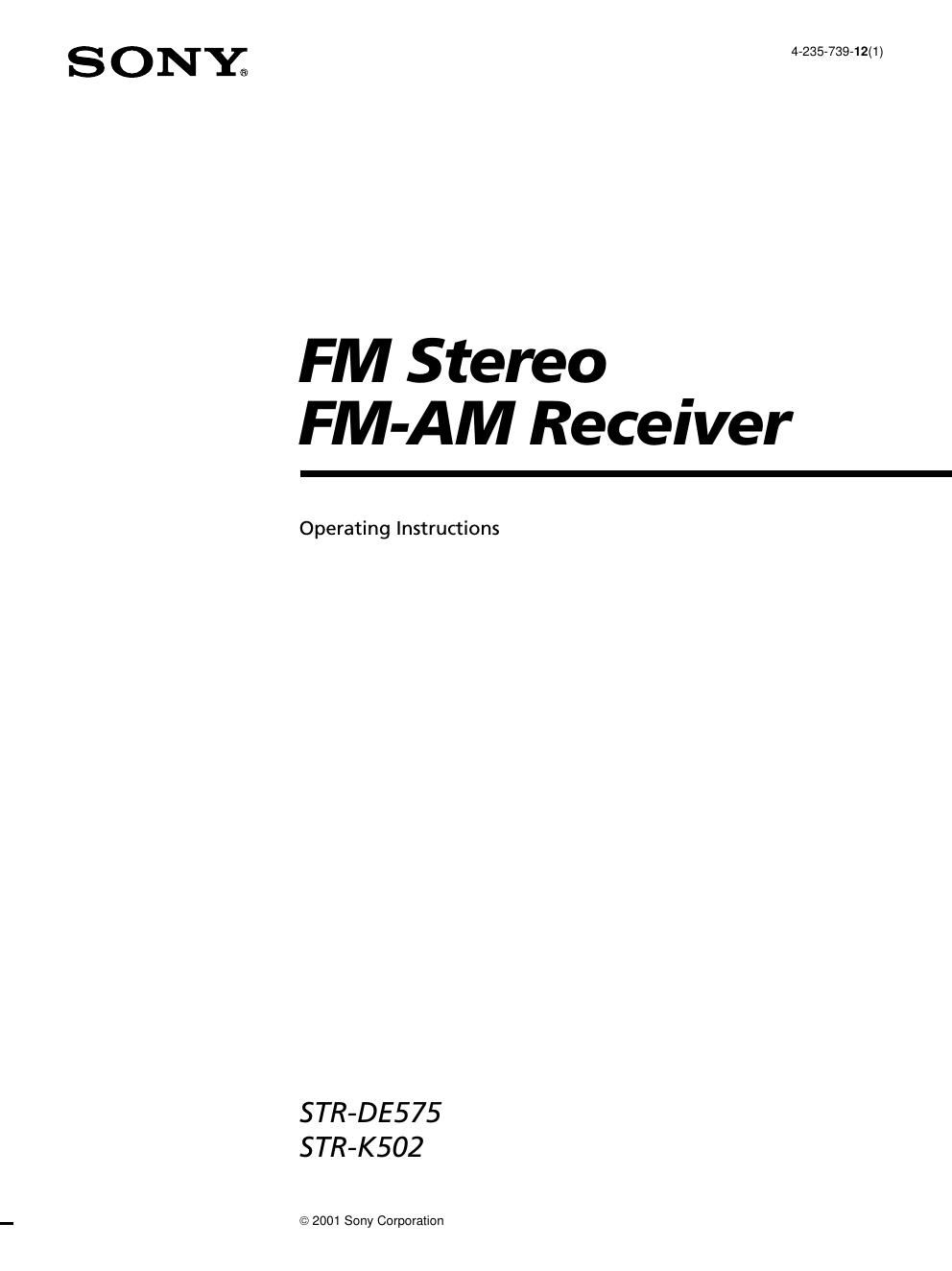

Page 1

S ONY 4-235-739-12(1)
®

FM Stereo
FM-AM Receiver

Operating Instructions

5 TR-DE5 75
STR-K502

© 2001 Sony Corporation

Page 2

WARNING

To prevent fire or shock
hazard, do not expose the
unit to rain or moisture.

De Mar nmuv: mm (on Mm

This symbol is intended to alert the user to
the presence of uninsulated dangerous
voltage" within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.

A

This symbol is intended to alert the user to
the presence of important operating and
maintenance (Servicing) instructions in the
literature accompanying the appliance.

IN F0 RM ATlO N

This equipment has been tested and found

to comply with the limits for a Class B

digital device, pursuant to Part 15 of the

FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the
instructions, may cause harmful
interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the
following measures:

7 Reorient or relocate the receiving
antenna.

7 Increase the separation between the
equipment and receiver.

7 Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.

7 Consult the dealer or an experienced
radio/ TV technician for help.

2

CAUTION

You are cautioned that any changes or
modification not expressly approved in
this manual could void your authority to
operate this equipment.

Note to CATV system installer:

This reminder is provided to call CATV
system installer's attention to Article 8207
40 of the NEC that provides guidelines for
proper grounding and, in particular,
specifies that the cable ground shall be
connected to the grounding system of the
building, as close to the point of cable
entry as practical.

Owners Record

The model and serial numbers are located
on the rear of the unit. Record the serial
number in the space provided below.
Refer to them whenever you call upon
your Sony dealer regarding this product.

Model No. STR7DE575/ K502
Serial No.

For customers in Canada

CAUTION

TO PREVENT ELECTRIC SHOCK, DO
NOT USE THIS POLARIZED AC PLUG
WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE
EXPOSURE.

For customers in the United States and
Canada
/'\ ENERGY STAR® is a us.
W registered mark.

As an ENERGY STAR®
partner, Sony Corporation
has determined that this
product meets the ENERGY
STAR® guidelines for
energy efficiency.

Don't throw a battery,
dispose it as the
injurious wastes.

Precautions

0n safety

- Should any solid object or liquid fall into the
cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.

To prevent fire, do not cover the Ventilation
of the receiver with newspapers, table cloths,
curtains, etc. And dont place lighted candles
on the receiver.

To prevent fire or shock hazards, do not place
vases on the receiver.

0n power sources
I Before operating the receiver, check that the
operating voltage is identical with your local
power supply. The operating voltage is
indicated on the nameplate at the rear of the
receiver.
The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
If you are not going to use the receiver for a
long time, be sure to disconnect the receiver
from the wall outlet. To disconnect the AC
power cord, grasp the plug itself; never pull
the cord.
One blade of the plug is wider than the other
for the purpose of safety and will fit into the
wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact
your dealer.
I AC power cord must be changed only at the
qualified service shop.

On placement

- Place the receiver in a location with adequate
ventilation to prevent heat buildup and
prolong the life of the receiver.

Do not place the receiver near heat sources,
or in a place subject to direct sunlight,
excessive dust or mechanical shock.

Do not place anything on top of the cabinet
that might block the ventilation holes and
cause malfunctions.

Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the top,
side and bottom rises accordingly. To avoid
burning yourself, do not touch the cabinet.

0" operation
Before connecting other components, be sure to
turn off and unplug the receiver.

0" cleaning

Clean the cabinet, panel and controls with a soft
cloth slightly moistened with a mild detergent
solution. Do not use any type of abrasive pad,
scouring powder or solvent such as alcohol or
benzine.

If you have any question or problem
concerning your receiver, please consult
your nearest Sony dealer.
