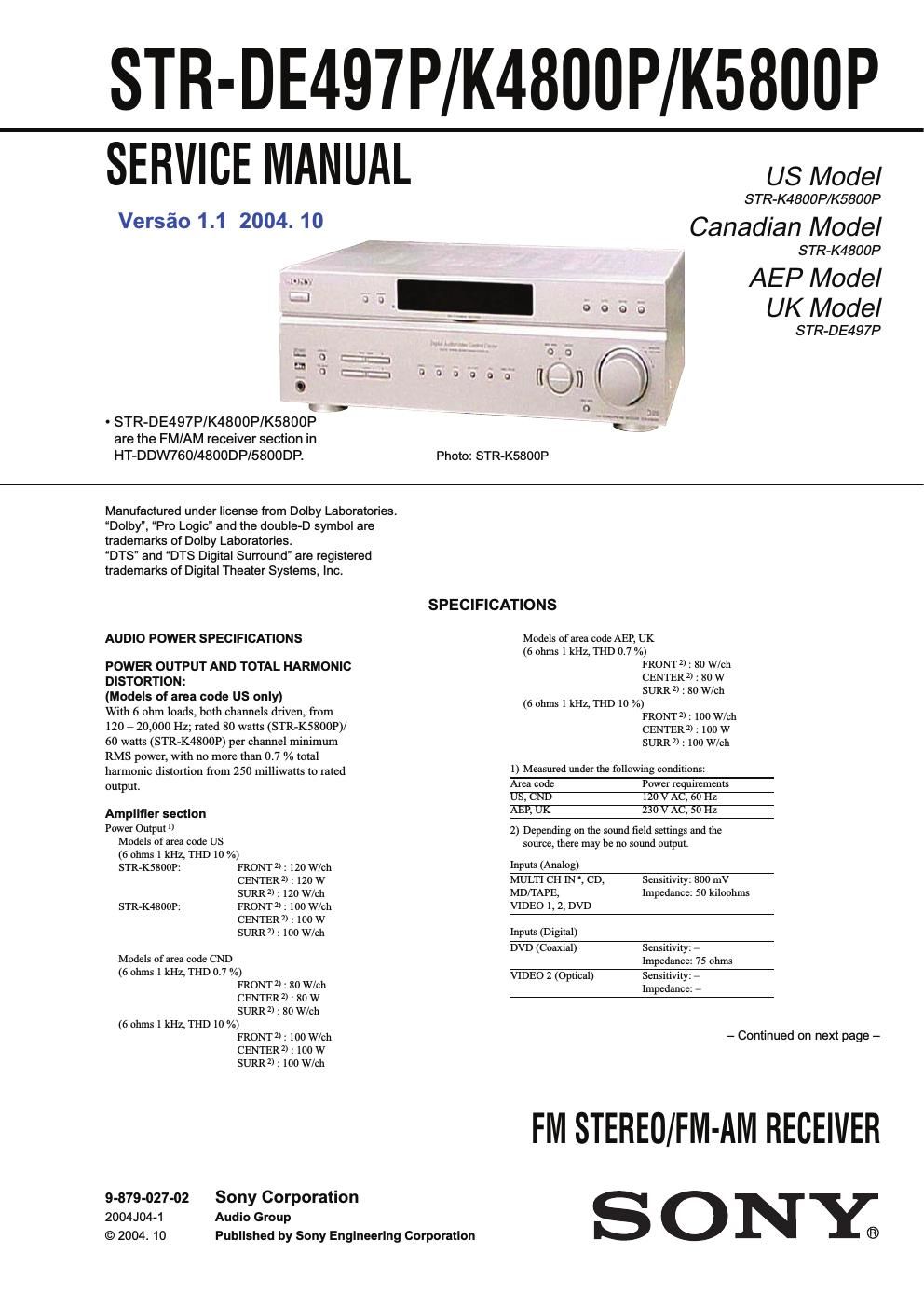

Sony str de 497p str k4800p str k5800p vers 1 1 2004
This is the 52 pages manual for sony str de 497p str k4800p str k5800p vers 1 1 2004.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony str de 497p str k4800p str k5800p vers 1 1 2004 (Ocr-read)
Page 1
2 STR-DE497P/K4800P/K5800P Outputs (Analog) MD/TAPE (OUT), Voltage: 800 mV VIDEO 1 Impedance: 10 kiloohms (AUDIO OUT) SUB WOOFER Voltage: 2 V Impedance: 1 kiloohms Reproduction frequency range: 28 – 20,000 Hz ToneGain levels ±6 dB, 1 dB step * Models of area code AEP, UK only. FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM wire antenna Antenna terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Models of area code US, CND With 10-kHz tuning scale: 530 – 1,710 kHz 3) With 9-kHz tuning scale: 531 – 1,710 kHz 3) Models of area code AEP, UK With 9-kHz tuning scale: 531 – 1,602 kHz Antenna Loop antenna Intermediate frequency 450 kHz 3) You can change the AM tuning scale to 9 kHz or 10 kHz. After tuning in any AM station, turn off the receiv er. While holding down PRESET TUNING + or TUNING +, press ?/1 . All preset stations will be erased when you chang e the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure. Video section Inputs/Outputs Video: 1 Vp-p, 75 ohms General Power requirements Area code Power requirementsUS, CND 120 V AC, 60 HzAEP, UK 230 V AC, 50/60 Hz Power consumption Area code Power consumptionUS (STR-K4800P) 165 WUS (STR-K5800P) 180 WCND 225 VAAEP, UK 150 W Power consumption (during standby mode) 0.3 W Dimensions (w/h/d) (Approx.) 430× 145 × 310.5 mm (17 × 5 6/8 × 11 7/8inches) including projecting parts and controls Mass (Approx.) 6.5 kg (14 lb 6 oz) Design and specifications are subject to change without notice. - Abbreviation CND : Canadian model
Page 2
3 MODEL IDENTIFICATION - BACK PANEL - Part No. MODEL PART No. STR-DE497P: AEP 4-252-088-0s STR-DE497P: UK 4-252-088-1s STR-K4800P: US 4-252-088-2s STR-K4800P: CND 4-252-088-3s STR-K5800P: US 4-252-088-6s - Abbreviation CND : Canadian model STR-DE497P/K4800P/K5800P 1.5 k 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground SAFETY CHECK-OUT After correcting the original service problem, perf orm the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallize d knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth g round and from all exposed metal parts to any exposed metal p art having a return to chassis, must not exceed 0.5 mA (500 micr oampers.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 2 29 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by m eans of a VOM or battery-operated AC voltmeter. The limit i ndica- tion is 0.75 V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd ar e ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOS E PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
