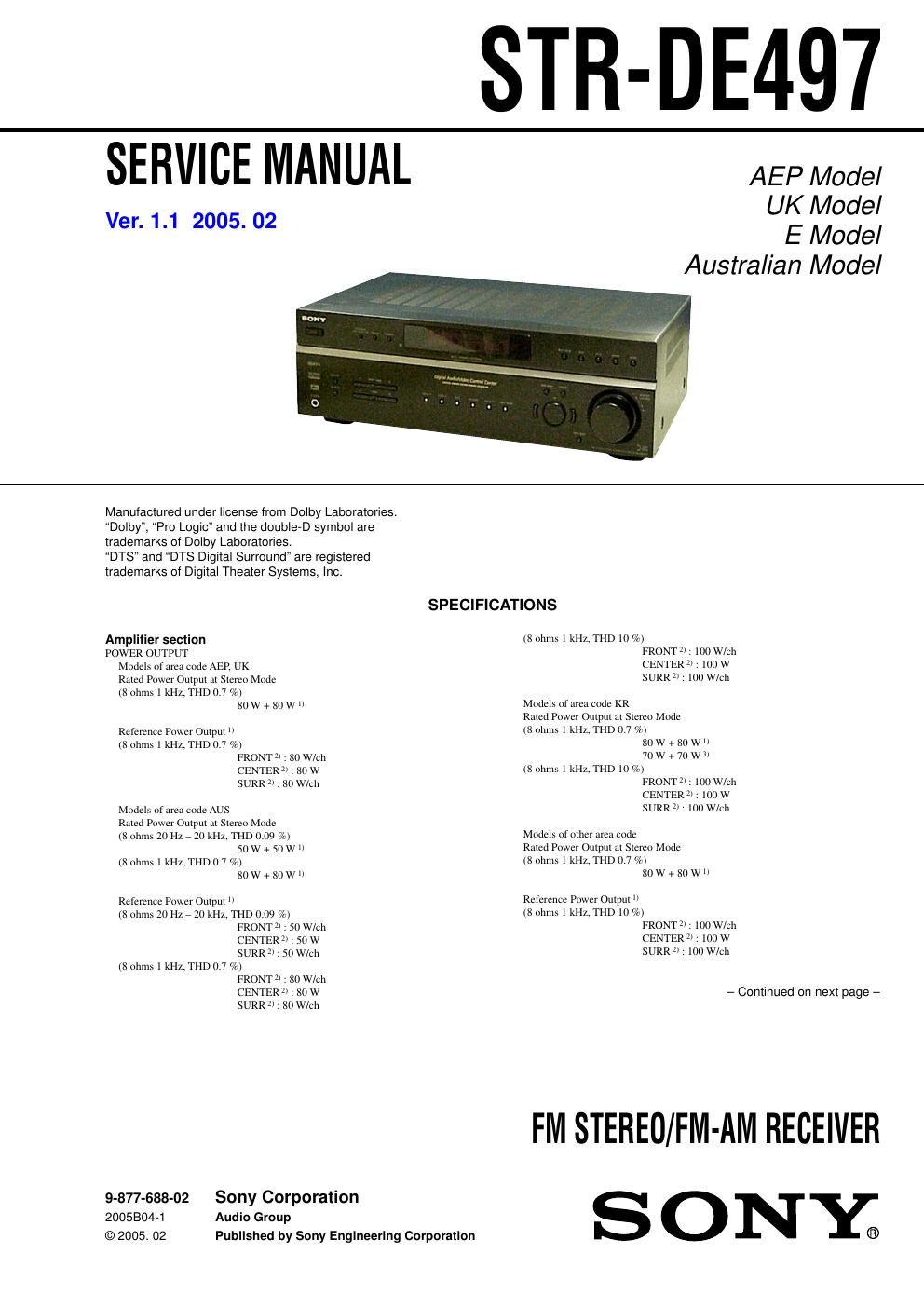

Page 1

STR-DE497

SERVICE MANUAL

Ver. 1.1 2005. 02

AEP Model

UK Model

E Model
Australian Model

Manufactured under license from Dolby Laboratories.
Dolby", Pro Logic" and the double-D symbol are
trademarks of Dolby Laboratories.

DTS and DTS Digital Surround" are registered
trademarks of Digital Theater Systems, Inc.

SPECIFICATIONS

Amplifier section
POWER OUTPUT
Models of area code AER, UK
Rated Power Output m Stereo Mode
(8 ohms 1 kHz, THD 0.7 72)
so w + 80W h

Reference Power ompur H

(8 ohms 1 kHz, THD 0.7 %)
FRONT ._ r) chh
CENTER 2! : 80 w
SURR 2v : 80 Wloh

Models of area code AUS
Rated Power Output at Stereo Mode
(8 ohms 20 Hz 7 20 kHz. Tl-lD 0.09 "/c)
50 W + 50W "
(8 ohms 1 kHz, THD 0.7 %)
80 W + 80 W "

Reference Power Olllput ll

(8 ohms 20 Hz 7 20 kHz. Tl-lD 0.09 '72)
FRONT l : 50 W/ch
CENTER 3 50 W
SURR 3i . 50 W/ch

(8 ohms 1 kHz, THD 0.7 VI)
FRONT 3 : 80 W/eh
CENTER 1! : 80 W
SURR 3 : 80 W/eh

9-877-688-02 Sony Corporation
2005B04-1 Audio Group
© 2005. 02 Published by Sony Engineering Corporation

(8 ohms I kl-lz, THD 10 '70)
FRONTZI : 100 W/ch
CENTER 3: 100 W
SURR : 100 W/ch

Models of area code KR

Rated Power Olllplu al Stereo Mode

(8 ohms 1 kHz. Tl-ID 0.7 r7c)
80 W + 80 W "
70 W + 70 W 3

(R ohms I kHz, Tl-lD I0 70)
FRONT 3" : 100 W/ch
CENTER 3: 100 W
SURR 1! : 100 W/ch

Models of olher area code
Rated Power Oulplu al Stereo Mode
(8 ohms 1 kHz, Tl-lD 0.7 %)
80 W + 80 W "

Reference Power Output '1
(8 ohms 1 kHz, THD 10 '70)
FRONT 1! : 100 W/ch

CENTER 22 100 W
SURR 1 : 100 W/ch

- Continued on next page -

FM STEREO/FM-AM RECEIVER
S ONY;
