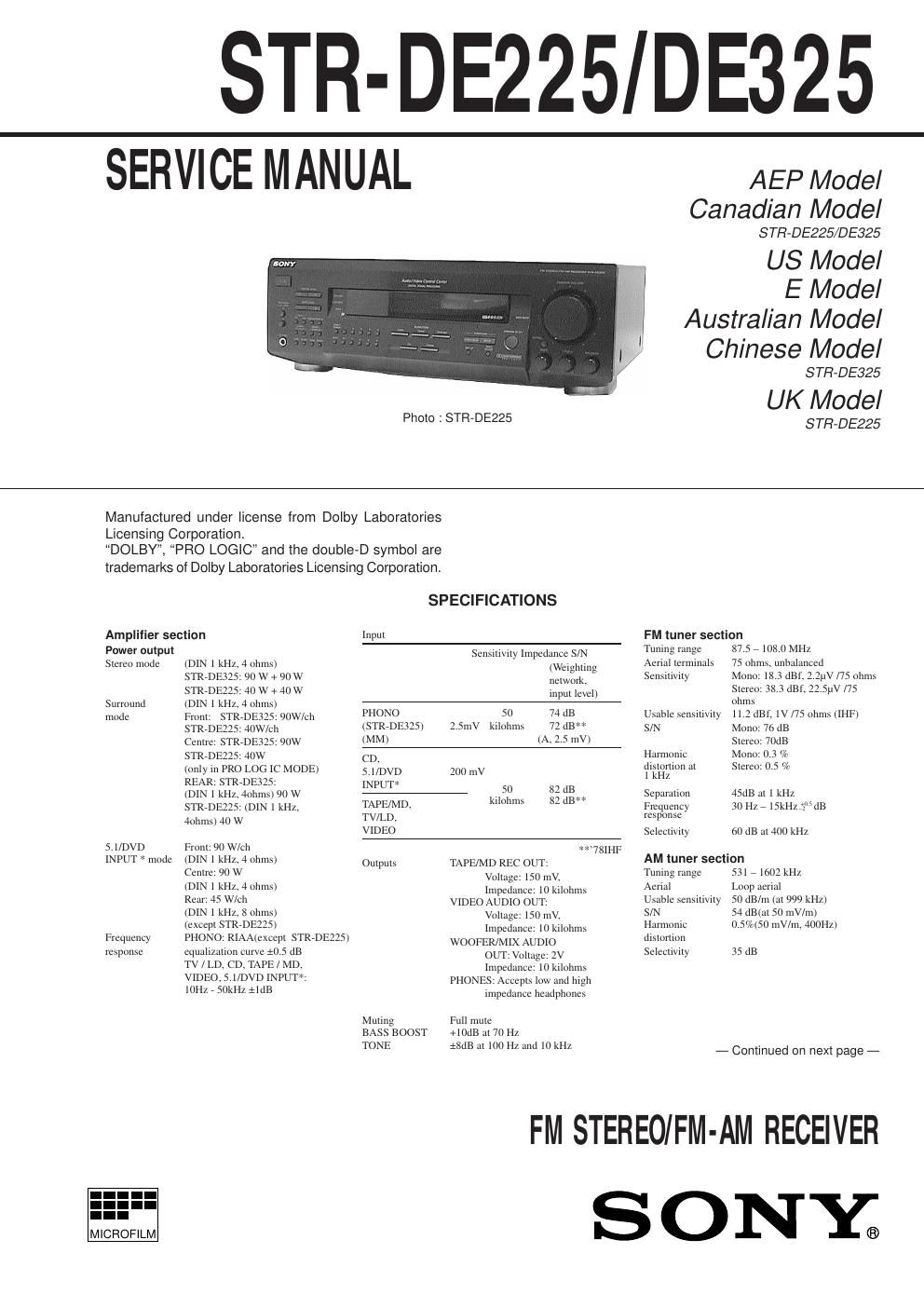

Sony str de 325 rec service manual

Page 2

Ñ 3 Ñ SECTION 1 GENERAL 12 3 5 4 6 7 8 9 !¼ !Á !ª !£ !¢ !° !¤ !¦ !¥ !» @ª @¼ @Á #Á @» #¼ @¢ @¥ @° @¦ @¤ @£ #ª 12 3 4 5 6 7 8 9 !¼ !Á !ª LOCATION AND FUNCTION OF CONTROLS [FRONT PANEL] [REAR PANEL] 1 POWER switch (I/u) 2 CENTER LEVEL +, Ð buttons 3 REAR LEVEL +, Ð buttons 4 PRO LOGIC, C.STUDIO, HALL indicators 5 BASS BOOST indicator 6 MASTER VOLUME control 7 BALANCE control 8 TREBLE control 9 BASS control !¼ MUTING button/indicator !Á SURROUND ON/OFF button !ª BASS BOOST button !£ SURROUND EFFECT/DELAY, MODE buttons !¢ SET UP button !° TAPE/MD FUNCTION button !¤ TUNER FUNCTION button!¦ CD FUNCTION button !¥ VIDEO FUNCTION button !» TV/LD FUNCTION button @¼ Numeric buttons @Á SHIFT button @ª DIRECT TUNING button @£ CHARACTER, DISPLAY buttons @¢ MEMORY button @° FM/AM button @¤ PRESET/CHARACTER +, Ð buttons @¦ FM MODE button @¥ SLEEP button @» TUNING/PTY SELECT +, Ð buttons #¼ RDS PTY, EON buttons #Á PHONES jack #ª SPEAKERS A, B ON/OFF buttons 1 ANTENNA (FM/AM) 2 y SIGNAL GND 3 MIX AUDIO OUT 4 AC OUTLET 5 AC power cord 6 FRONT SPEAKERS (A/B)7 SURROUND SPEAKERS (CENTER) 8 SURROUND SPEAKERS (REAR) 9 VIDEO AUDIO IN, AUDIO OUT 0 TV/LD AUDIO IN !Á TAPE/MD IN, REC OUT !ª CD IN Photo : STR-DE225 Photo : STR-DE225
