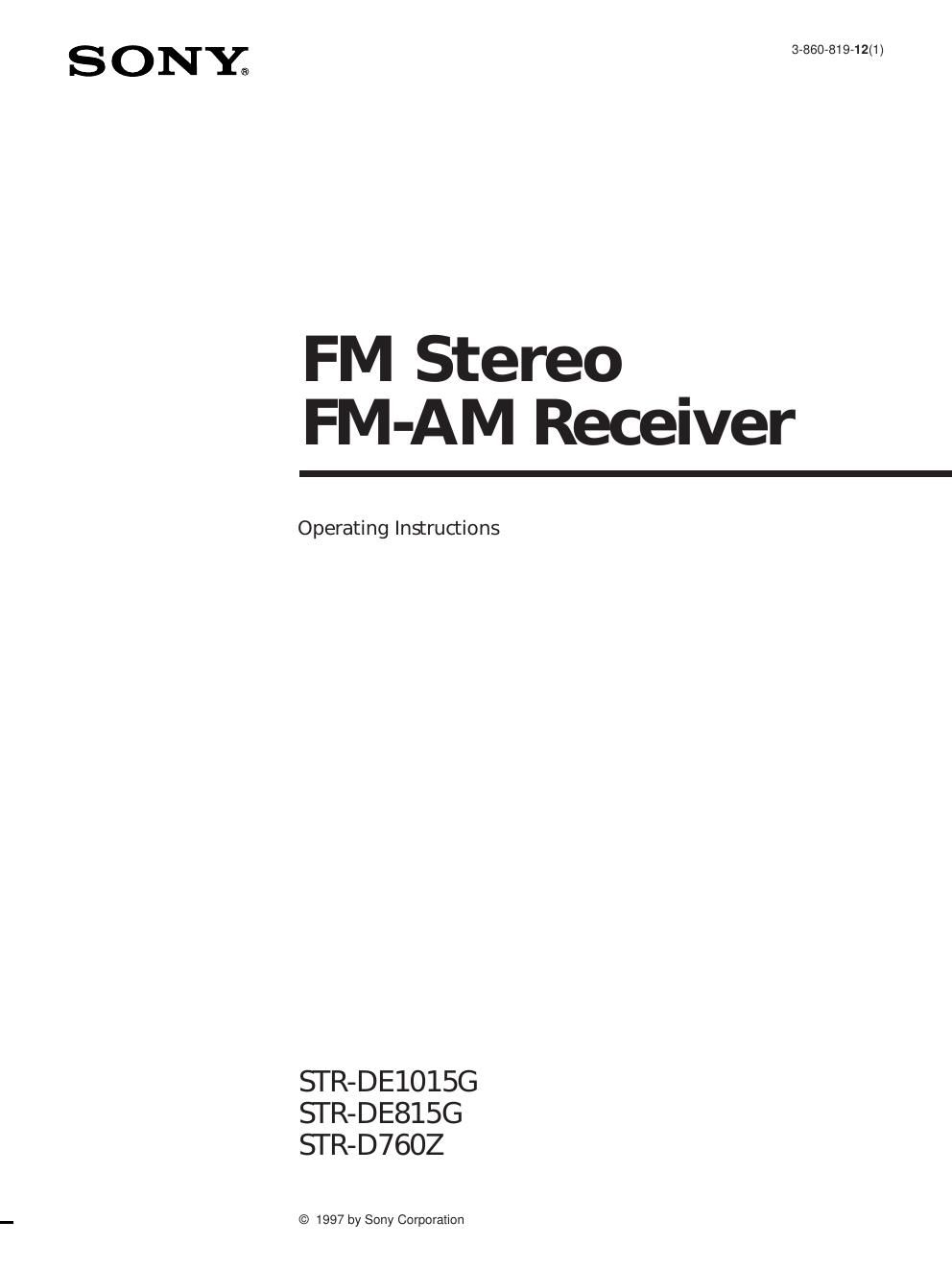

Sony STR de 1015G Owners Manual
This is the 68 pages manual for Sony STR de 1015G Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sony STR de 1015G Owners Manual (Ocr-read)
Page 1
2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. For customers in the U.S.A. This symbol is intended to alert the user to the presence of uninsulated Òdangerous voltageÓ within the productÕs enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and main maintenance (servicing) instructions in the literature accompanying the appliance. INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver ifs connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment. Note to CATV system installer This reminder is provided to call CATV system installerÕs attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. OwnerÕs record The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. STR-DE1015G STR-DE815G STR-D760Z Serial No. For customers in Canada CAUTION TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. This receiver incorporates the Dolby* Pro Logic Surround system. * Manufactured under license from Dolby Laboratories Licensing Corporation. ÒDolby ,Ó the double-D symbol a, ÒAC-3Ó and ÒPro LogicÓ are trademarks of Dolby Laboratories Licensing Corporation. Precautions On safety ¥ Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further. On power sources ¥ Before operating the receiver, check that the operating voltage is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the receiver. ¥ This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. ¥ If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord. ¥ One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer. ¥ AC power cord must be changed only at the qualified service shop. On placement ¥ Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. ¥ Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver. ¥ Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock. ¥ Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions. On operation ¥ Before connecting other components, be sure to turn off and unplug the receiver. On cleaning ¥ Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.
Page 2
3 For customers in the USA For detailed safety precautions, see the ÒIMPORTANT SAFEGUARDSÓ leaflet. If you have any question or problem concerning your receiver, please consult your nearest Sony dealer. About This Manual The instructions in this manual are for models STR-DE1015G, STR- DE815G and STR-D760Z. Check your model number by looking at the upper right corner of the front panel. Functionally, the main difference between the models is that the STR-DE1015G is equipped with a Dolby Digital (AC-3) decoder and the STR-DE815G and STR-D760Z are not. In this manual, the STR-DE1015G is the model used for illustration purposes, any difference in operation is clearly indicated in the text, for example, ÒSTR-DE1015G only.Ó This manual is divided into three sections; Getting Started, On-screen Operations and Front Panel Operations. The ÒGetting StartedÓ section describes connections, how to set up the remote for on-screen control, and Dolby Surround. The ÒOn-Screen OperationsÓ section describes how to operate the receiver using the remote to manipulate the on-screen display on your TV screen. The remote lets you perform almost all of the receiver operations. You can also control the receiver without the remote. The ÒFront Panel OperationsÓ section describes how to operate the receiver using the front panel controls. In addition, for the USA and Canadian models, this section also explains how to use the remote short-cut buttons. The following icon is used in this manual: Indicates hints and tips for making the task easier. Table of contents Welcome! 4 Hooking Up the System Hookup Overview 5 Infrared (IR) Repeater Hookups 7 Antenna Hookups 7 Audio Component Hookups 8 Speaker System Hookups 9 TV/VCR Hookups 11 Digital Component Hookups (STR-DE1015G only) 13 AC Hookups 14 Setting Up the Remote for On-Screen Control Using the Remote 15 Registering a TV (or Monitor) 17 Registering Audio and Video Components 19 Dolby Surround Setup Dolby Digital (AC-3) (STR-DE1015G only) 22 Dolby Pro Logic (STR-DE815G and STR-D760Z) 24 Playback/Recording Selecting a Component 26 Watching TV or Video Programs 28 Tuning and Presetting Radio Stations 29 Recording 31 Sound Adjustment Using the Pre-programmed Sound Field 33 Customizing the Sound Fields 37 Additional Operations and Settings Registering Desired Component (User IR setting) 42 Indexing 43 Playing Sources Automatically (Auto Play) 44 Starting a Source Automatically at Power On (Auto Start) 44 Starting Several Components in Sequence Automatically (Macro Play) 45 Adjusting the Sensitivity of the Remote 46 Changing the Display Settings 46 Using the Sleep Timer 48 Operating a CD Changer 48 Front Panel Operations (Remote Short-cuts: USA and Canada only) Front Panel Descriptions 51 Remote Descriptions 52 Selecting a Component 53 Tuning Radio Stations 54 Recording 55 Adjusting the Sound 55 Customizing the Receiver Operations 57 Indexing 59 Playing Audio Sources Without the TV (Flasher) (except for USA and Canada) 60 Additional Information Troubleshooting 61 Specifications 63 Glossary 65 Index (Back Cover) Getting Started On-Screen Operations Front Panel Operations z
