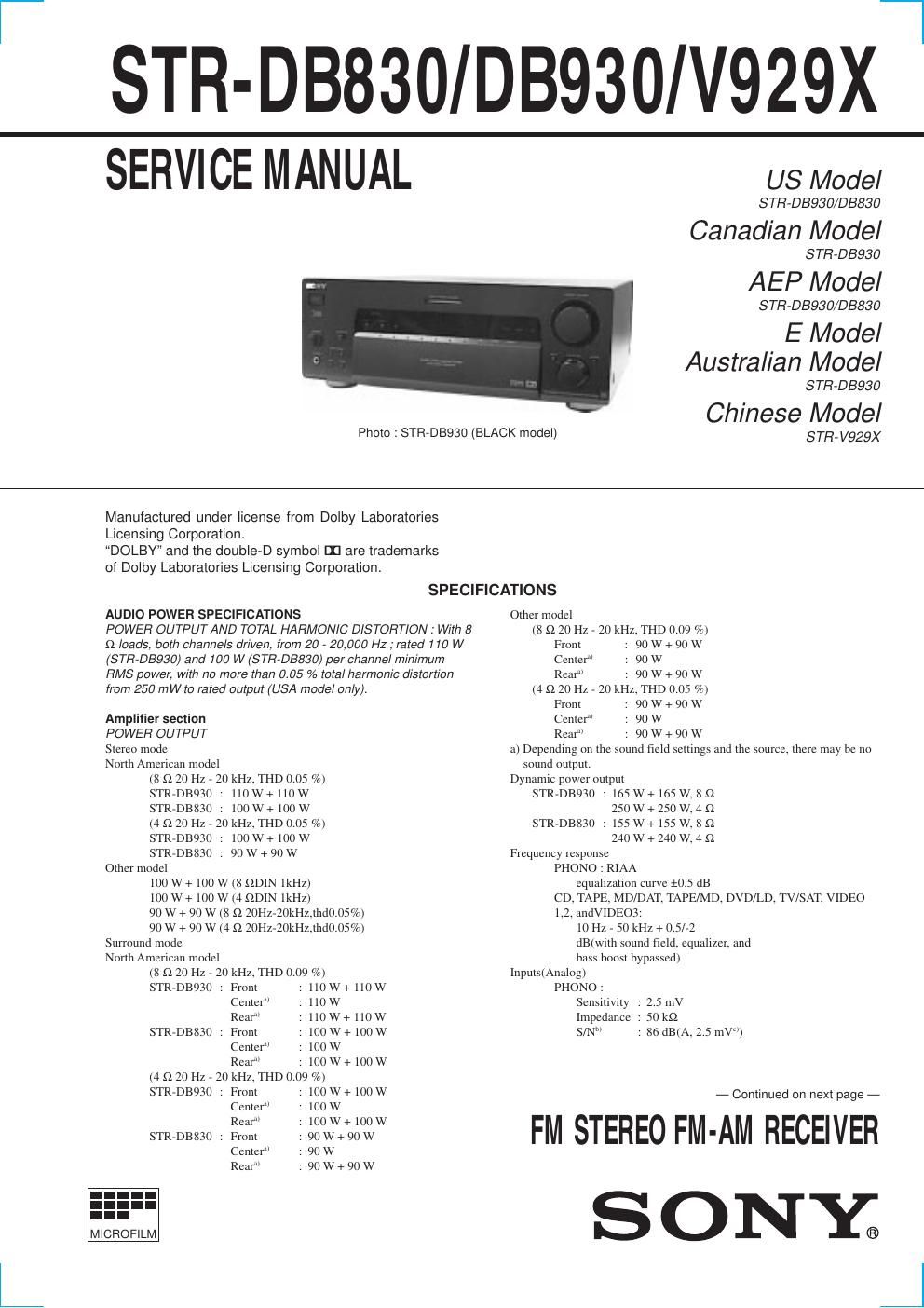

Page 2

5.1CH INPUT, CD, DVD/LD, TAPE,
MD/DAT, TAPE/MD, TV/SAT,
VIDEO 1, 2, and VIDEO 3 :
Sensitivity : 150 mV
Impedance : 50 k9
S/NM : 96 dB(A, 150 mV)
b) INPUT SHORT
c) Weighted network, input level

Input(Digital)
DVD/LD (coaxial) :
Sensitivity : -
Impedance : 75 Q
S/N : 100 dB(A, 20 kHz LPF)
DVD/LD, TV/SAT, MD/DAT (Optical)
Sensitivity : -
Impedance :-
S/N : 100 dB(A. 20 kHz LPF)
Outputs TAPE, MD/DAT, TAPE/MD, (REC OUT)
;VUDEO l, 2 (AUDIO OUT) :
Voltage : 150 mV
Impedance : 10 k9
FRONT L/R, CENTER, REAR L/R, SUB
WOOFER :
Voltage : 2V
Impedance : 1 k9
PHONES :
Accepts low-and high-impedance headphones
BASS BOOST +6 dB at 70 Hz
Sampling Frequency 48 kHz
EQ BASS : 100 Hz - 1.0 kHz(21 steps)
MID : 500 Hz - 5.0 kHz(2l steps)
TREBLE : 1.0 kHz - 10 kHz(2l steps)
Gain levels : $10 dB, 1 dB step

FM tuner section
Tuning range 87.5 - 108.0 Hz
Antenna terminals
75 Q. unbalanced
Sensitivity Mono : 18.3 dBf, 2.2 uV/75 9
Stereo : 38.3 dBf, 22.5 uV/75 Q
Usable sensitivity
11.2 dBf, 1 pV/75 fl
S/N Mono : 76 dB
Stereo : 70 dB
Harmonic distortion at 1 kHz
Mono : 0.3 %
Stereo : 0.5 %
Separation 45 dB at 1 kHz
Frequency response 30 Hz - 15 kHz +0.5/-2 dB
Sencitivity 60 dB at 400 kHz

AM tuner section
North American and E models
With 10-kHz tuning scale : 530 - 1,710 kHz"
With 9-kHz tuning scale : 531 - 1,710 kHz
Other models
531 - 1,602 kHz
Antenna Loop antenna
Usable sensitivity
50 dB/m(at 1,000 kHz or 999 kHz)

S/N 54 dB(at 50 mV/m)
Hermonic distortion
0.5 %(50 mV/m, 400 kHz)
Selectivity At 9 kHz : 35 dB
At 10kHz :40 dB
d) You can change the AM tuning scale to 9kHz. After tuning in any AM
station, turn off the receiver. Hold down the TUNING + button and press
the I/Q) button. All preset stations will be erased when you change the
tuning scale. To reset the scale to 10 kHz, repeat the procedure.

Video section
Inputs Video : l Vp-p 75 Q
S-video : Y : 1Vp-p 75 Q
C : 0.286 Vp-p 75 fl
Outputs Video : l Vp-p 75 Q
S-video : Y : 1Vp-p 75 Q
C : 0.286 Vp-p 75 (I

General
System Tuner section :
PLL quarts-locked digital synthesizer system
Preamplifier section :
Low-noise NF type equalizer
Power amplifier section :
Pure-complementary SEPP
Power requirements
USA. Canadian models
120V AC, 60Hz
Australian model
240V AC, 50112
Other model
220 - 230V AC 50/60Hz
Power consumption
STR-DBBO
Canadian :400 VA
Other models :290W
STR-DB830
North American models : 280W
AC outlets
North American models : 2 switched, total 120 W/lA
Other models : I switched, max 100 W
Dimensions 430 X 405 X 160.5 mm
(17 X16 X 6%; in.)
including projecting parts and controls
Mass(ApproX.)
13 kg(28 lb Iloz)
Supplied accessories
- FM wire antenna (1)
- AM loop antenna (1)
- Audio/video/control S connecting cord (1)
- CONTROLAl connecting cord (1)
- FM antenna adapter (1)
STR-DB930, V929X only
' Remote commander RM-LJ302 (remote) (I)
. LR6 (size-AA) alkaline batteries (3)
STR-DB830 only
' Remote commander RM-PP402 (remote) (I)
. LR6 (size-AA) batteries (2)

Design and specifications are subject to change without notice.

MODEL IDENTIFICATION
- BACK PANEL -
I/ /|
|_l |_l
PART NO

MODEL PARTS No.
DB930: US model 4-217-716-0I:I
DB930: Canadian model 4-217-716-1I:I
DB930: Malaysia, Singapore models 4-217-716-2I:I
V929X 4-217-716-3I:I
DB930: Australian model 4-217-716-4I:I
DB930: AEP model 4-217-716-5I:I
DB830: US model 4-217-716-6D
DB830: AEP model 4-217-716»7I:I
