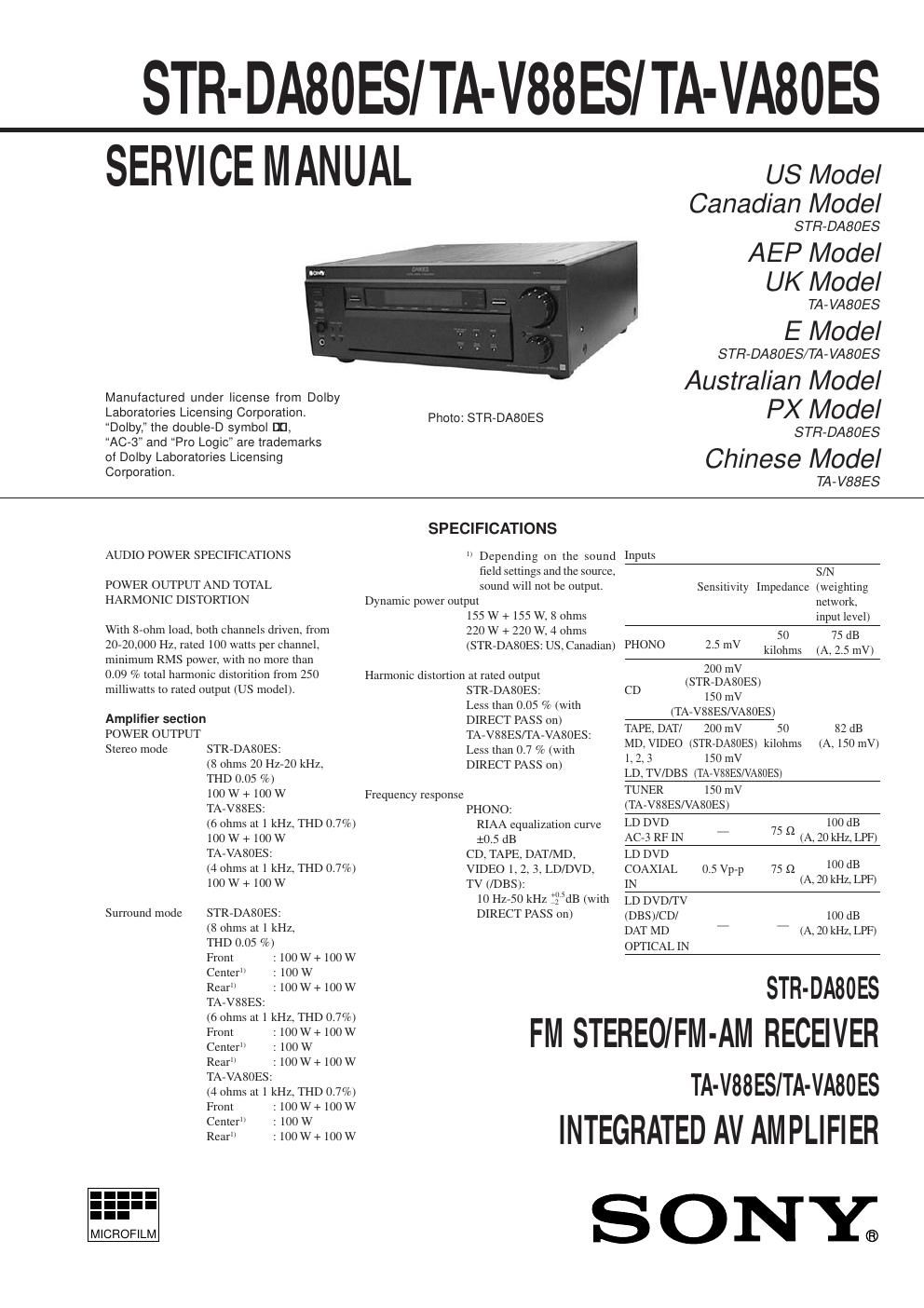

Sony str da 80 es service manual
This is the 66 pages manual for sony str da 80 es service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony str da 80 es service manual (Ocr-read)
Page 1
Ð 2 Ð +0.5 Ð2 Outputs REC OUT: DAT/MD, TAPE Voltage: 200 mV (STR-DA80ES) 150 mV (TA-V88ES/VA80ES) Impedance: 1 kilohm AUDIO OUT: VIDEO 1, 2 Voltage: 200 mV (STR-DA80ES) 150 mV (TA-V88ES/VA80ES) Inpedance: 1 kilohm PRE OUT: Voltage: 2 Vrms Impedance: 1 kilohm PHONES: Accepts low and high impedance headphones BASS BOOST +6 dB at 70 Hz (STR-DA80ES) +10 dB at 70 Hz (TA-V88ES/VA80ES) Digital signal processor section Modulation (A/D conversion) High Density Linear Converter Demodulation (D/A conversion) High Density Linear Converter (Advanced pulse D/A converter) Sampling frequency 48 kHz Surround LFE MIX: MUTE, Ð20 - 0 dB, 0.5 dB step D.RANGE COMP: OFF, 0.1 - 0.9, STD, MAX REAR level: Ð20 - +10 dB, 0.5 dB step CENTER level: Ð20 - +10 dB, 0.5 dB step SUB WOOFER level: Ð20 - +10 dB, 0.5 dB step EFFECT: 21-step adjustable WALL: 17-step adjustable SEAT F/R: 17-step adjustable L/R: 17-step adjustable REBERB time: 17-step adjustable Equalizer BAND: BASS/TREBLE Turnover frequency: Bass: 99 Hz-992 Hz Treble: 1.0 kHz-8.6 kHz Level: ±10 dB, 0.5 dB stepFM tuner section (STR-DA80ES) Tuning range 87.5-108.0 MHz Antenna terminals 75 ohms, unbalanced Sensitivity Mono: 18.3 dBf, 4.5 µV Stereo: 38.3 dBf, 45 µV Usable sensitivity 11.2 dBf, 2 µV (IHF) S/N Mono: 76 dB Stereo: 70 dB Harmonic distortion at 1 kHz Mono: 0.3 % Stereo: 0.5 % Separation 45 dB at 1 kHz Frequency response 30 Hz-15 kHz dB Selectivity 60 dB at 400 kHz AM tuner section (STR-DA80ES) Tuning range With 10 kHz interval: 530-1710 kHz (US and Canadian models 3)) 530-1610 kHz (models for all other countries except for Australia) With 9 kHz interval: 531-1710 kHz (US and Canadian models) 531-1602 kHz (Australian model and models for all other countries 3)) Antenna Loop antenna Usable sensitivity 50 dB/m (at 1,000 kHz or 999 kHz) S/N 54 dB (at 50 mV/m) Harmonic distortion 0.5 % (50 mV/m, 400 kHz) Selectivity At 9 kHz: 35 dB At 10 kHz: 40 db 3)You can change the AM tuning interval to 9 kHz (US and Canadian models) or to 10 kHz (models for all other countries except for Australia). After tuning in any AM station, turn off the receiver. Hold down the PRE- SET TUNING + button and press the POWER button. All preset stations will be erased when you change the interval. To re- set the interval to 10 kHz (or 9 kHz), repeat the procedure. Video section Inputs VIDEO: 1 Vp-p 75 ohms S VIDEO: Y: 1 Vp-; 75 ohms C: 0.286 Vp-p 75 ohmsOutputs VIDEO: 1 Vp-p 75 ohms S VIDEO: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms General System Tuner section: PLL quartz-locked digital synthesizer system (STR-DA80ES) Preamplifier section: Low-noise NF type equalizer Power amplifier section: Pure-complementary parallel P.P. Power requirements US and Canadian models: 120 V AC, 60 Hz Australian model: 240 V AC, 50 Hz European models: 230 V AC, 50 Hz Other models: 120/220/240 V AC selectable, 50/60 Hz Power consumption STR-DA80ES: US model: 340 W Canadian model: 500 VA Australian model: 380 W Other models: 380 W TA-V88ES: 370 W TA-VA80ES: 380 W AC outlets STR-DA80ES: US and Canadian models: 2 switched, total 120 W Australian model: 1 switched, maximum 100 W Other models: 2 switched, total 100 W TA-V88ES/VA80ES: 1 switched, maximum 100 W Dimensions 430 ´ 160 ´ 435 (440 4)) mm (17 ´ 6 3/8 ´ 17 1/4 (17 3/8) inches) including projecting parts and controls 4) When the front cover is open Mass (Approx.) 15.9 kg (35 Ib 1 oz) (STR-DA80ES) 15.6 kg (TA-V88ES/VA80ES) Supplied accessories FM wire antenna (1) (STR-DA80ES) AM loop antenna (1) (STR-DA80ES) Remote commander RM-P501 (remote) (1) Size AA (R6) batteries (2) Design and specifications are sbuject to change without notice.
Page 2
Ð 3 Ð TABLE OF CONTENTS 1. GENERAL ................................................................... 4 2. DISASSEMBLY .......................................................... 7 3. ELECTRICAL ADJUSTMENTS ......................... 9 4. DIAGRAMS 4-1. IC Pin Function Description ............................................ 10 4-2. Schematic Diagram Ð DISPLAY Section Ð .................... 24 4-3. Printed Wiring Boards Ð DISPLAY Section Ð ................ 29 4-4. Schematic Diagram Ð VIDEO Section Ð ......................... 33 4-5. Printed Wiring Boards Ð VIDEO Section Ð .................... 37 4-6. Schematic Diagram Ð INPUT/TUNER/POWER Section Ð ............................. 41 4-7. Printed Wiring Boards Ð INPUT/TUNER/POWER Section Ð ............................. 45 4-8. Schematic Diagram Ð DIGITAL Section Ð ...................... 50 4-9. Printed Wiring Boards Ð DIGITAL Section Ð ................ 55 4-10. Schematic Diagram Ð AMP/OUTPUT Section Ð ............ 59 4-11. Printed Wiring Boards Ð AMP/OUTPUT Section Ð ....... 63 5. EXPLODED VIEWS ................................................ 69 6. ELECTRICAL PARTS LIST ................................ 74 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY. MODEL IDENTIFICATION Ð BACK PANEL Ð STR-DA80ES US Model : 373-3 ¹ STR-DA80ES Canadian Model : 373-4 ¹ STR-DA80ES Australian Model : 373-5 ¹ STR-DA80ES E, PX Model : 373-6 ¹ TA-V88ES Chinese Model : 374-4 ¹ TA-VA80ES AEP, UK, German, EE, CIS Model : 374-0 ¹ TA-VA80ES E, Malaysia, Singapore Model : 374-3 ¹ SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indica- tion is 0.75 V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 k W 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground 4-991-
