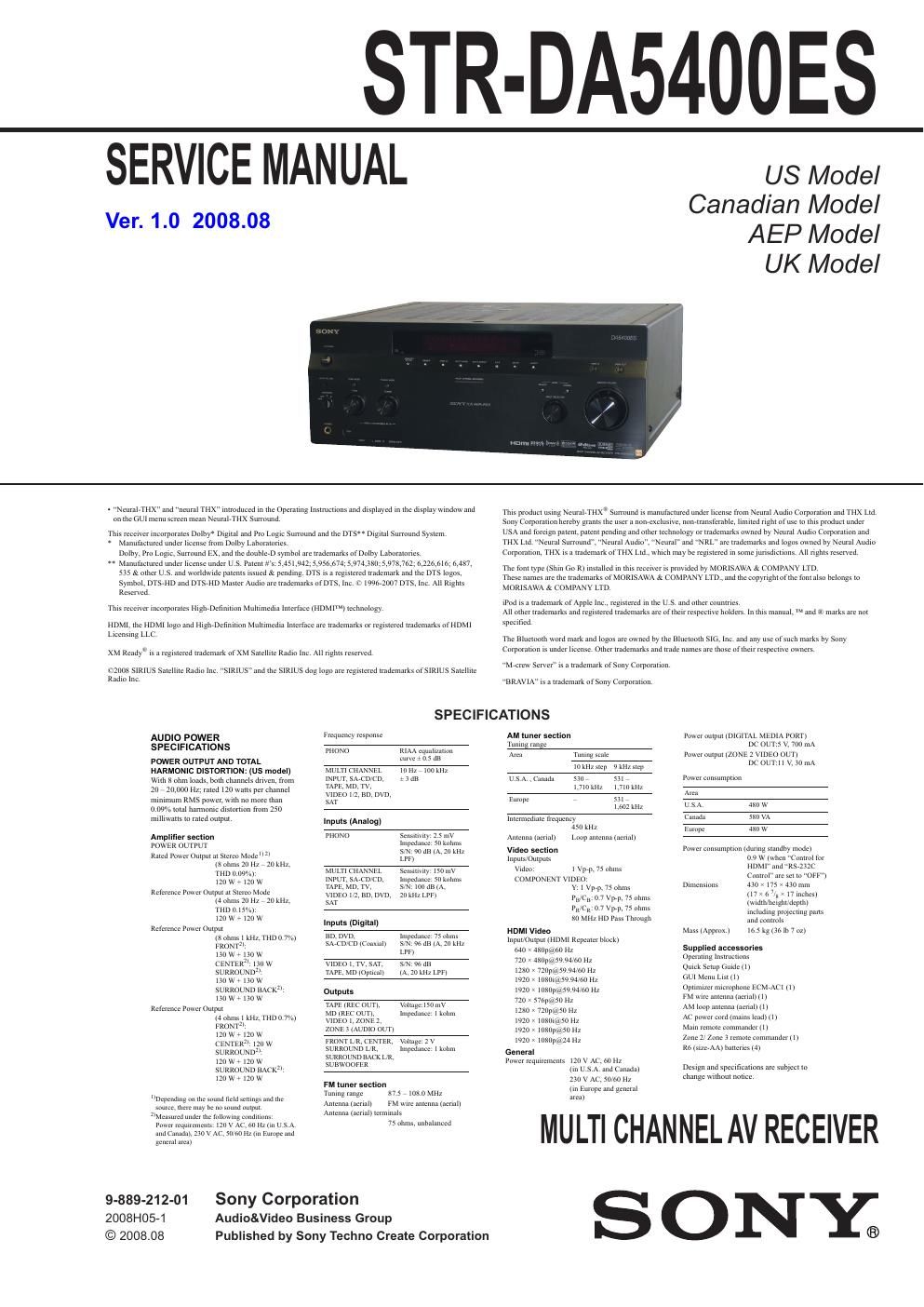

Sony str da 5400 es service manual

Page 2

STR-DA5400ES

NOTES ON CHIP COMPONENT REPLACEMENT

- Never reuse a disconnected chip component.

- Notice that the minus side ofa tantalum capacitor may be dam»
aged by heat.

SAFETY CHECK-OUT

After correcting the original service problem) perform the follow-
ing safety check before releasing the set to the customer:

Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage.

Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microamperes.).

Leakage current can be measured by any one ofthree methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for thisjob.

3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 VAC range are suitable. (See
Fig. A)

To Exposed Metal
Parts on Set

A C
/ voltmeter
(0. 75 V)

0.15 pF '-

§ 1.5 kn

_7_ Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.

SAFETY-RELATED COMPONET WARNING!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A SUR
LES DIAGRAMMES SCHEMATIQUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE FONC-
TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIECES SONY DONT LES NUMEROS SONT DON-
NES DANS CE MANUEL OU DANS LES SUPPLEMENTS
PUBLIES PAR SONY.

2

3-1.
3-2.
3-3.
3-4.
3-5.
3-6.

3-8.
3-9.
3-10.

6-10.
6-11.

6-12.
6-13.

6-14.

6-15.
6-16.
6-17.
6-18.
6-19.
6-20.
6-21.

6-22.
6-23.
6-24.

6-25.
6-26.
6-27.
6-28.
6-29.

6-30.

6-31.
6-32.
6-33.
6-34.
6-35.

TABLE OF CONTENTS

SERVICING NOTES ..

GENERAL .................................................................. 10

DISASSEMBLY
Disassembly Flow
Case .....................
Tuner (FM/AM), SPTM Board .........
DSP/DIGITAL/CIS/CONTROL Boards

16
17

D VIDEO/DMPORT Boards

Front Panel Block ................

A-VIDEO Board .

ANALOG Boar

Heat Sink Block ..

Power Transformer (T1), E-VOL/MAIN Boards .......... 20
TEST MODE ............................................................ 21
ELECTRICAL ADJUSTMENTS ........................ 25
DIAGRAMS

Block Diagram - CONTROL Section - ........................... 27
Block Diagram - DSP Section - ......... 28
Block Diagram - DIGITAL AUDIO Section - 29
Block Diagram - HDMI Section (1/2) - 30
Block Diagram - I-IDMI Section (2/2) - 31
Block Diagram - VIDEO PROCESS Section 32
Block Diagram - ANALOG AUDIO Section (1/2) - 33
Block Diagram - ANALOG AUDIO Section (2/2) - 34
Block Diagram - POWER AMP Section - 35
Block Diagram - VIDEO Section - ....... 36
Block Diagram - PANEL, CIS, XM/

SIRIUS RECEIVER, DMPORT Section 37
Block Diagram - POWER SUPPLY Section - 38
Printed Wiring Board

- MAIN Board (Component Side) - ................................ 40
Printed Wiring Board

- MAIN Board (Conductor Side) - .................................. 41
Schematic Diagram - MAIN Board (1/3) -.. 42
Schematic Diagram - MAIN Board (2/3) 43
Schematic Diagram - MAIN Board (3/3) .. 44
Schematic Diagram - DIGITAL Board (1/3) - 45
Schematic Diagram - DIGITAL Board (2/3) - 46
Schematic Diagram - DIGITAL Board (3/3) - ................ 47
Printed Wiring Board

- DIGITAL Board (Component Side) - ........................... 48
Printed Wiring Board

- DIGITAL Board (Conductor Side) - 49
Printed Wiring Board

- DSP Board (Component Side) - ................................... 50
Printed Wiring Board

- DSP Board (Conductor Side) - ........ 51
Schematic Diagram - DSP Board (1/4) - 52
Schematic Diagram - DSP Board (2/4) 53
Schematic Diagram - DSP Board (3/4) 54
Schematic Diagram - DSP Board (4/4) 55
Printed Wiring Board

- ANALOG Board (Component Side) - .......................... 56
Printed Wiring Board

- ANALOG Board (Conductor Side) - ......... 57
Schematic Diagram - ANALOG Board (1/4) - 58
Schematic Diagram - ANALOG Board (2/4) - 59
Schematic Diagram - ANALOG Board (3/4) - 60
Schematic Diagram - ANALOG Board (4/4) - 61
Printed Wiring Board - E-VOL Board - .......................... 62
