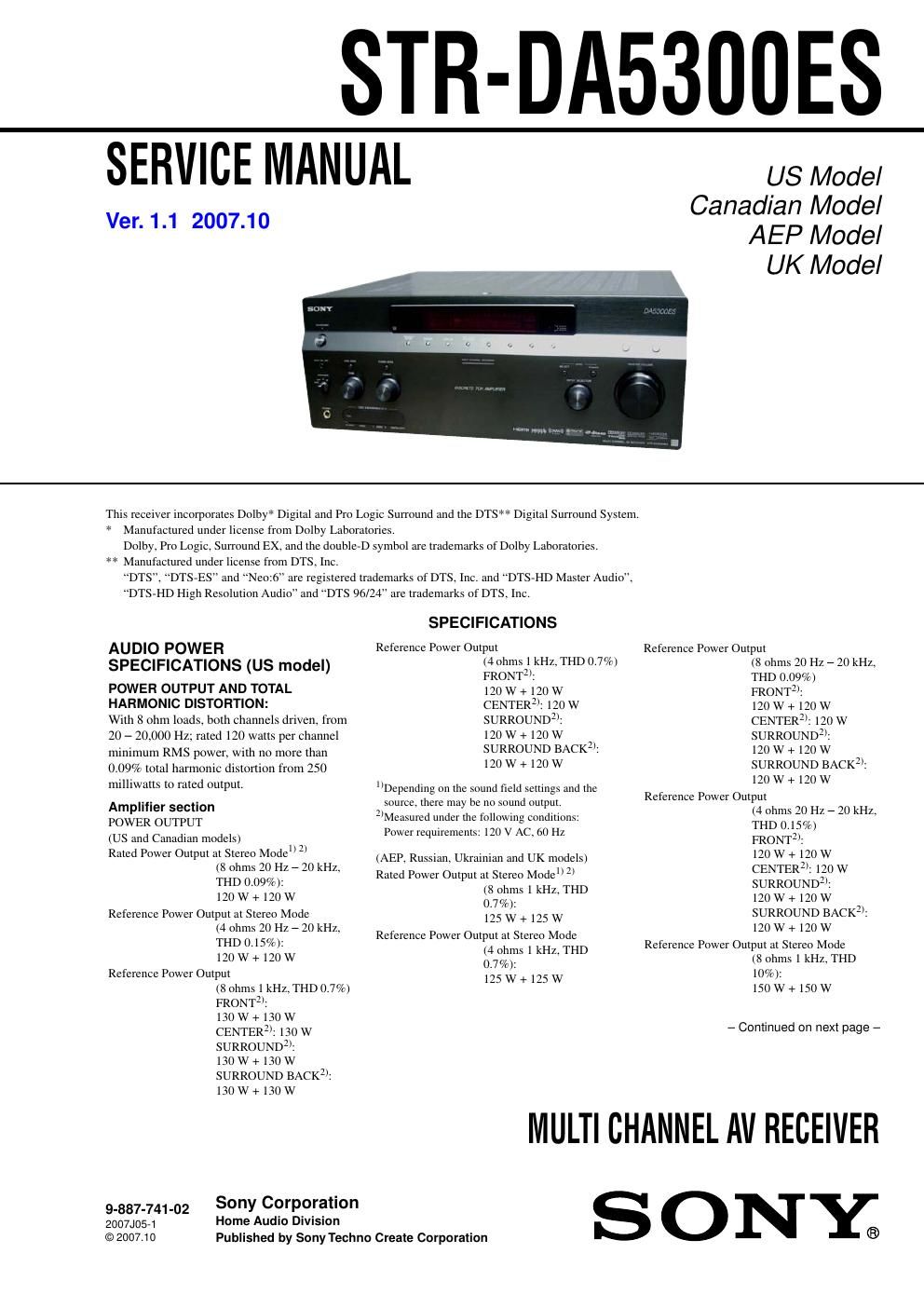

Page 1

STR-DA5300ES

SERVICE MANUAL

Ver. 1.1 2007.10

US Model
Canadian Model
AEP Model

UK Model

This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTSW Digital Surround System.
Manufactured under license from Dolby Laboratories.

*

Dolby. Pro Logic, Surround EX, and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license from DTS, lnc.

"DTS", DTS-ES and Neo:6" are registered trademarks of DTS, Inc. and DTS-HD Master Audio".

"DTS-HD High Resolution Audio" and DTS 96/24 are trademarks of DTS, Inc.

AUDIO POWER
SPECIFICATIONS (us model)

POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:

With 8 Ohm loads, both channels driven, froth
20 - 20,000 Hz; rated 120 watts per channel
minimum RMS power, with no more than
0.09% total harmonic distortion from 250
milliwatts to rated output.

Amplifier section
POWER OUTPUT
(US and Canadian models)
Rated Power Output at Stereo Model) 2)
(8 ohms 20 Hz 7 20 kHz.
THD 0.09%):
120 W + 120 W
Reference Power Output at Stereo Mode
(4 ohms 20 Hz 7 20 kHz,
THD 0.15%):
120 W + 120 W
Reference Power Output
(8 ohms 1kHz,'lHD 0.7%)
FRONTZ):
130 W + 130 W
CENTER: 130 W
SURROUND:
130 W + 130 W
SURROUND BACK:
130 W + 130 W

9-887-741-02
2007.10571
© 2007.1 0

Home Audio Division

Sony Corporation

Published by SonyTechno Create Corporation

SPECIFICATIONS

Reference Power Output
(4 ohms 1 kHz, THD 0.7%)
FRONT:
120 W + 120 W
CENTERZ): 120 w
SURROUND:
120 W + 120 W
SURROUND BACK:
120 W + 120 W

Depending on the sound field Settings and the
source, there may be no sound output.

2lMeasured under the following conditions:
Power requirements: I20 V AC, 60 Hz

(AEP, Russian. Ukrainian and UK models)
Rated Power Output at Stereo Model) 2)
(8 ohms 1 kHz, THD
0.7%):
125 W + 125 W
Reference Power Output at Stereo Mode
(4 ohms 1 kHz, THD
0.7%):
125 W + 125 W

Reference Power Output
(8 ohms 20 Hz , 20 kHz.
THD 0.09%)
FRONTZ):
120 W + 120 w
CENTER: 120 W
SURROUND:
120 W + 120 w
SURROUND BACK;
120 W + 120 W
Reference Power Output
(4 ohms 20 Hz 7 20 kHz,
THD 0.15%)
FRONT:
120 W + 120 W
CENTER: 120 W
SURROUND;
120 w + 120 W
SURROUND BACKZ':
120 W + 120 W

Reference Power Output at Stereo Mode

(8 ohms 1 kHz. THD
10%):
150 W + 150 W

- Continued on next page -

MULTI CHANNEL AV RECEIVER

SONY.
