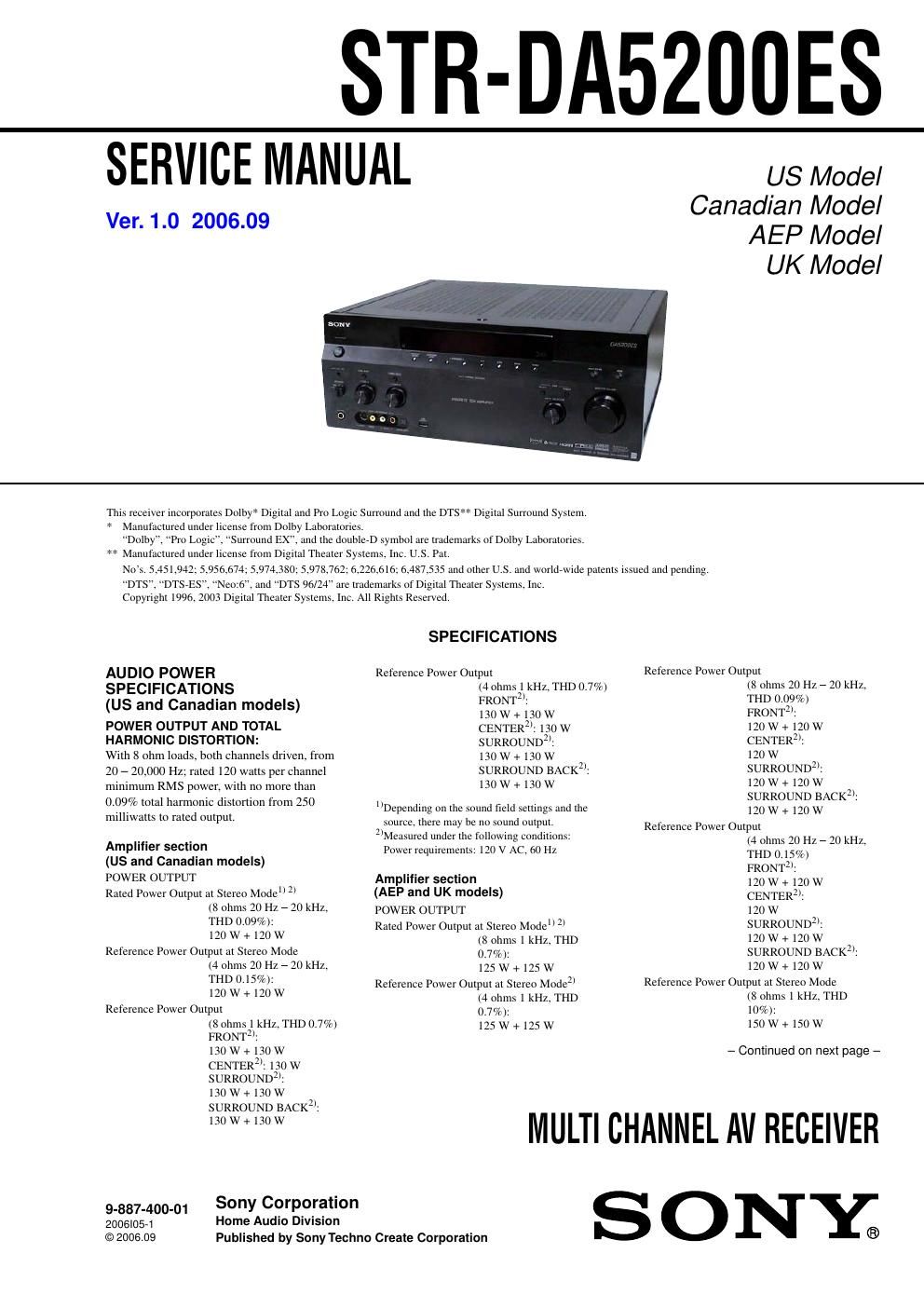

STR-DA5200ES

SERVICE MANUAL

Ver. 1.0 2006.09

US Model
Canadian Model
AEP Model

UK Model

This receiver Incorporates Dolby* Dlgltal and Pro Logic Surround and the DTS** Digital Surround System.

.1:

Dolby", "Pro Logic",

Manufactured under license trom Dolby Laboratories.
Surround EX", and the doltblerD symbol are trademarks of Dolby Laboratories.

** Manufactured under license from Digital Theater Systems. Inc. U.S. Pat

No's. 5,451,942'
DTS, DTSVES ,

56,674 5.974380. 5,978.76

AUDIO POWER
SPECIFICATIONS
(US and Canadian models)

POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:

With 8 ohm loads, both channels driven, from
20 - 20,000 Hz; rated 120 watts per channel
minimum RMS power, with no more than
0.09% total harmonic distortion from 250
milliwatts to rated output.

Amplifier section
(US and Canadian models)
POWER OUTPUT
Rated Power Output at Stereo Mode17 2)
(8 ohms 20 Hz 7 20 kHz,
THD 0.09%):
120 W + 120 W
Reference Power Output at Stereo Mode
(4 ohms 20 Hz 7 20 kHz,
THD 0.15%):
120 W + 120 W
Reference Power Output
(8 ohms 1 kHz. THD 0.7%)
FRONT:
130 W + 130 W
CENTER: 130 w
SURROUND:
130 W + 130 W
SURROUND BACK:
130 W + 130 W

SPECIFICATIONS

Reference Power Output
(4 ohms 1 kHz, THD 0.7%)
FRONT:
130 w + 130 w
CENTER: 130 w
SURROUND:
130 w + 130 w
SURROUND BACK:
130 w + 130 w

Depending on the sound ﬁeld settings and the
source, there may be no sound output.

Measured under the following condtttons:
Power requirements: 120 v AC, 601-11

Ampliﬁer section

(AEP and UK models)

POWER OUTPUT

Rated Power Output at Stereo Mode 2)
(8 ohms 1 kHz, THD
0.7%):
125 W + 125 W

Reference Power Output M Stereo Mode
(4 ohms 1 kHz, THD
0.7%):
125 W + 125 W

,-26,616; 6,487.535 and other U.S. and worldwide patents Issued and pendmg.
Neo:6 , and "DTS 96/24" are trademarks of Dtgital Theater Systems. Inc.

Reference Power Output
(8 ohms 20 HA , 20 kHz.
THD 0.09%)
FRONT:
120 w + 120 w
CENTER:
120 w
SURROUND:
120 w + 120 w
SURROUND BACK:
120 w + 120 w
Reference Power Output
<4 ohms 20 Hz , 20 kHz.
THD 0.15%)
FRONT:
120 w + 120 w
CENTER:
120 w
SURROUND:
120 w + 120 w
SURROUND BACK:
120 w + 120 w
Reference Power Output at Stereo Mode
(8 ohms 1 kHz, THD
10%):
150 w + 150 w

- Continued on next page -

MULTI CHANNEL All RECEIVER
