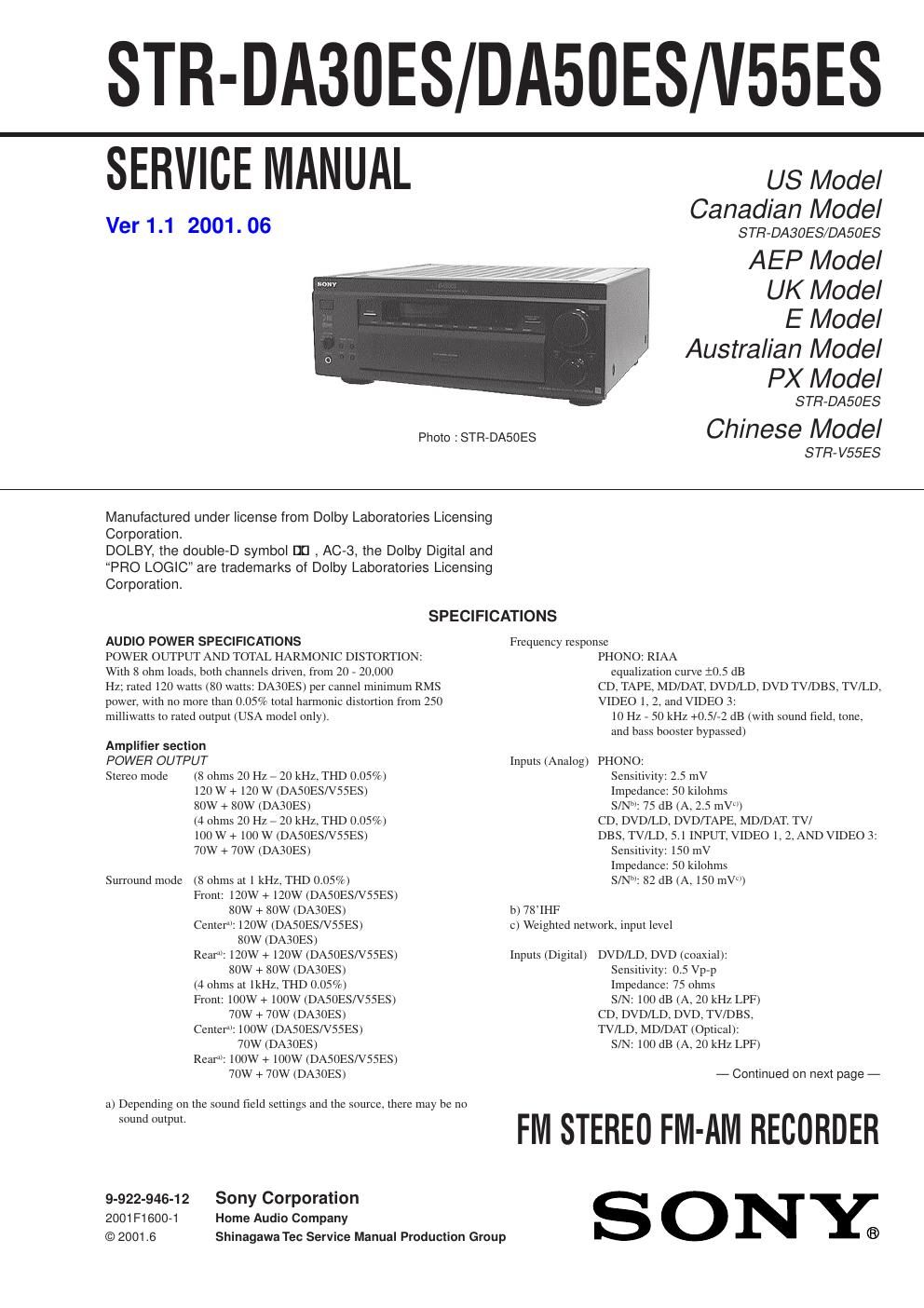

Sony str da 50 es service manual

Page 2

Outputs (Analog)
TAPE, MD/DAT (REC OUT),
VIDEO 1, 2 (AUDIO OUT):
Voltage: 150 mV,
Impedance: 10 kilohms
FRONT L/R, CENTER, REAR L/R
WOOFER:
Voltage: 2 V
Impedance: I kilohms
PHONES:
Accepts low - and high-impedance headphones

Outputs (Digital)
MD/DAT (Optical)

BASS BOOST +6 dB at 70 Hz

Sampling Frequency
48 kHz

EQ BASS: 100 Hz ~ 1.0kHz (21 steps)
MID: 500 Hz ~ 5.0kHz (21 steps)
TREBLE: 1.0 kHz ~ 10kHz (21 steps)
Gain levels: :10 dB, 1 dB step

FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna terminals
75 ohms, unbalanced
Mono: 18.3 dBf, 4.5 uV
Stereo: 38.3 dBf, 45 pV
Usable sensitivity

11.2 dBf, 2 [JV (IHF)
S/N Mono: 76 dB

Stereo: 70 dB
Harmonic distortion at 1 KHz

Mono: 0.3%

Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response
30 Hz - 15 kHz +0.5/-2 dB
60 dB at 400 kHz

Sensitivity

Selectivity

AM tuner section
Tuning range With 10-kHz tuning scale:
530 - 1710 kHz (USA/Canada)
530 - 1610 kHz (E)m
With 9-kHz tuning scale:
531- 1710 kHz (USA/Canada)
531 - 1602 kHz (all other countries)m
Antenna Loop antenna
Usable sensitivity
50 dB/m (at 1,000 kHz or 999 kHz)
S/N 54 dB (at 50 mV/m)
Harmonic distortion
0.5 % (50 mV/m, 400 kHz)
At 9 kHz: 35dB
At 10 kHz: 40 dB

Selectivity

d) You can change the AM tuning scale to 9 kHz (USA/Canada) or 10
kHz (all other countries). After tuning in any AM station, turn off the
receiver. Hold down the TUNING + button and press the 1/u button.
All preset stations will be erased when you change the tuning scale. To
reset the scale to 10 kHz (or 9 kHz). repeat theprocedure.

Video section

Inputs S.VIDEO Y: 1 Vp-p 75 ohms
S.VIDEO C: 0.286 Vp-p 75 ohms
Outputs S.VIDEO Y: 1 Vp-p 75 ohms

S.VIDEO C: 0.286 Vp-p 75 ohms

General
System Tuner section:
PLL quartz-locked digital synthesizer system
Preamplifier section: Low-noise NF type equalizer
Power amplifier section: Pure-complementary SEPP
Power requirements
USA, Canadian: 120 V AC, 60 Hz
E, Saudi Arabia, PX: 120 or 220 or 240 V AC, 50/60 Hz
(Adjustable with voltage selector)
Other countries: 230 V 50/60 Hz
Power consumption
DASOES USA, E: 380 W
DA50ES Canadian: 550 VA
DA30ES USA: 280 W
DA30ES Canadian: 400 VA
Other countries: 420 W
2 switched, total 100 W
430 x 160 x 410 mm (17 X 6VK >< 16ljinches)
including projecting parts and controls
Mass (Approx.) DASOES/V55ES: 16 Kg
DASOES: 14 Kg
Supplied Accessories
FM wire antenna (1)
AM loop antenna (1)
Remote commander RM-TP501 (remote) (I)
LR6 (size-AA) alkaline batteries (4)

AC outlets
Dimensions

Design and specifications are subject to change without notice.

MODEL IDENTIFICATION
- BACK PANEL -
I/ /|
|_| |_|
PART NO.
MODEL PARTS No.
DASOES: US model 4-900-653-0D
DASOES: Canadian model 4-900-653-1|:I
DA50ES: AEP, UK, German, East European, 4-900»653-2I:I
Australian models
DA50ES: E, Saudi Arabia. PX models 4-900»653-3I:I
DASOES: Malaysia, Singapore models 4-900-653-4EI
V55ES: Chinese model 4-900»653-5I:I
DASOES: US model 4-900-653-6D
DA30ES: Canadian model 4-900-653-7EI
